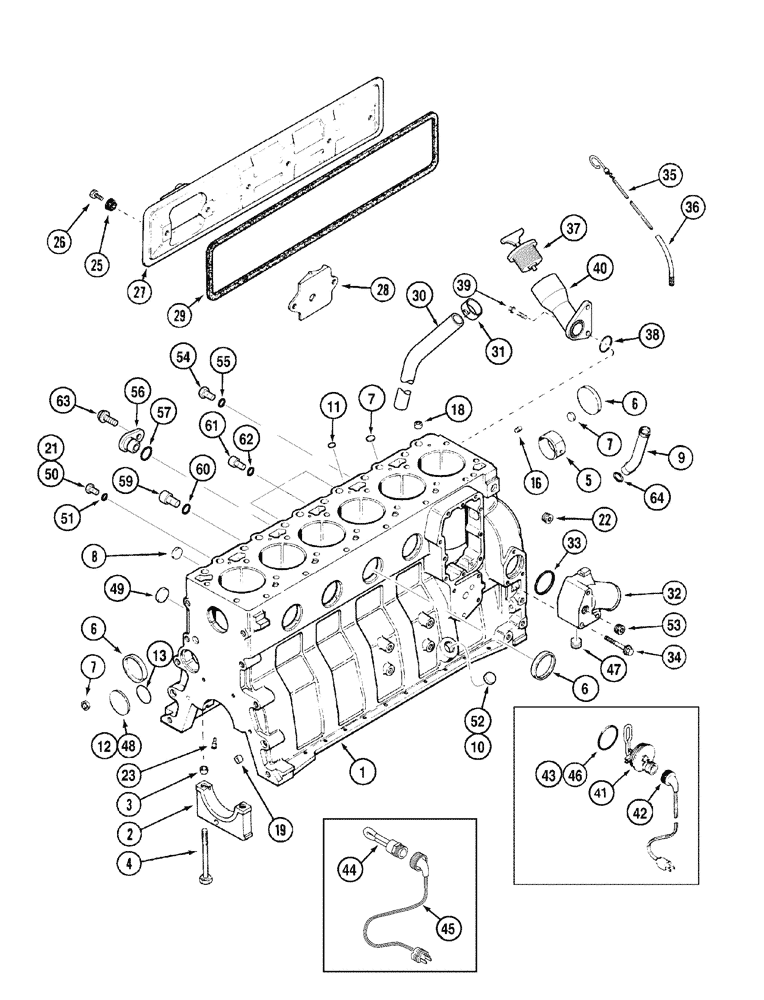

Запчасти Case IH MX120 (02-26) - CYLINDER BLOCK (02) - ENGINE

1

J933645

SKELETON ENGINE

Short, Includes 2 - 5,7,8,11 - 19,23,48,50 - 57

1шт.

1

JR933645

REMAN-SHORT ENGINE

Remanufactured

1шт.

1

JC933645

CORE-ENGINE

Return Part Number, Short block

1шт.

2

J903492

BEARING CAP

7шт.

3

J900068

BEARING WASHER

18 mm OD

14шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

14шт.

5

REF

INSTRUCTION

Bushing, See Fig. 2-25

1шт.

6

A77782

PLUG

58 mm

6шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

9

J931973

TUBE,0.875" OD

4шт.

10

J920706

PLUG

22 mm

1шт.

J933220

PACKAGE,SERVICE

Hardware, Includes 11,13 - 19,23,47 - 56,63

1шт.

11

J900955

PLUG

10 mm OD, Dipperstick

1шт.

12

41-3038

PLUG,Exp, 2 3/8"

1шт.

13

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

18

J902343

DOWEL

16 mm OD

2шт.

19

J900068

BEARING WASHER

18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

22

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

1шт.

23

J937214

NOZZLE CAP

6шт.

25

J900267

SEAL

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

27

J927913

COVER

1шт.

28

J907586

BAFFLE

1шт.

29

J928832

GASKET

1шт.

30

246953A1

HOSE,19.05 mm ID x 620.00 mm

Ventilation

1шт.

31

J904230

CLAMP,25.4mm

1шт.

32

J934877

HYD CONNECTOR

1шт.

33

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

34

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

35

J918245

DIPSTICK

1шт.

36

J918246

TUBE

1шт.

37

A77424

FILLER CAP

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

1шт.

39

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

40

J911696

TUBE,38.1 - 52.39 mm OD x 102.9, 56.5 mm L

Oil Filler

1шт.

196803A1

KIT

120V/750w, Heating Coil, N.A. Only, Consists of 41,42,43

1шт.

309651A1

KIT

120V/750w, Optional, N.A. Only, Block Heater, Consists of 44,45

1шт.

41

J916127

RESISTOR

120V/750w, N.A. Only

1шт.

41

NSS

NOT SOLD SEPARAT

240V/750w,Europe Only

1шт.

42

J905114

ELECTRIC CABLE

1829 mm (72 in),Europe Only,240V/750w

1шт.

42

196466A1

ELECTRIC CABLE

1829 mm (72 in),N.A. Only,120V/750w

1шт.

43

J910517

O-RING

1шт.

124340A1

KIT

240V/750w, Heating Coil, Europe Only, Consists of 41,42,46

1шт.

309652A1

KIT

240V/750w, Optional, Europe Only, Block Heater, Consists of 44,45

1шт.

44

J916662

UNIT HEATER

240V/750w,Europe Only,

1шт.

44

J940911

HEATER

120V/750w,N.A. Only

1шт.

45

J905114

ELECTRIC CABLE

1829 mm (72 in),Europe Only,240V/750w

1шт.

45

196466A1

ELECTRIC CABLE

1829 mm (72 in),N.A. Only,120V/750w

1шт.

46

J910517

O-RING

1шт.

47

A77429

PLUG

1/2 PT

1шт.

48

41-3038

PLUG,Exp, 2 3/8"

1шт.

49

J900958

PLUG

32 mm OD

1шт.

50

J678923

PLUG,M10 x 1

Includes 51

3шт.

51

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

52

J920706

PLUG

22 mm

1шт.

53

A77505

PLUG

3/4 PT

1шт.

54

J678921

PLUG

Includes 55

1шт.

55

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

56

J932296

PLUG

Includes 57

1шт.

57

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

59

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 60

1шт.

60

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

61

233426A1

PLUG,M10 x 1 ORB

Includes 62

3шт.

62

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

3шт.

63

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

64

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.
