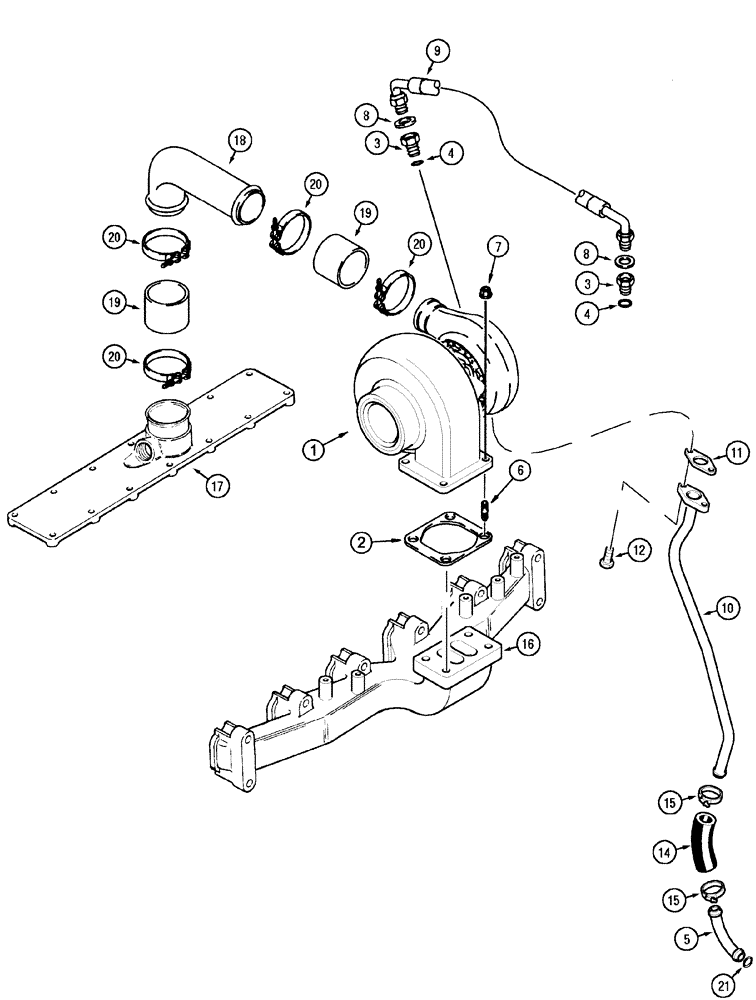

Запчасти Case IH MX120 (02-19) - TURBOCHARGER AND CONNECTIONS (02) - ENGINE

1

J802770

TURBOCHARGER

See Fig. 2-20

1шт.

1

JR802770

REMAN-TURBOCHARGER

MX100, MX110, MX120, MX135

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

2

J919369

GASKET,0.5mm Thk

1шт.

3

J919687

HYD CONNECTOR

Includes 4

2шт.

4

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

5

J931973

TUBE,0.875" OD

1шт.

6

J818823

STUD

M10 x 42

4шт.

7

J818824

FLANGE NUT

M10

4шт.

8

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

9

J920603

HOSE

Supply

1шт.

10

J944048

TUBE,0.875" OD

Drain

1шт.

11

J285747

GASKET

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

14

J931970

HOSE,22.22 mm ID x 76.20 mm

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

16

J931745

MANIFOLD

Exhaust, See Fig. 2-18

1шт.

17

J904862

COVER

Intake, See Fig. 2-18

1шт.

18

J931803

TUBE,63.5 mm OD x 282.11 mm L

1шт.

19

J916529

TRANSMISSION SLEEVE

76 mm (3 in)

2шт.

20

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

4шт.

21

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.
