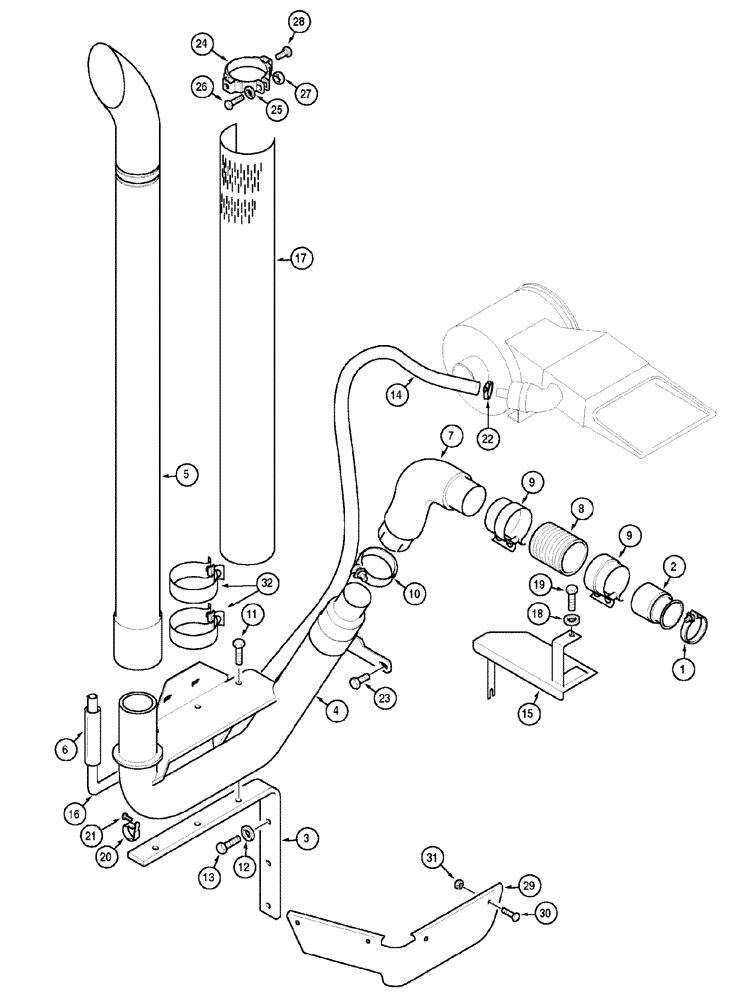

Запчасти Case IH MX120 (02-13) - VERTICAL EXHAUST - WITH CAB (02) - ENGINE

1

A170467

CLAMP,72mm ID

1шт.

2

196342A1

ADAPTER

1шт.

3

199326A1

SUPPORT

1шт.

4

252530A2

PIPE

1шт.

5

220159A2

MUFFLER,Aspirated

PIPE, EXHAUST , With Aspirator

1шт.

5

220158A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , Without Aspirator

1шт.

6

184968A1

HOSE

With Aspirator

1шт.

7

184967A1

TUBE,90.043 mm ID, 240, 165 mm Length

1шт.

8

195773A2

PIPE

1шт.

9

197008A1

CLAMP,90.48mm ID

2шт.

10

180300A1

CLAMP,88.9mm

1шт.

11

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

5шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

14

239875A1

HOSE,31.75mm ID x 1600mm L, SAE 20R4

With Aspirator

1шт.

15

224832A4

GUARD

1шт.

16

310520A1

TUBE

With Aspirator

1шт.

17

222763A2

GUARD

1шт.

18

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

20

515-27317

CLAMP,1 1/4", 5/16" Bolt

With Aspirator

2шт.

21

905-8016

BOLT,Hex Flg, M8 x 16mm

With Aspirator

2шт.

22

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

With Aspirator

4шт.

22

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

With Aspirator

4шт.

23

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

24

124420A1

CLAMP

Europe Only

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

26

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

28

243675A1

FLANGE BOLT

2 x 12 mm

4шт.

29

244805A3

PANEL

Lower Right

1шт.

30

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

4шт.

31

96900C1

SPRING NUT,U, #10-16, Panel type

4шт.

32

368102A1

CLAMP

4.5 in.

1шт.
