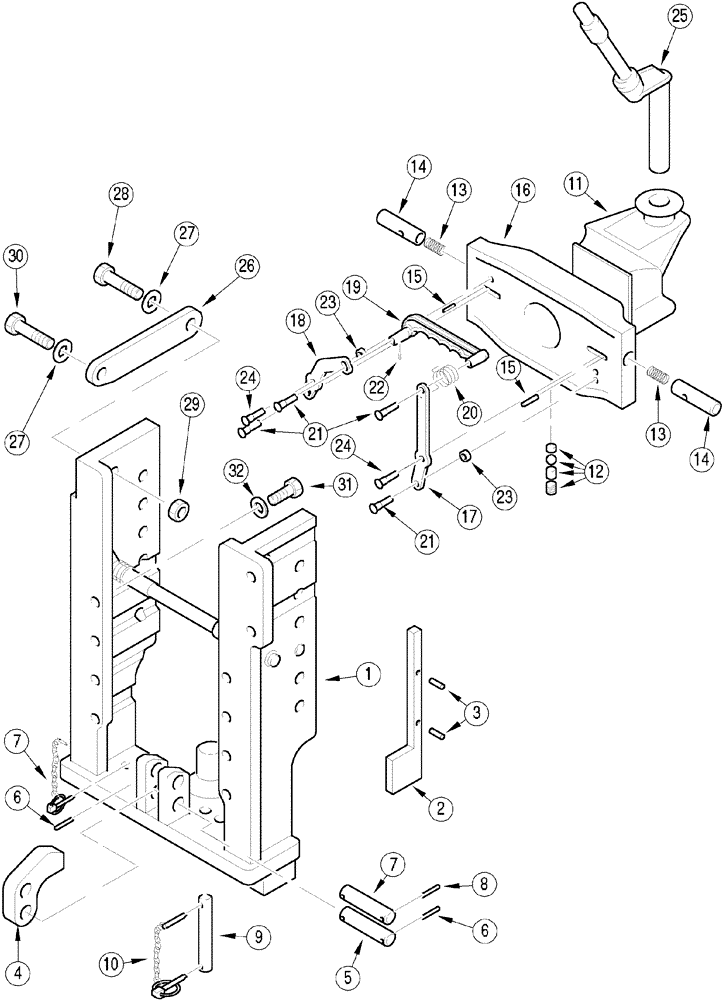

Запчасти Case IH MX120 (09-76) - TRAILER HITCH PITON FIXE (09) - CHASSIS/ATTACHMENTS

279627A1

HITCH ASSY

Consists Of 1 - 27

1шт.

1

279632A1

SUPPORT ASSY.

Includes 2,3

1шт.

2

259338A1

SUPPORT ASSY.

2шт.

3

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

4шт.

4

141035A2

LATCH

1шт.

5

141036A1

PIN

Includes 6

1шт.

6

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

2шт.

7

141038A1

PIN

Includes 8

1шт.

8

NSS

NOT SOLD SEPARAT

Pin, Roll

1шт.

9

139129A2

HITCH PIN,19mm OD x 136mm L

Includes 10

2шт.

10

NSS

NOT SOLD SEPARAT

Chain Assy

1шт.

11

279638A1

TRAILER HITCH

Consists Of 12 - 24

1шт.

12

177336A1

BRAKE ASSY.

1шт.

195132A1

PIN

Consists Of 13 - 15

1шт.

13

141013A1

SPRING

2шт.

14

141014A1

PIN

2шт.

15

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

2шт.

16

275588A1

LARGE PLATE

PLATE, LARGE

1шт.

175101A1

LEVER

Consists Of 17 - 24

1шт.

17

NSS

NOT SOLD SEPARAT

Bar

1шт.

18

NSS

NOT SOLD SEPARAT

Bar

1шт.

19

NSS

NOT SOLD SEPARAT

Handle Assy

1шт.

20

NSS

NOT SOLD SEPARAT

Spring

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Cross

4шт.

22

738-1516

LOCK PIN,M5 x 16, Slotted

4шт.

23

NSS

NOT SOLD SEPARAT

Spacer Assy

2шт.

24

NSS

NOT SOLD SEPARAT

Pin, Cross

2шт.

25

1974073C1

CLEVIS PIN

1шт.

26

175151A1

LARGE PLATE

PLATE, LARGE , 241 mm

1шт.

27

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

28

628-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

29

829-1420

NUT,M20, Cl 10

1шт.

30

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

1шт.

31

962-16050

HEX SOC SCREW,M16 x 50mm, Cl 10.9

10шт.

32

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.
