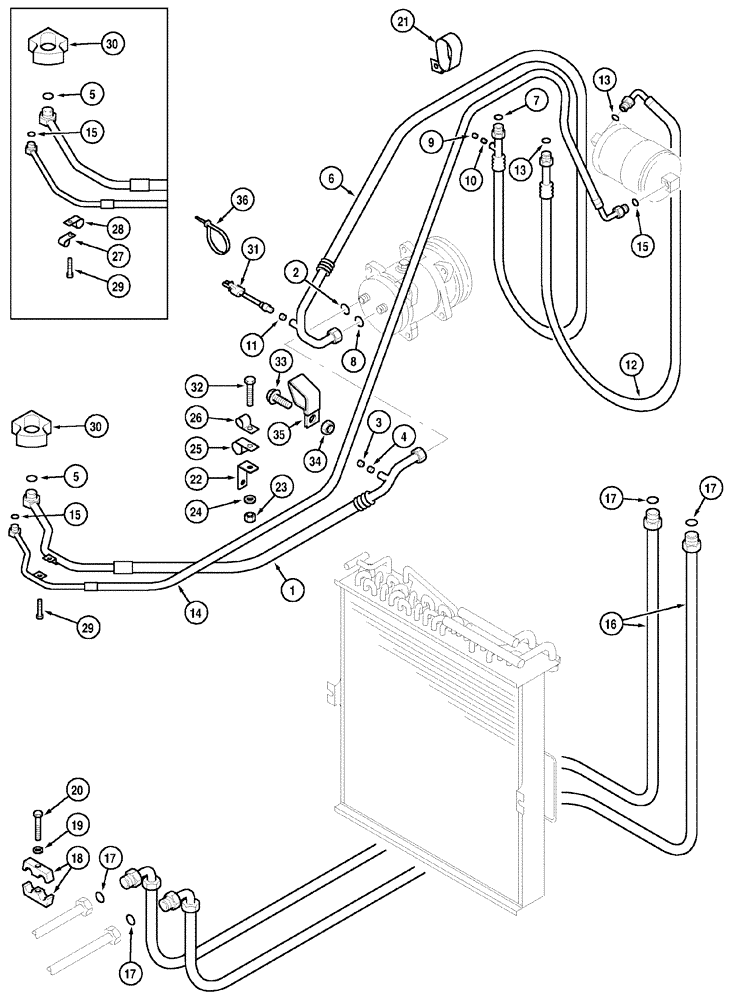

Запчасти Case IH MX120 (02-09) - AIR CONDITIONING PIPES (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
236064A2
A/C HOSE
Includes 2 - 5
1шт.
5
T103182
O-RING,1.78mm Thk x 27mm ID
1шт.
7
128484A1
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro
7/16 ID x 1/16
1шт.
9
122081A1
FITTING,M10 x 1.25 x 26.43mm L
1шт.
11
122554A1
CAP
1шт.
12
183028A1
HOSE ASSY.
Includes 13
1шт.
14
236065A2
A/C HOSE
Includes 15
1шт.
16
221081A3
HOSE,15.88mm ID x 2575mm L, SAE 100R6
2шт.
17
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
4шт.
18
1546026C1
CLAMP
2 piece
1шт.
19
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
1шт.
20
814-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8
1шт.
21
A169433
CABLE TIE,304.8mm L
12 in
6шт.
22
224512A1
SUPPORT
If equipped
1шт.
23
825-1408
NUT,M8, Cl 8
If equipped
2шт.
24
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
If equipped
2шт.
25
515-23238
CLAMP,15/16", Insul, 3/8" Bolt
If equipped
1шт.
26
515-22159
CLAMP,5/8", Insul, 5/16" Bolt
If equipped
1шт.
27
515-2195
CLAMP,3/8", Insul, 1/4" Bolt
1/2 x 3/8, Serial No. JJA0081538, Build Date 9-15-1997
1шт.
28
515-21159
CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type
Serial No. JJA0081538, Build Date 9-15-1997
1шт.
29
780-14625
SELF-TAP SCREW,Hex Hd, M6.3 x 25
3 x 25 mm
1шт.
30
247270A2
PROTECTOR
1шт.
31
232948A1
SWITCH, A/C HIGH PRE
1шт.
32
905-8025
BOLT,Hex Flg, M8 x 25mm
If equipped
1шт.
33
844-10020
BOLT,Hvy Hex, M10 x 20mm, Cl 8.8
1шт.
34
825-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 8
1шт.
35
1954490C2
CLAMP
1шт.
36
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP , 15 in
1шт.
Выбрано товаров: 36
