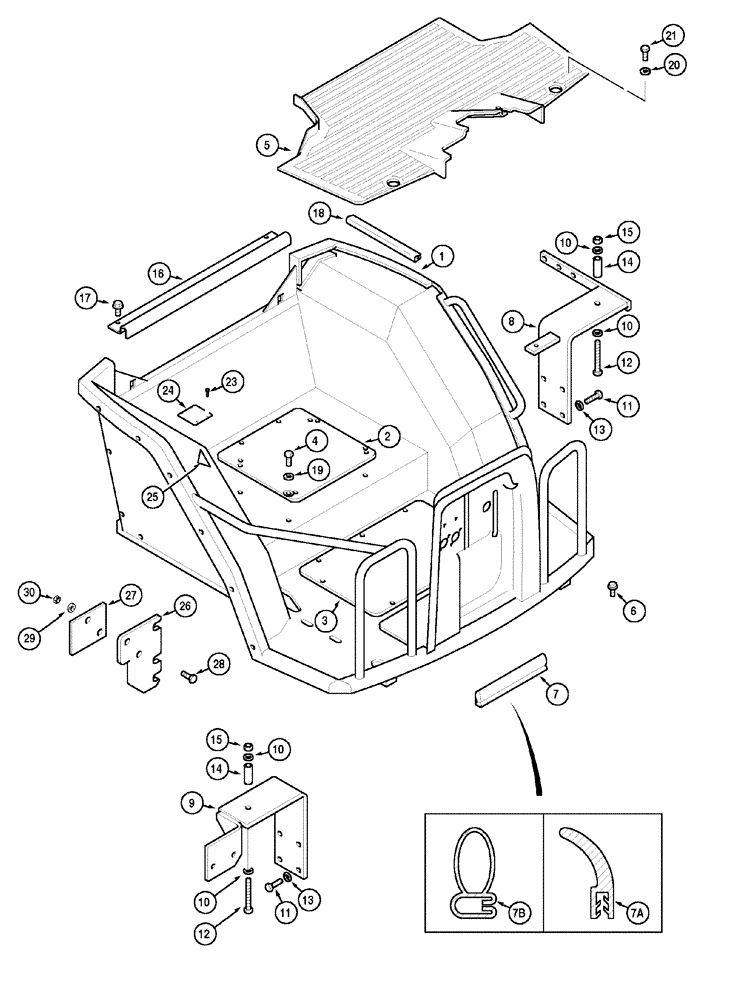

Запчасти Case IH MX120 (09-16) - PLATFORM (09) - CHASSIS/ATTACHMENTS

1

364017A2

CAB FLOOR

Includes 242924A1,3,4,19,23,24,25

1шт.

2

242924A1

PLATE ASSY.

Serial No. JJE0957959, Build Date 10-9-1998

1шт.

2

322182A2

PANEL

Serial No. JJE0957960, Build Date 10-9-1998

1шт.

3

177602A3

FLAP

1шт.

4

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

16шт.

5

225748A4

CARPET

1шт.

6

782-84645

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 45

4шт.

7b

259620A2

SEAL

1шт.

7c

233227A1

SEAL

1шт.

8

238295A2

SUPPORT ASSY.

1шт.

9

256822A1

SUPPORT ASSY.

1шт.

10

897278H1

WASHER,16.5mm ID x 40mm OD x 8mm Thk

8шт.

11

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

12

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

4шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

14

184262A1

SPACER

4шт.

15

829-1416

NUT,M16, Cl 10

4шт.

16

275487A3

COVER

230 mm

1шт.

17

782-84645

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 45

2шт.

18

NSS

NOT SOLD SEPARAT

Trim, Cut from 256196A1

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

20

895-30100

WASHER,6.6mm ID x 15mm OD x 1.6mm Thk

4шт.

21

782-84645

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 45

4шт.

23

781-24620

SELF-TAP SCREW,Hex Flg Hd, M6 x 20

4шт.

24

313636A1

COVER

1шт.

25

252279A1

DOOR COVER

1шт.

26

359640A2

LARGE PLATE

PLATE, LARGE

1шт.

27

360114A1

SUPPORT

1шт.

28

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

256196A1

ROLL

15240 mm, Bulk Length

1шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
