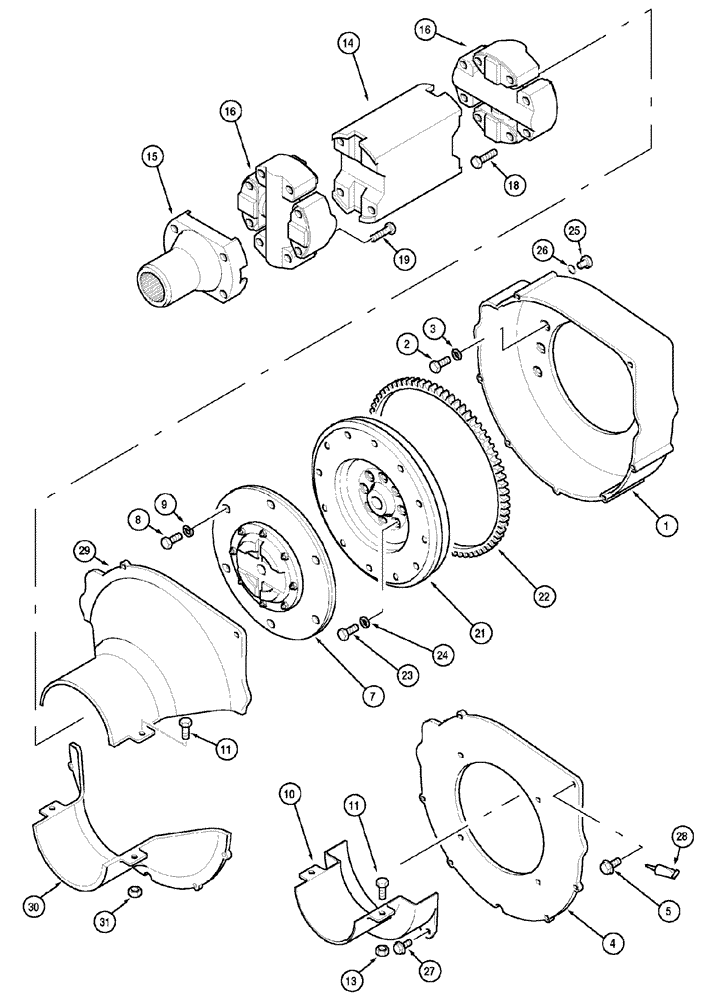

Запчасти Case IH MX120 (02-05) - FLYWHEEL AND HOUSING (02) - ENGINE

1

222365A3

HOUSING

1шт.

2

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

3

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

242054A1

COVER

1шт.

5

905-8016

BOLT,Hex Flg, M8 x 16mm

6шт.

7

235101A1

CLUTCH DISC,354.33mm OD

CLUTCH DISK , Engine Serial No. 45831197 and Prior, For N.A.

1шт.

7

235101A1R

REMAN-CLUTCH DISC

MX100, MX110, MX120, MX135, All On Or Before S/N JJE0959699.

1шт.

7

235101A1C

CORE-CLUTCH DISC

Return Number

1шт.

7

376596A1

PACKAGE, REPAIR

After Engine Serial No. 45831194 (Can Be Installed on Prior S/N w/ Flywheel Rework), For N.A.

1шт.

8

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

10

241968A1

GUARD

2шт.

11

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

14

223963A2

COUPLING

Serial No. JJE0962606, Build Date 10-14-1999

1шт.

14

236698A1

YOKE

UNIVERSAL JOINT YOKE Serial No. JJE0962607, Build Date 10-14-1999

1шт.

15

223968A1

YOKE

24T, Powershift

1шт.

15

223967A1

YOKE

21T, Synchromesh

1шт.

16

229108A1

U-JOINT SPIDER

2шт.

18

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

19

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

12шт.

21

J930781

FLYWHEEL WITH GEAR

Serial No. - JJE0959699, Includes 22

1шт.

21

J936238

FLYWHEEL WITH GEAR

Serial No. JJE0959700 -, Includes 22

1шт.

22

J905427

GEAR

1шт.

23

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

25

J910248

PLUG

1шт.

26

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

27

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

28

345-118

SEALANT

6 ml

1шт.

28

B17501

LOCTITE

6 ml

1шт.

29

349205A1

GUARD

1шт.

30

349204A1

GUARD

1шт.

31

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
