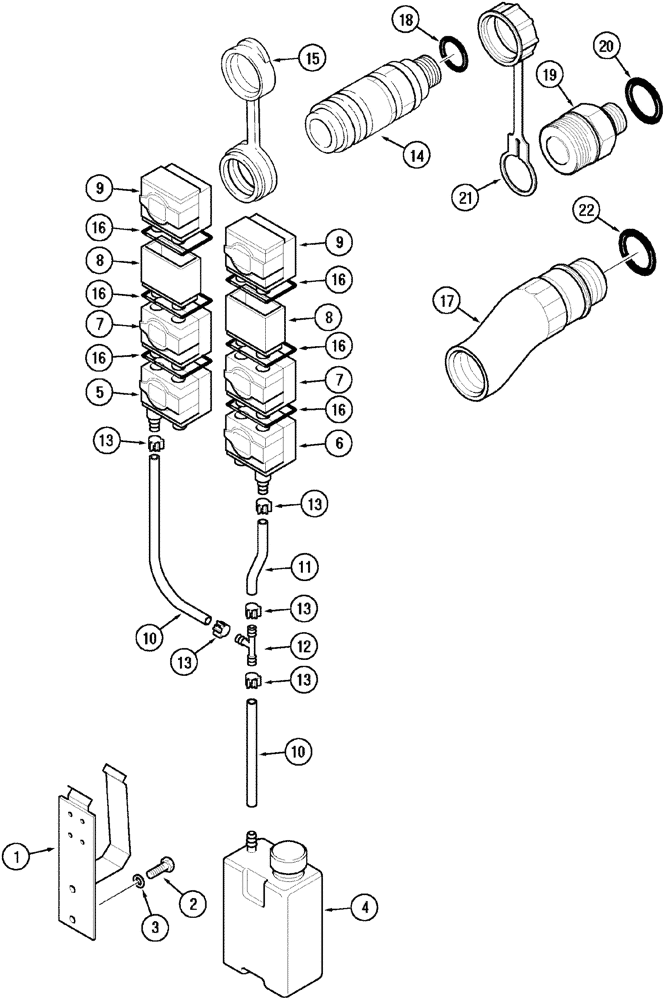

Запчасти Case IH MX120 (08-37) - HYDRAULIC COUPLINGS AND COLLECTORS (08) - HYDRAULICS

1

280909A1

SUPPORT

1шт.

2

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

242278A1

BOTTLE,0.6L

1шт.

5

243171A2

TRAP

1шт.

6

243172A2

TRAP

1шт.

7

243173A2

TRAP

Includes 16

2шт.

8

252966A1

TANK

2шт.

9

243174A2

TRAP

Includes 16

2шт.

10

280285A1

HOSE

170 mm

2шт.

11

248630A2

HOSE

1шт.

12

248632A1

TEE,3/8" Hose Barb x 3/8" Hose Barb x 3/8" Hose Barb

1шт.

13

1348264C1

HOSE CLAMP

3/8 ID

5шт.

14

297907A1

COUPLING, BREAK AWAY

Europe Only

1шт.

14

370507A1

COUPLING, BREAK AWAY

, Serial Range: Optional-297907A1

1шт.

14

195315A2

COUPLING, BREAK AWAY

N.A. Only, Male Thread is M22-1.5, , Includes 18

1шт.

Male Mate is 1285718C2

1шт.

15

1954146C1

CAP

N.A. Only

1шт.

15

T104539

DUST CAP

Europe Only

1шт.

16

284575A1

O-RING

1шт.

324733A1

PACKAGE, REPAIR

Europe Only, Consists of 17 - 21

1шт.

17

302635A1

COUPLING, BREAK AWAY

Europe Only, Optional, Includes 22

1шт.

18

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

19

1954144C2

COUPLING

Europe Only, Optional, Includes 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

T104552

CAP

Europe Only, Use with Ref 19

1шт.

22

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.
