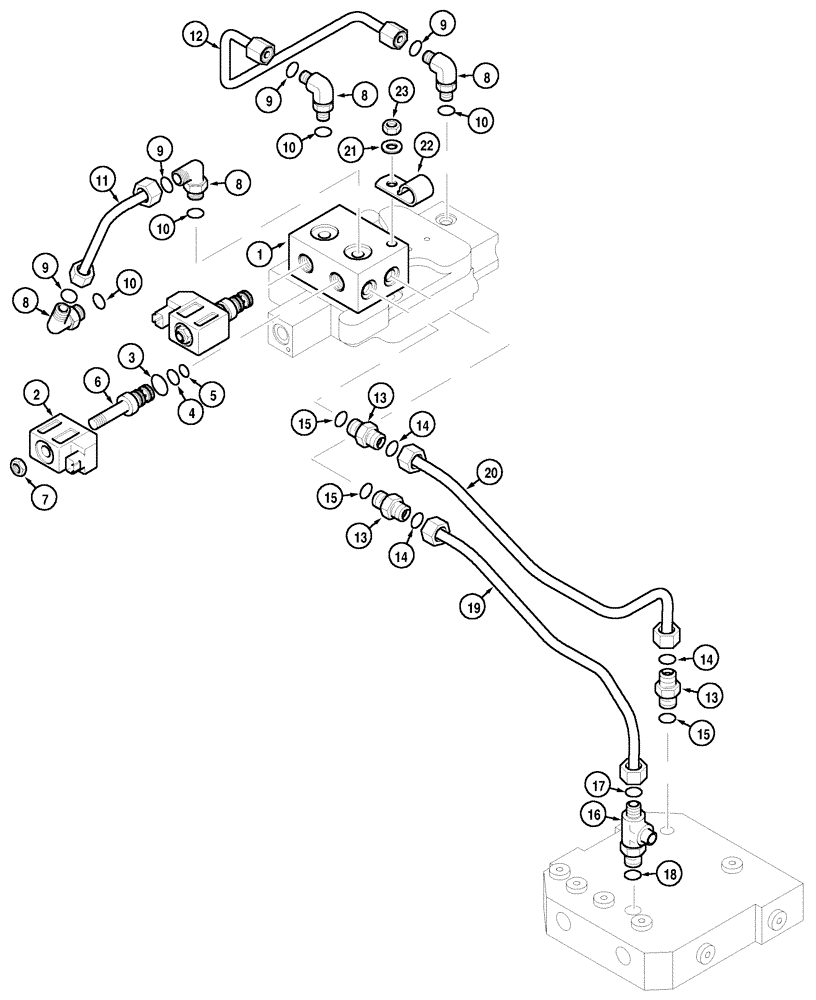

Запчасти Case IH MX120 (08-30) - HYDRAULIC PIPING (08) - HYDRAULICS

4th Bank

1шт.

283570A2

BLOCK ASSY.

Consists of 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

Block

1шт.

349295A1

SOLENOID VALVE

Consists of 2 - 7

2шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

NSS

NOT SOLD SEPARAT

Nut

1шт.

8

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 9, 10

4шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

302881A1

HYD TUBE,10 mm OD, 104, 59 mm Length

Lower

1шт.

12

302880A1

HYD TUBE

Raise

1шт.

13

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 14, 15

3шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

16

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 17, 18

1шт.

16b

339561A1

TEE

With Screen, Consists of 16B,16C,17,18, Replaces 700-412

1шт.

16c

339562A1

TEE

1шт.

16d

1980065C3

SCREEN

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

302883A1

HYD TUBE,10 mm OD, 216, 237 mm Length

Supply

1шт.

20

302882A1

HYD TUBE,10 mm OD, 247, 167 mm Length

Return

1шт.

21

893-16012

LOCK WASHER,Ext Tooth, M12

1шт.

22

229352A1

CLIP

1шт.

23

829-1412

NUT,M12, Cl 10.9

1шт.
