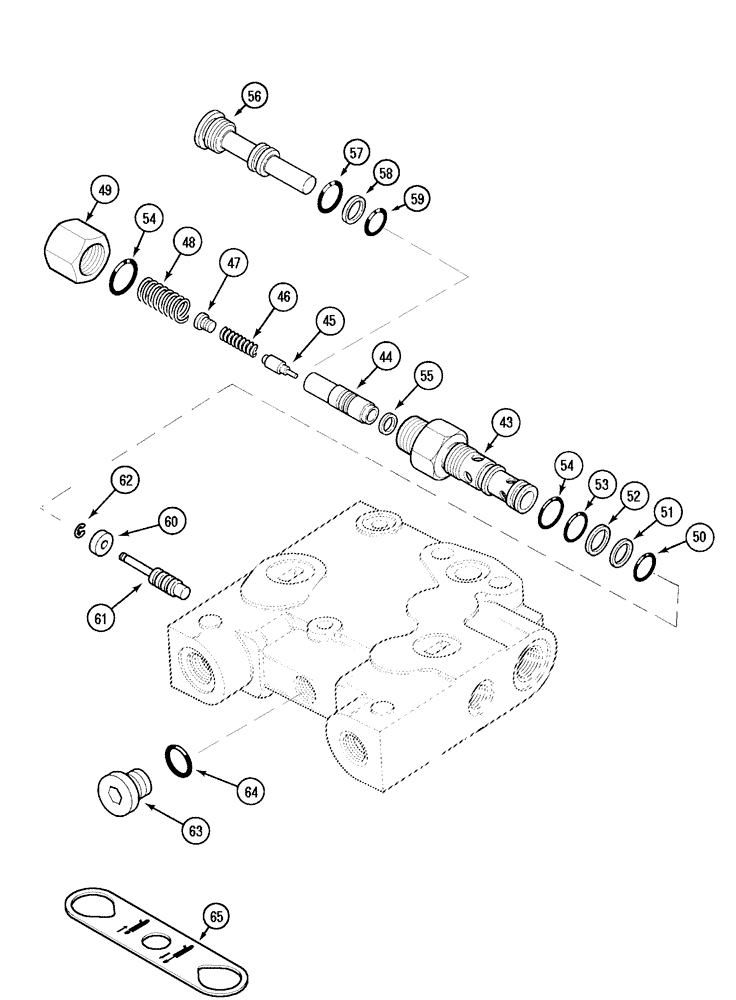

Запчасти Case IH MX120 (08-29) - REMOTE VALVE ASSEMBLY (08) - HYDRAULICS

1971801C2

CHECK VALVE

Consists of 43 - 55,59

1шт.

43

NSS

NOT SOLD SEPARAT

Plug

1шт.

44

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

45

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

46

NSS

NOT SOLD SEPARAT

Spring

1шт.

47

NSS

NOT SOLD SEPARAT

Retainer

1шт.

48

NSS

NOT SOLD SEPARAT

Spring

1шт.

49

NSS

NOT SOLD SEPARAT

Cap

1шт.

50

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16

1шт.

51

G110287

BACK-UP RING

Inner

1шт.

52

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

Outer

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

55

G108724

BACK-UP RING

1шт.

345-49

SEALANT

1 ml, Use with 47

1шт.

1971475C1

PLUG

In place of 1971801C2, Consists of 56 - 62

1шт.

56

NSS

NOT SOLD SEPARAT

Plug

1шт.

57

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

58

G110287

BACK-UP RING

1шт.

59

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

1957907C1

PISTON ASSY

Consists Of 60 - 62

1шт.

60

1957861C1

WASHER

1шт.

61

1957862C1

PISTON

1шт.

62

1957859C1

SNAP RING

1шт.

63

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 64

1шт.

64

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

65

1531518C2

SYMBOLS

SYMBOL , No. 4

1шт.
