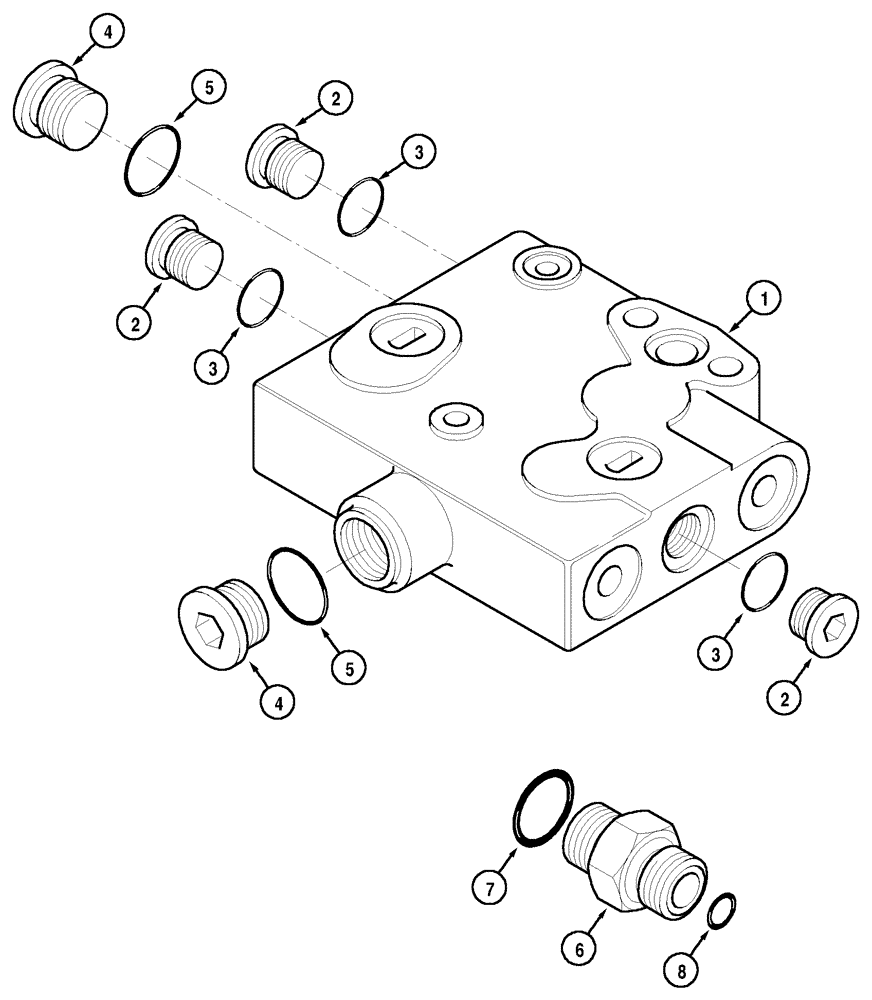

Запчасти Case IH MX120 (08-18) - POWER BEYOND MANIFOLD (08) - HYDRAULICS

199168A1

LARGE PLATE

PLATE, LARGE , Consists of 1 - 5

1шт.

1

199169A1

MANIFOLD

1шт.

2

221578A1

PLUG,M18 x 1.5 ORB

Includes 3

3шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

221579A1

PLUG,M22 x 1.5 ORB

Includes 5

2шт.

5

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

304018A1

VALVE POPPET

Includes 7,8

1шт.

7

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
