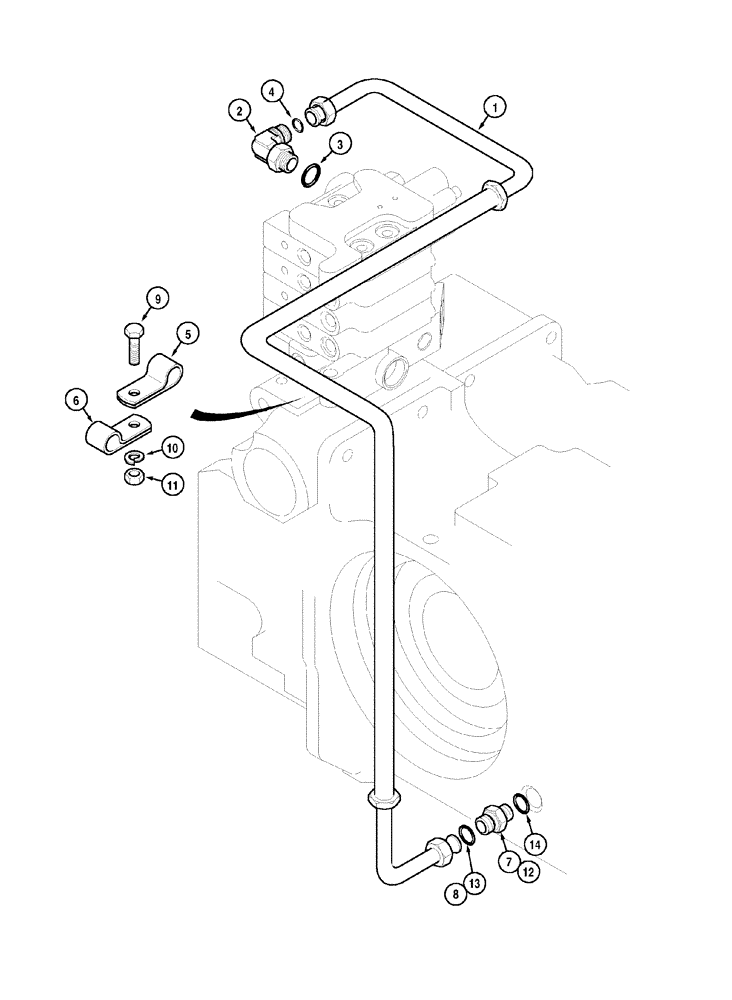

Запчасти Case IH MX120 (08-16) - REMOTE CONTROL VALVE OIL RETURN (08) - HYDRAULICS

1

243678A1

HOSE ASSY.

1шт.

2

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 3, 4

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

6

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

7

703-103

HYD CONNECTOR,1"-14 ORFS x 5/8" Tube, Braze

Incl. 8

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

892-11008

LOCK WASHER,8mm ID

1шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

12

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 13,14

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
