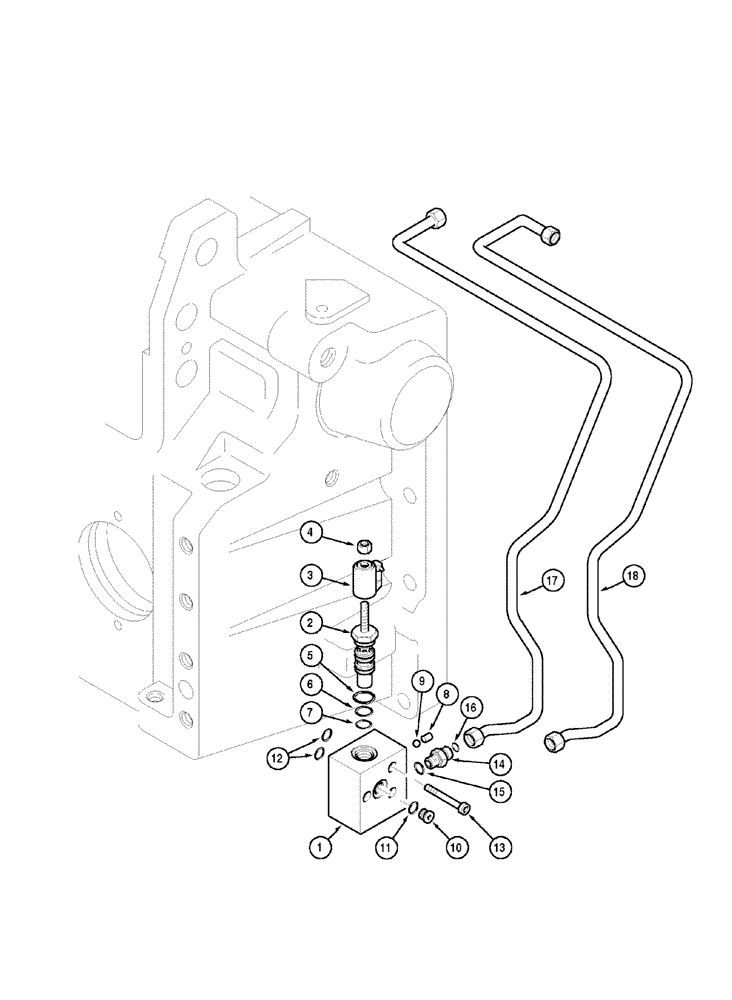

Запчасти Case IH MX120 (08-15) - P.T.O. VALVE AND LINKAGE (08) - HYDRAULICS

241089A3

VALVE

Consists of 1 - 9

1шт.

1

239976A3

BLOCK ASSY.

1шт.

180584A1

SOLENOID VALVE,Proportional Pressure Relief

Consists of 2 - 8

1шт.

2

190638A1

SOLENOID

1шт.

3

190639A1

COIL ASSY.

1шт.

4

190640A1

NUT

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Plug

1шт.

9

NSS

NOT SOLD SEPARAT

Ball

1шт.

10

220064A1

PLUG,M14 x 1.5, ORB

Incl. 11

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

13

864-6050

HEX SOC SCREW,M6 x 50mm, Cl 8.8

3шт.

14

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 15,16

1шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

244370A3

PIPE,12 mm OD, 421, 308 mm Length

P.T.O., Supply

1шт.

18

361898A1

PIPE

P.T.O., Supply

1шт.
