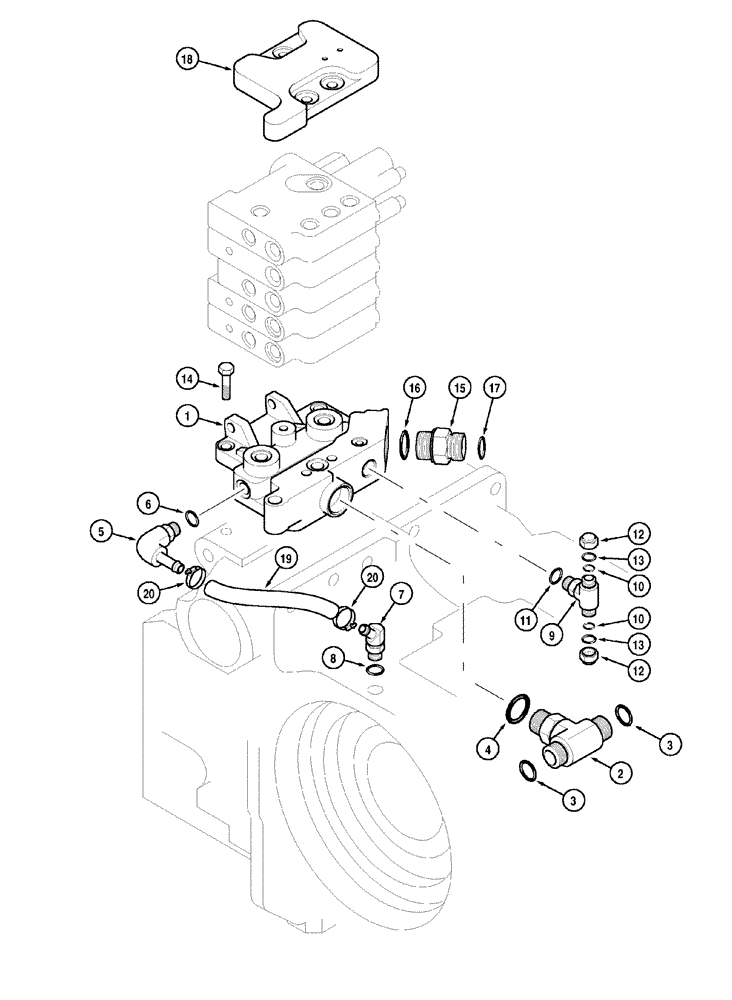

Запчасти Case IH MX120 (08-11) - INLET AND OUTLET MANIFOLD (08) - HYDRAULICS

1

199690A5

COVER

1шт.

2

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes 3,4

1шт.

3

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

2шт.

4

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

5

247803A1

ELBOW

Includes 6

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

295561A1

ADAPTER

Includes 8

1шт.

8

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes 10,11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

701-900

CAP,11/16" - 16

Includes 13

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

15

186657A1

VALVE, CHECK

Includes 16,17

1шт.

16

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

18

G110143

COVER

1шт.

19

295563A2

HOSE,12.7 mm ID x 220.00 mm, SAE 8 CLASS 1

1шт.

20

214-1408

HOSE CLAMP,11.2mm - 19.8mm

11/16 - 1-1/4

2шт.
