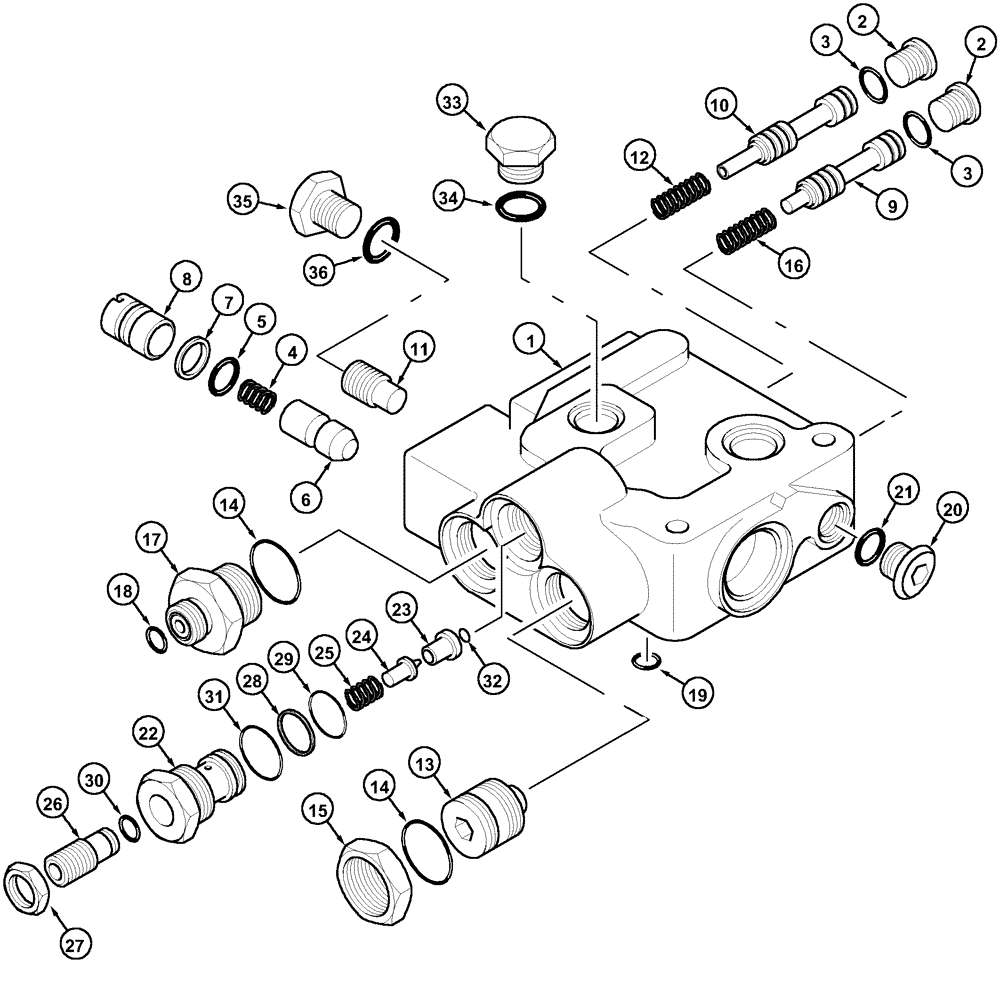

Запчасти Case IH MX120 (08-04) - PRIORITY VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
175642A6
VALVE
Consists of 1 - 32
1шт.
1
NSS
NOT SOLD SEPARAT
Body
1шт.
2
221579A1
PLUG,M22 x 1.5 ORB
Incl. 3
2шт.
3
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
1542563C1
KIT
Consists of 4 - 8
1шт.
4
1994581C1
SPRING,6.1mm OD x 31.1mm L
1шт.
5
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
6
1543329C1
VALVE POPPET,7mm ID x 13.8mm OD x 27mm L
1шт.
7
G108723
RING,14.34mm ID x 16.94mm OD x 1.32mm Thk
1шт.
8
NSS
NOT SOLD SEPARAT
Body
1шт.
9
119182A3
SPOOL
1шт.
10
230612A2
SPOOL
Priority
1шт.
11
118923A2
PLUG
With Screen
1шт.
12
230613A1
SPRING
1шт.
313941A1
PLUG
Consists of 13,14
1шт.
13
119184A2
PLUG
1шт.
13
313941A1
PLUG
Replaces 119184A2
1шт.
14
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
15
218-1280
BHD LOCK NUT,Blkhd, 1 1/16"-12
1шт.
16
176312A1
SPRING
1шт.
17
176087A1
FITTING
1шт.
17
313940A1
FITTING
1шт.
18
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
20
221578A1
PLUG,M18 x 1.5 ORB
Incl. 21
2шт.
21
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
G108868
VALVE PRESSURE RELIE
Consists of 22 - 32
1шт.
22
G108866
HOUSING,1-1/16" - 12
1шт.
23
NSS
NOT SOLD SEPARAT
Seat
1шт.
24
G108556
VALVE POPPET
1шт.
25
130059A1
SPRING
1шт.
26
G108867
PLUG
1шт.
27
425-1510
JAM NUT,Jam, 5/8"-18, G5
1шт.
28
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
1шт.
29
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
30
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
31
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
32
NSS
NOT SOLD SEPARAT
Screen
1шт.
33
220066A1
PLUG,M18 x 1.5, ORB
Without Trailer Brake, Incl. 34
1шт.
34
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
35
220065A1
PLUG,M16 x 1.5, ORB
Incl. 36
1шт.
36
637-63133
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
1шт.
Выбрано товаров: 42
