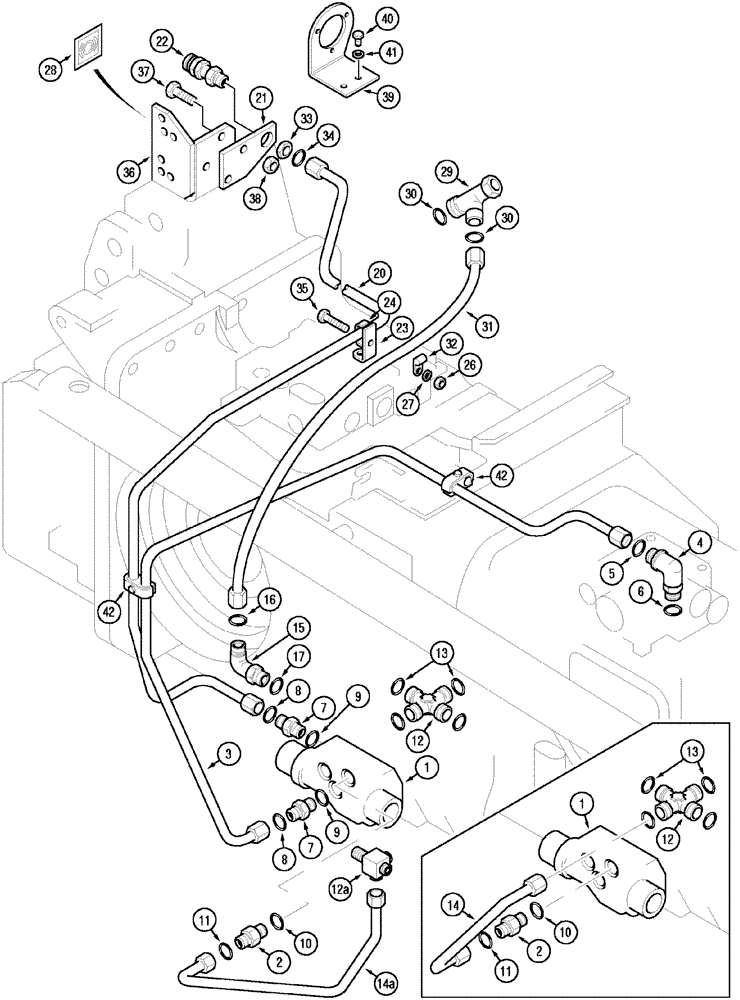

Запчасти Case IH MX120 (07-09) - HYDRAULIC TRAILER BRAKE CIRCUIT (07) - BRAKES

Europe Only

1шт.

1

223970A2

VALVE

1шт.

2

223971A1

CHECK VALVE,11/16" - 16 ORFS x M14 x 1.5 ORB

Includes 10,11

1шт.

3

256552A1

HYD TUBE

Supply

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5,6

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 8,9

2шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

701-921

4 WAY CONNECTION,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Includes 13

1шт.

12b

338812A1

TEE

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

14

234836A1

HYD TUBE,10 mm OD

1шт.

14b

338813A1

HYD TUBE

1шт.

15

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Includes 16,17

1шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

223244A4

BRAKE LINE

1шт.

21

1533270C1

SUPPORT

See Page(s) 6-75

1шт.

22

225077A1

COUPLING, BREAK AWAY

1шт.

23

224175A1

SUPPORT

1шт.

24

T101170

CLAMP

1шт.

26

825-1406

NUT,M6, Cl 8

1шт.

27

896-12006

WASHER,6.4mm ID x 13mm OD x 2mm Thk

6,6 x 12,5 x 2 mm

1шт.

28

1533489C1

DECAL

1шт.

29

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Includes 30, Serial No. JJE0958149, Build Date 10-28-1998

1шт.

29

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 30, Serial No. JJE0958150, Build Date 10-28-1998

1шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

31

246319A1

HOSE ASSY.,6.40 mm ID x 1300.00 mm, SAE 100R1

Serial No. JJE0958149, Build Date 10-28-1998

1шт.

31

323237A1

HOSE

1300 mm, Serial No. JJE0958150, Build Date 10-28-1998

1шт.

32

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

33

701-903

NUT,13/16" - 16

Includes 34

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

36

1533276C1

SUPPORT

See Page(s) 6-75

1шт.

37

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

39

1961336C2

SUPPORT

7 Pin

1шт.

40

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

41

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

42

256553A1

CLAMP

2шт.
