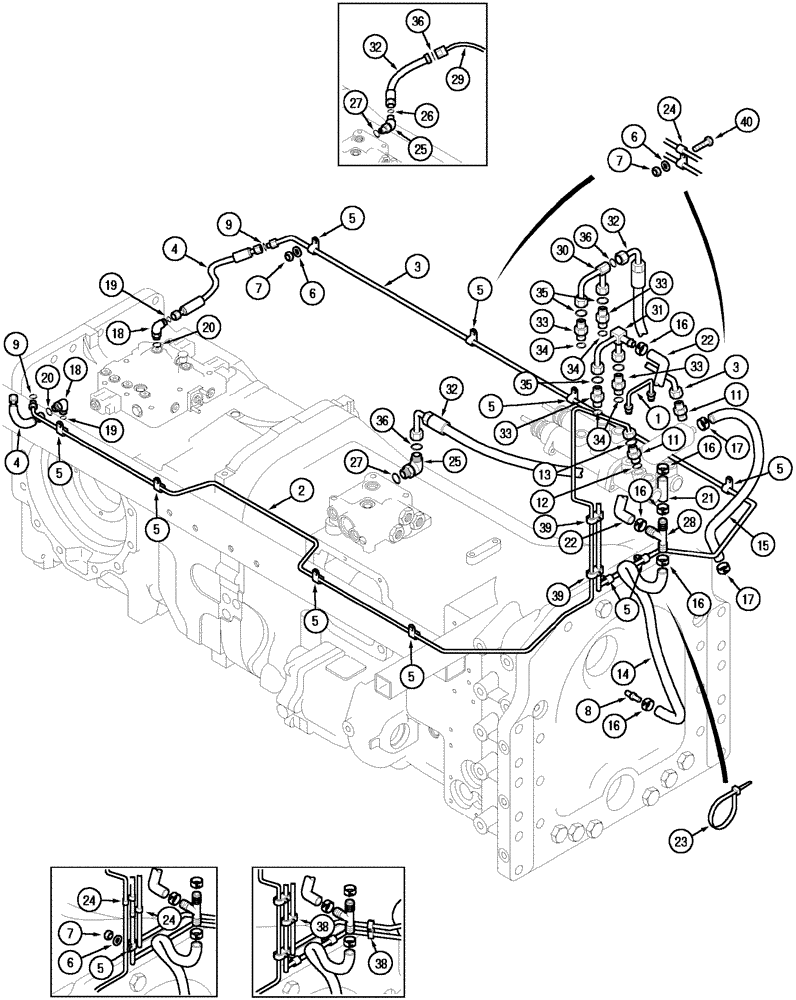

Запчасти Case IH MX120 (07-06) - BRAKE SYSTEM (07) - BRAKES

With Booster

1шт.

1

222875A1

HYD TUBE,4.75 mm OD

1шт.

2

247856A1

HYD TUBE

Right Brake

1шт.

3

247855A2

HYD TUBE

Left Brake

1шт.

4

225010A2

HOSE

2шт.

5

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

6

892-11008

LOCK WASHER,8mm ID

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 12, 13

2шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

224283A1

HOSE

1025 mm, Return

1шт.

15

198312A1

HYDRAULIC HOSE

800 mm, Supply

1шт.

15

334559A1

HOSE

555 mm, Supply

1шт.

16

214-1506

HOSE CLAMP,11.18mm - 19.81mm

6шт.

17

A171099

HOSE CLAMP,13.2mm - 15.4mm

2шт.

18

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Includes 19,20

2шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

247851A1

HOSE,12.70 mm ID x 45.00 mm, SAE 30R7

Return

1шт.

22

247850A1

HOSE,12.70 mm ID x 192.00 mm, SAE 30R7

Return

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

24

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Serial No. JJE0958092, Build Date 10-22-1998

5шт.

25

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 26, 27, Serial No. JJE0958092, Build Date 10-22-1998

1шт.

25

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes 27,36, Serial No. JJE0958093, Build Date 10-22-1998

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

28

247860A1

TEE

1шт.

29

247853A2

HYD TUBE

Supply, Serial No. JJE0958092, Build Date 10-22-1998

1шт.

30

247858A1

HYD TUBE,10 mm OD, 80 mm Length

1шт.

31

247859A1

HYD TUBE

1шт.

32

275830A1

HOSE ASSY.

Supply, Serial No. JJE0958092, Build Date 10-22-1998

1шт.

32

322412A1

HOSE,9.53mm ID x 1500mm L

1500 mm, Supply, Serial No. JJE0958093, Build Date 10-22-1998

1шт.

33

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 34,35

4шт.

34

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

38

242133A1

CLAMP

Serial No. JJE0958092, Build Date 10-22-1998

2шт.

39

277391A1

CLAMP

2шт.

40

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

If So Equipped

3шт.
