Запчасти Case IH MX120 (06-40) - REAR WHEELS ADJUSTABLE (06) - POWER TRAIN

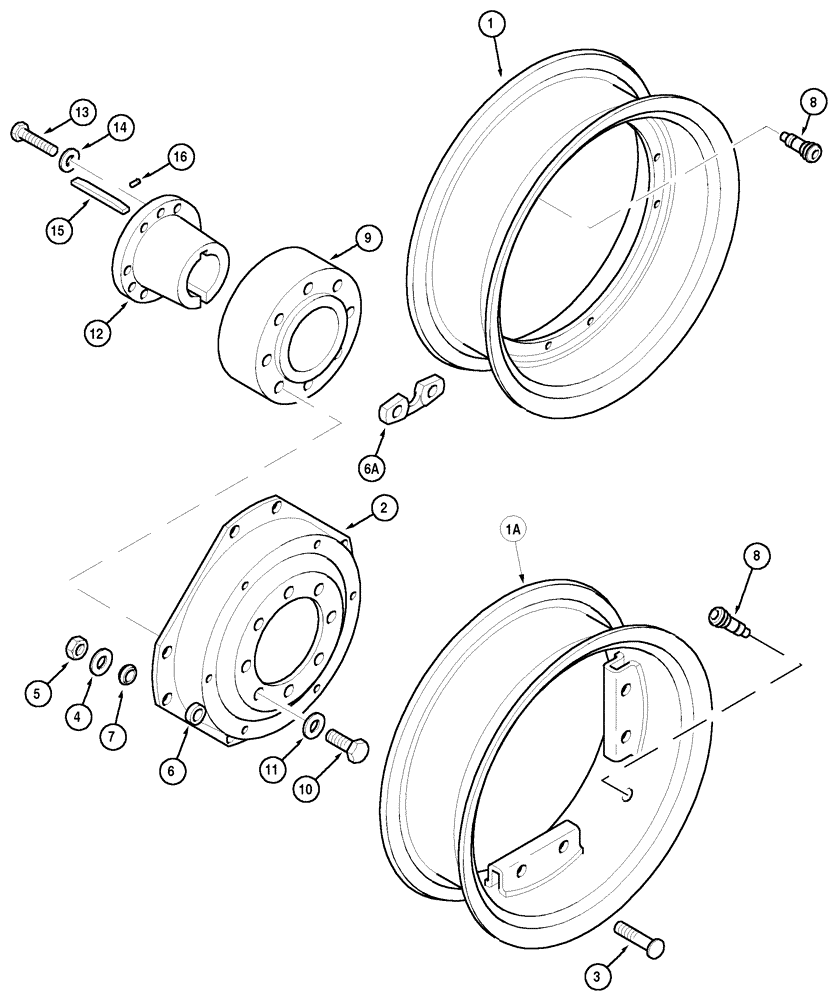

Схема запчастей Case IH MX120 - (06-40) - REAR WHEELS ADJUSTABLE (06) - POWER TRAIN
6a
7
12
8
3
10
13
1a
9
1
8
2
14
11
16
5
4
15
6

Артикул

Название

Примечание

Количество

G.K.N.

1шт.

Silver

1шт.

328071A1

WHEEL ASSY.

DW15Lx34, Heavy Duty, N.A. Only, Consists of 1,2 - 5,6A

2шт.

1

319836A1

RIM

WHEEL , W16L34

1шт.

2

328066A1

DISC, WHEEL

1шт.

3

228125A1

SPECIAL BOLT,M16 x 58mm, Class 10.9

8шт.

4

89746C2

WASHER

8шт.

5

3404233R2

NUT

8шт.

6a

250952A1

SPACER

80 mm, Serial Range: Center-Center

4шт.

245698A1

WHEEL ASSY.

DW15x38, Consists of 1A - 5

2шт.

1a

188378A1

RIM

WHEEL

1шт.

2

245743A1

DISC

1шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

8шт.

4

1335135C1

WASHER

17 x 33 x 5 mm

8шт.

5

1335134C1

NUT

M16

8шт.

245700A1

WHEEL ASSY.

DW18x38, Consists of 1A - 5

2шт.

1a

245729A1

RIM

WHEEL

1шт.

2

245743A1

DISC

1шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

8шт.

4

1335135C1

WASHER

17 x 33 x 5 mm

8шт.

5

1335134C1

NUT

M16

8шт.

245705A1

WHEEL ASSY.

DW16Lx42, Consists of 1,2 - 5,6A

2шт.

1

245735A1

RIM

WHEEL

1шт.

2

311837A1

DISC

1шт.

3

228125A1

SPECIAL BOLT,M16 x 58mm, Class 10.9

8шт.

4

1335135C1

WASHER

17 x 33 x 5 mm

8шт.

5

3404233R2

NUT

8шт.

6a

250952A1

SPACER

80 mm, Serial Range: Center-Center

4шт.

304190A1

WHEEL ASSY.

W13x46, Consists of 1,2 - 6

2шт.

1

245732A1

RIM

WHEEL

1шт.

2

311835A1

DISC

1шт.

3

228125A1

SPECIAL BOLT,M16 x 58mm, Class 10.9

8шт.

4

89746C2

WASHER

8шт.

5

3404233R2

NUT

8шт.

6

228128A1

SPACER

96 mm, Serial Range: Center-Center

4шт.

300275A1

WHEEL ASSY.

DW15Lx38, Consists of 1,2 - 5,6A

2шт.

1

300265A1

RIM

WHEEL

1шт.

2

245743A1

DISC

1шт.

3

228125A1

SPECIAL BOLT,M16 x 58mm, Class 10.9

8шт.

4

1335135C1

WASHER

17 x 33 x 5 mm

8шт.

5

3404233R2

NUT

8шт.

6a

250952A1

SPACER

80 mm, Serial Range: Center-Center

4шт.

300277A1

WHEEL ASSY.

DW18Lx38, Consists of 1,2 - 5,6A

2шт.

1

300266A1

RIM

WHEEL

1шт.

2

245743A1

DISC

1шт.

3

228125A1

SPECIAL BOLT,M16 x 58mm, Class 10.9

8шт.

4

1335135C1

WASHER

17 x 33 x 5 mm

8шт.

5

3404233R2

NUT

8шт.

6a

250952A1

SPACER

80 mm, Serial Range: Center-Center

4шт.

328074A1

WHEEL ASSY.

DW 10x46, N.A. Only, Consists of 1,2 - 6

2шт.

1

284157A1

RIM

WHEEL

1шт.

2

328075A1

DISC

1шт.

3

228125A1

SPECIAL BOLT,M16 x 58mm, Class 10.9

16шт.

4

1335135C1

WASHER

17 x 33 x 5 mm

16шт.

5

3404233R2

NUT

16шт.

6

228128A1

SPACER

96 mm, Serial Range: Center-Center

4шт.

328078A1

WHEEL ASSY.

DW10x54, Consists Of 1,2,3,4,5,6A

2шт.

1

245737A1

RIM

WHEEL

1шт.

2

328077A1

DISC

1шт.

3

228125A1

SPECIAL BOLT,M16 x 58mm, Class 10.9

8шт.

4

89746C2

WASHER

8шт.

5

3404233R2

NUT

8шт.

6a

250952A1

SPACER

Titan, 80 mm, Serial Range: Center-Center

4шт.

225421A1

WHEEL ASSY.

W15L X 38, Consists of 1,2 - 5

2шт.

1

225423A1

RIM

WHEEL

1шт.

2

225422A1

DISC, WHEEL

1шт.

3

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

5

829-1416

NUT,M16, Cl 10

12шт.

225424A1

WHEEL ASSY.

38xW18L, Consists of 1,2 - 5

2шт.

1

225425A1

RIM

WHEEL

1шт.

2

225422A1

DISC, WHEEL

1шт.

3

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

5

829-1416

NUT,M16, Cl 10

12шт.

225426A1

WHEEL ASSY.

42xDD16, Consists of 1,2 - 5

2шт.

1

225427A1

RIM

WHEEL

1шт.

2

225422A1

DISC, WHEEL

1шт.

3

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

5

829-1416

NUT,M16, Cl 10

12шт.

221362A1

WHEEL

WH16Ax42, N.A. Only

2шт.

228235A1

WHEEL ASSY.

42xDD18, N.A. Only

2шт.

228242A1

WHEEL ASSY.

50xW10, N.A. Only

2шт.

243377A1

WHEEL ASSY.

54xW10, N.A. Only

2шт.

7

228128A1

SPACER

96 mm, Serial Range: Center-Center

4шт.

8

A20058

VALVE STEM

Tubeless Tyres

2шт.

Row Crop / Recolte En Rangs / Hackfrucht / Cultivo En Hileras

1шт.

280057A1

HUB ASSY.

3,5 in, Consists of 9,12,13,14

2шт.

300378A1

HUB ASSY.

4 in, Consists of 9,12A,13,14

2шт.

9

241933A1

HUB

2шт.

10

232974A2

BOLT

M22 x 80; 10,9

16шт.

11

232975A1

WASHER,24.25mm ID x 44mm OD x 6mm Thk

22 x 44 x 6 mm

16шт.

12

250850A1

HUB

3,5 in

2шт.

12a

223769A1

HUB

4 in

2шт.

13

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

12шт.

13

627-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9, Full Thd

Optional

12шт.

14

232579A1

WASHER,22.25mm ID x 38mm OD x 6mm Thk

20 x 38 x 6 mm

12шт.

15

1530716C1

BUCKET TOOTH KEY

5/8 x 5

2шт.

15

A63219

KEY

3/4 x 6, N.A. Only

2шт.

16

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

320099A

KIT

Dual Hub for a 4 inch Axle, Order from Wholegoods

1шт.

Выбрано товаров: 102
