Запчасти Case IH MX120 (06-38) - DRIVE AND IDLER GEARS 4WD (06) - POWER TRAIN

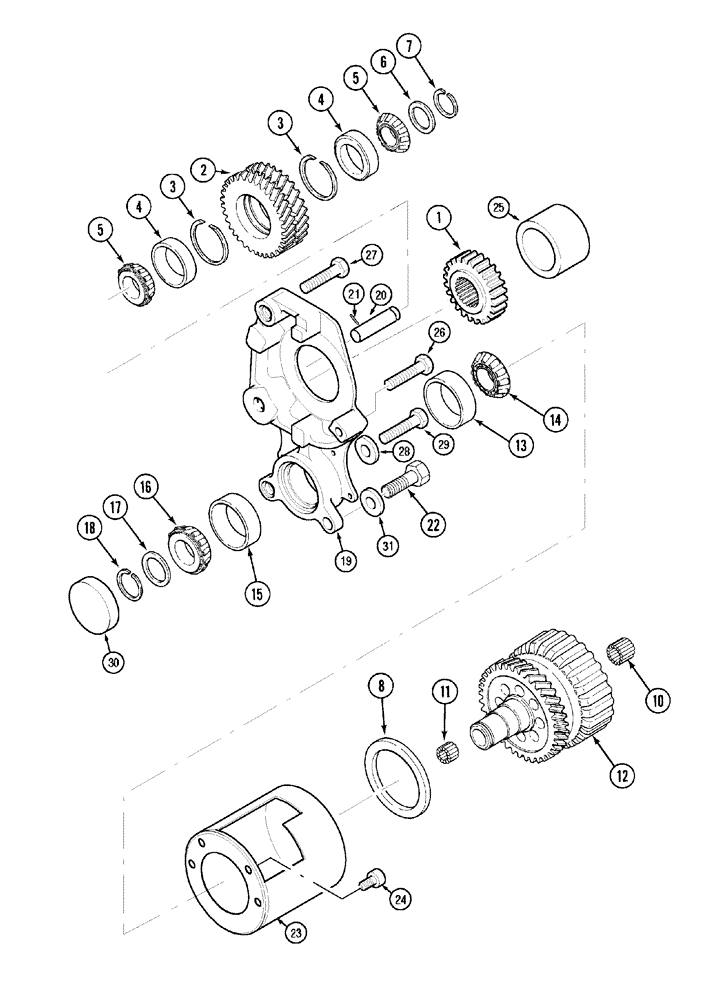

Схема запчастей Case IH MX120 - (06-38) - DRIVE AND IDLER GEARS 4WD (06) - POWER TRAIN
3
20
4
15
8
22
23
28
24
30
16
2
14
29
5
13
18
3
19
6
4
31
10
26
11
1
12
21
27
17
5
25
7

Артикул

Название

Примечание

Количество

1

284538A1

PINION

24T, Drive, 4WD Ratio 1.4935, Interaxle Ratio 1.321

1шт.

2

284767A1

PINION

31/32T, Idler, 4WD Ratio 1.4935, Interaxle Ratio 1.321

1шт.

3

A188179

CIRCLIP

2шт.

3

100-21231

SNAP RING,2.312", Int, #231

Optional

2шт.

4

651817R1

BEARING CUP

2шт.

5

A156625

ROLLER BEARING

2шт.

6

A178328

SHIM,31.95mm ID x 43mm OD x 0.36mm Thk

1шт.

6

A178329

SHIM,31.95mm ID x 43mm OD x 0.46mm Thk

0,457 mm

1шт.

6

A178330

SHIM,31.95mm ID x 43mm OD x 0.64mm Thk

0,635 mm

1шт.

7

100-16125

SNAP RING,#125, Ext

1шт.

8

1995123C1

SEAL,83.77mm ID x 107mm OD x mm Thk

1шт.

10

K620066

NEEDLE BEARING

1шт.

11

A186418

NEEDLE BEARING,Needle, 20mm ID x 26mm OD x 16mm W

1шт.

12

1345719C2

CLUTCH HOUSING

1шт.

13

663558R1

BEARING CUP

1шт.

14

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1-5/8 ID

1шт.

15

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

1шт.

16

61063C91

ROLLER BEARING,38.11mm ID x 25.57mm W

1шт.

17

A188199

SHIM,38.6mm ID x 48.6mm OD x 0.05mm Thk

(0.002")

1шт.

17

A188200

SHIM,38.6mm ID x 48.6mm OD x 0.13mm Thk

(0.005")

1шт.

17

A188201

SHIM,38.6mm ID x 48.6mm OD x 0.2mm Thk

(0.008")

1шт.

17

1995014C1

SHIM

0,02 in

1шт.

18

100-16150

SNAP RING,#150, Ext

1шт.

19

323228A1

HOUSING

Includes 20,21, Park Brake

1шт.

20

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

21

38-31020

PIN,3.96mm OD x 31.75mm L, Coiled

1шт.

22

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

23

315434A1

GUARD ASSY.

1шт.

24

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

4шт.

25

235235A1

SPACER

2WD

1шт.

26

615-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

27

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

1шт.

28

249081A1

WASHER

45 mm

1шт.

29

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

1шт.

30

1341280C1

PLUG

2WD

1шт.

31

96-81006

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

2шт.

Выбрано товаров: 36
