Запчасти Case IH MX120 (06-29) - P.T.O. CLUTCH AND DRIVE (06) - POWER TRAIN

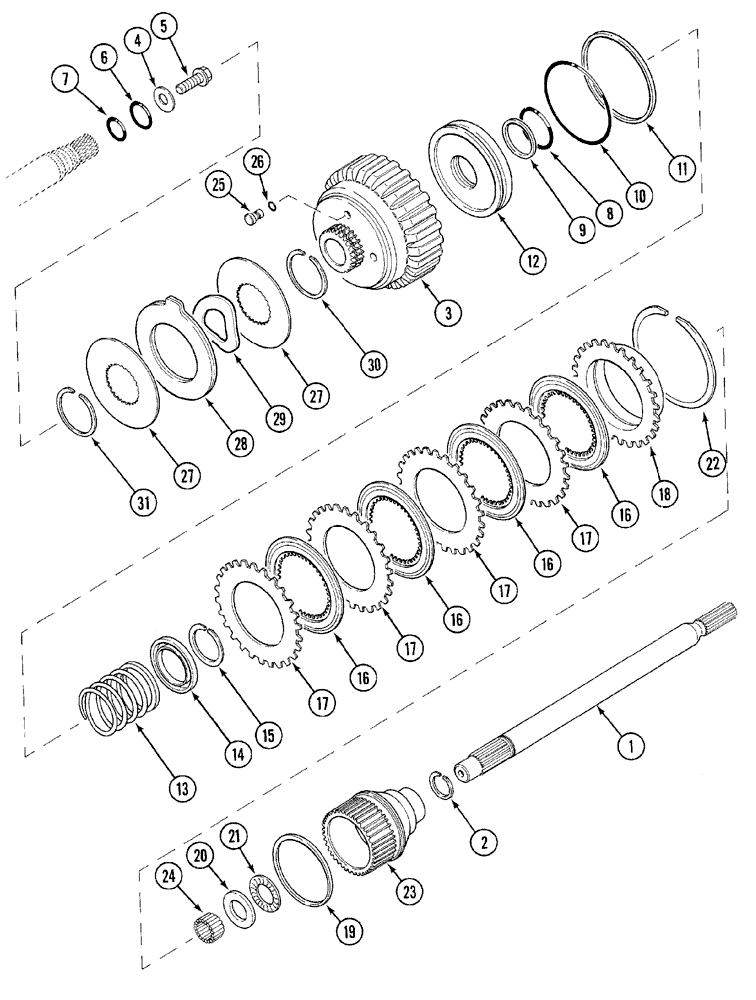

Схема запчастей Case IH MX120 - (06-29) - P.T.O. CLUTCH AND DRIVE (06) - POWER TRAIN
23
8
16
9
12
22
18
19
4
16
10
29
1
21
27
7
15
5
26
3
16
6
13
25
28
30
17
11
17
31
16
24
20
2
27
14
17
17

Артикул

Название

Примечание

Количество

1

1341088C1

SHAFT

1шт.

2

103-11112

SNAP RING,#112, Ext

1шт.

3

1997144C2

CLUTCH HOUSING

1шт.

4

A175129

WASHER, THRUST

1шт.

5

853-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

M12 x 25; 10,9

1шт.

6

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1шт.

7

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

8

238-7137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

1шт.

9

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

1шт.

10

238-7156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 7, 75 Duro

1шт.

11

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

1шт.

12

A159292

PISTON

121.8 x 20.65 mm

1шт.

12

253492A1

PISTON

121.8 x 19.65 mm, S/N JKA0108699 - JKA0127445

1шт.

12

352429A1

PISTON

121.8 x 18.65 mm, ASN JKA0127446

1шт.

13

A183508

SPRING

1шт.

14

A183436

RETAINER,45.25mm ID x 65.45mm OD x 5mm Thk

1шт.

15

100-16175

SNAP RING,#175, Ext

1шт.

16

1997129C1

NOTCHED DISK

BSN JKA0127446

4шт.

16

247090A1

NOTCHED DISK

ASN JKA0127446

4шт.

17

A175806

PLATE

4шт.

18

A188599

PLATE

1шт.

19

1995174C1

SEALING RING

SEALRING

1шт.

20

A146625

WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk

1шт.

21

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

1шт.

22

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

1шт.

23

A188600

YOKE

UNIVERSAL JOINT YOKE

1шт.

24

A175839

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 16mm W

1шт.

112627A1

KIT

Consists of 25 - 29

1шт.

25

1995268C1

PISTON

3шт.

26

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3шт.

27

1995264C2

BRAKE DISC

DISC, BRAKE

2шт.

28

379740A1

DISC

1шт.

29

1345690C1

SPRING

3шт.

30

100-17200

SNAP RING,#200, Ext

2шт.

31

800-1155

RETAINER,55mm ID

1шт.

Выбрано товаров: 35
