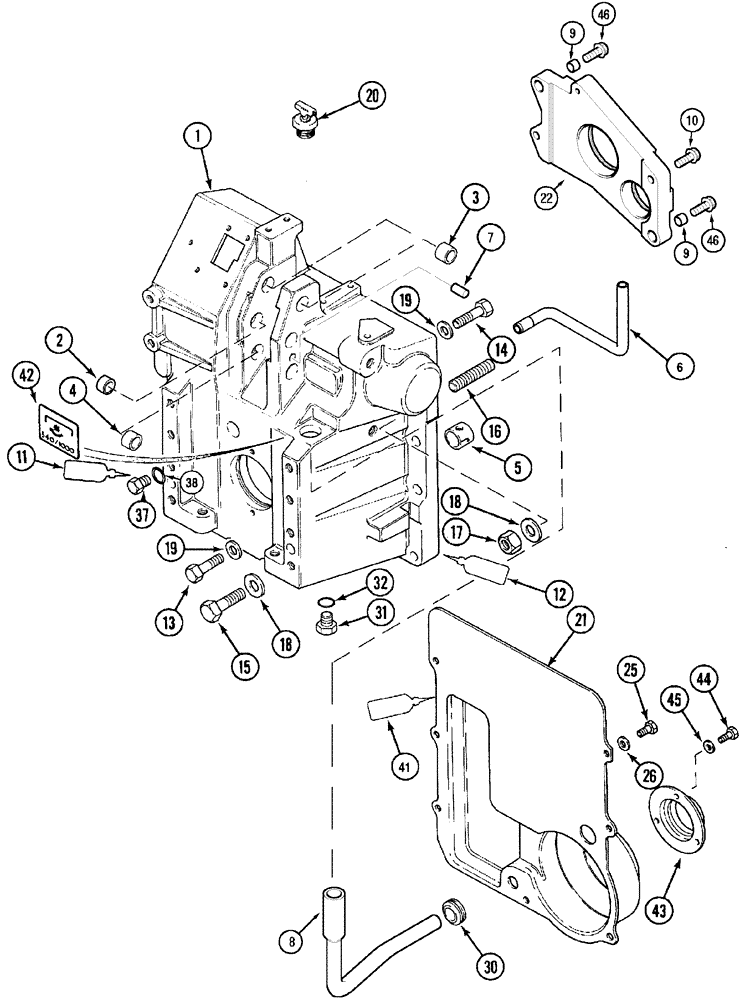

Запчасти Case IH MX120 (06-28) - P.T.O. HOUSING AND OIL BAFFLE (06) - POWER TRAIN

N.A. Only

1шт.

1

241066A1

HOUSING ASSY.

Reversible P.T.O., Includes 2 - 8

1шт.

2

A186977

BUSHING,25.7mm ID x 31.05mm OD x 22mm L

Inner

2шт.

3

1345834C1

PLASTIC PLUG

29 mm

2шт.

4

A186978

BUSHING,25.7mm ID x 32.05mm OD x 25.5mm L

Outer

2шт.

5

117728A1

SLEEVE

1шт.

6

235596A1

PIPE

1шт.

7

A188480

PIN

1шт.

8

141389A2

PIPE,25 mm OD, 251, 166.5 mm Length

1шт.

9

A50011

SLEEVE

2шт.

10

854-12055

BOLT,Hvy Hex, M12 x 55mm, Cl 10.9

2шт.

11

B17577

LOCTITE

No. 242

1шт.

11

B17578

LOCTITE

10 ml

1шт.

11

B17422

LOCTITE

50 ml

1шт.

12

345-173

LOCTITE

1шт.

13

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

9шт.

14

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

15

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

16

1995172C1

STUD

20 x 92 mm

2шт.

17

829-1320

NUT,M20, Cl 10

2шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

19

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

11шт.

20

A180978

FILLER CAP

1шт.

21

A190116

FLANGE COVER CAP

1шт.

22

330181A1

BASE PLATE

1шт.

25

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

7шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

30

A188767

GROMMET

1шт.

31

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

76349

PLUG,9/16" - 18 ORB

PTO Speed Indicator, Incl. 38

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

41

B17501

LOCTITE

6 ml

1шт.

41

B17555

LOCTITE

50 ml

1шт.

41

B17556

LOCTITE

300 ml

1шт.

42

1092074R2

DECAL

540/1000

1шт.

43

1995122C1

OIL SEAL

1шт.

44

865-8010

HEX SOC SCREW,M8 x 10mm, Cl 8.8

3шт.

45

1964298C1

WASHER,8.5mm ID x 13mm OD x 1.6mm Thk

8 mm

3шт.

46

854-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

2шт.
