Запчасти Case IH MX120 (06-22) - FORWARD / NEUTRAL / REVERSE SHUTTLE VALVE (06) - POWER TRAIN

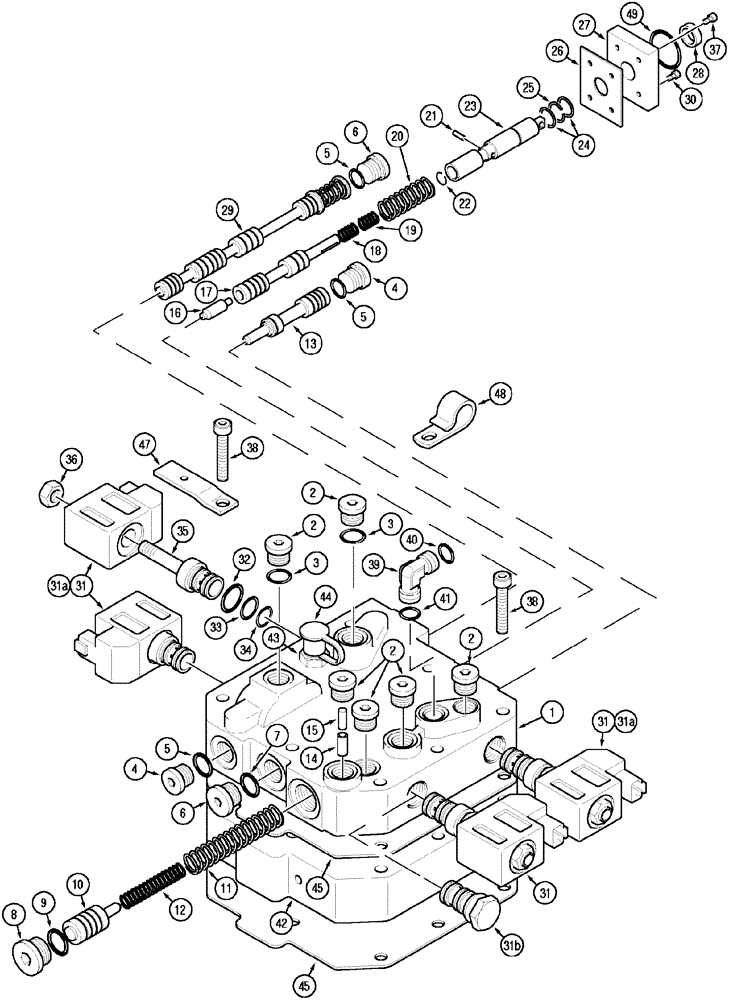

Схема запчастей Case IH MX120 - (06-22) - FORWARD / NEUTRAL / REVERSE SHUTTLE VALVE (06) - POWER TRAIN
38
31a
4
17
5
31
28
2
43
32
2
10
11
27
39
23
24
15
6
40
41
44
31
5
2
38
31
16
45
12
18
3
7
6
42
8
14
21
36
48
26
13
31a
29
9
22
4
20
3
2
19
35
1
33
30
37
49
45
31b
47
34
25
5

Артикул

Название

Примечание

Количество

176304A5

VALVE, CONTROL

4WD, Consists of 1 - 31,32 - 37,43,49

1шт.

179822A5

VALVE, CONTROL

2WD, Consists of 1 - 30,31A,31B - 37,43,49

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 3

6шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

86625138

PLUG,7/18" - 14

Incl. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Incl. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

110384A1

PISTON

1шт.

11

110385A1

VALVE SPRING

1шт.

12

110386A2

VALVE SPRING,13.18mm

1шт.

13

144526A3

SPOOL

1шт.

14

112922A1

PLUG

1шт.

15

838-4816

COTTER PIN,M8 x 16, Slotted

1шт.

16

132558A1

PIN

1шт.

17

229665A2

SPOOL

1шт.

18

193884A1

SPRING

1шт.

19

193885A1

SPRING

1шт.

20

110392A1

VALVE SPRING,20.57mm OD

1шт.

21

121857A1

PIN,3.1mm x 11.5mm

1шт.

22

176387A1

CIRCLIP,12.25mm

1шт.

23

177326A1

THREADED ROD

1шт.

24

110397A1

WASHER

2шт.

25

100-1862

SNAP RING,#62, Ext

1шт.

26

176380A1

GASKET,0.91mm Thk

1шт.

281235A1

COVER

Consists of 27,28,49

1шт.

27

NSS

NOT SOLD SEPARAT

Cover

1шт.

28

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

1шт.

29

229680A1

SPOOL

1шт.

30

877-30630

SET SCREW,Hex Skt, M6 x 30mm, Flat Pt

2шт.

345-49

SEALANT

1 ml, Use with Ref 30

1шт.

31

349295A1

SOLENOID VALVE

4WD, With Screen, Incl. 32 - 36

4шт.

31a

349295A1

SOLENOID VALVE

2WD, With Screen, Incl. 32 - 36

3шт.

31b

177120A1

PLUG

Solenoid, 2WD, Without Creep Speed, Order also 32 - 34

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

34

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

35

NSS

NOT SOLD SEPARAT

Spool

1шт.

36

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

37

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

2шт.

38

828-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

8шт.

39

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 40,41

1шт.

336963A1

ELBOW

With Screen, Consists of 39A,39B,40,41

1шт.

39b

NSS

NOT SOLD SEPARAT

Elbow

1шт.

39c

1980065C3

SCREEN

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

42

199054A3

PLATE

1шт.

43

178889A1

DIAGNOSTIC COUPLER

Incl. 44

1шт.

44

143349A1

DUST CAP

1шт.

45

258697A2

GASKET,0.92mm Thk

2шт.

47

252605A1

SUPPORT

1шт.

48

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

2шт.

49

239-5022

O-RING,Square, 0.062" Thk x 1" ID, -22, Cl 5, 75 Duro

1шт.

49

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

Выбрано товаров: 58
