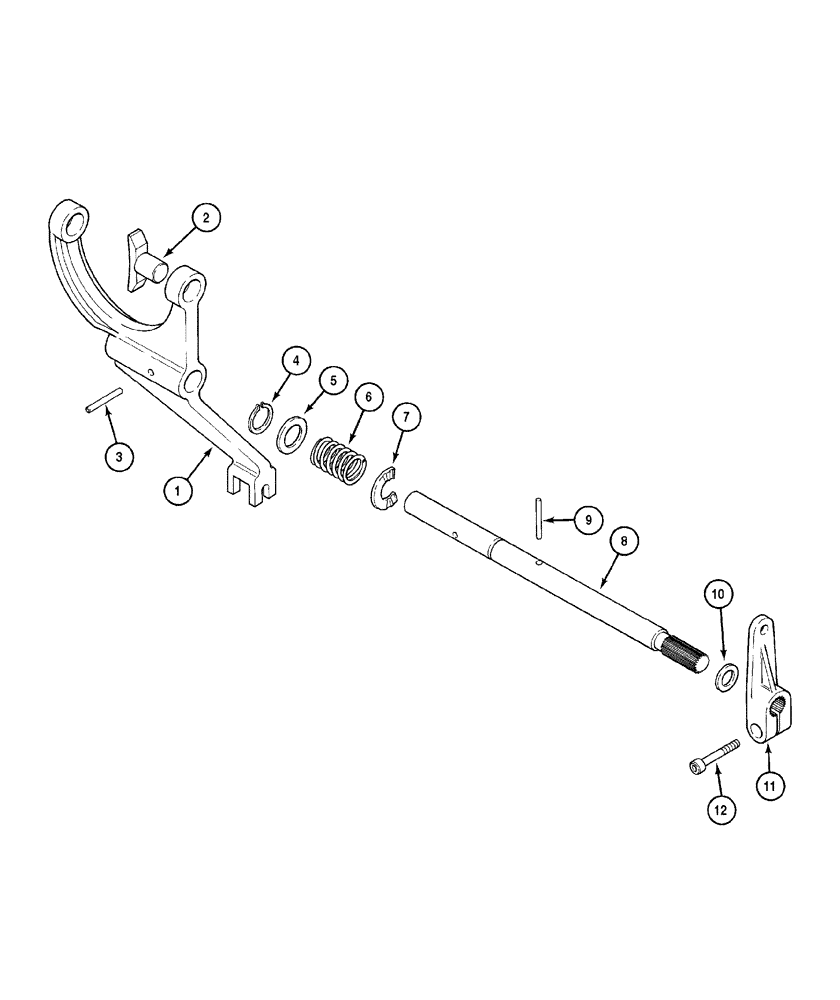

Запчасти Case IH MX120 (06-19) - CREEP SPEED CONTROL (06) - POWER TRAIN

Internal

1шт.

1345959C1

CLUTCH FORK

Consists of 1,2

1шт.

1

NSS

NOT SOLD SEPARAT

Fork

1шт.

2

A178445

FINGER

2шт.

3

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

1шт.

1341000C1

SHAFT

Consists of 4 - 9

1шт.

4

100-1662

SNAP RING,#62, Ext

1шт.

5

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

6

G35350

SPRING

1шт.

7

A190098

WASHER, THRUST

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft

1шт.

9

37-1424

DOWEL,1/4" x 1 1/2"

1шт.

10

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

1шт.

11

1531292C1

LEVER

1шт.

12

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

1шт.
