Запчасти Case IH MX120 (06-16) - GEAR SHIFT CONTROLS (06) - POWER TRAIN

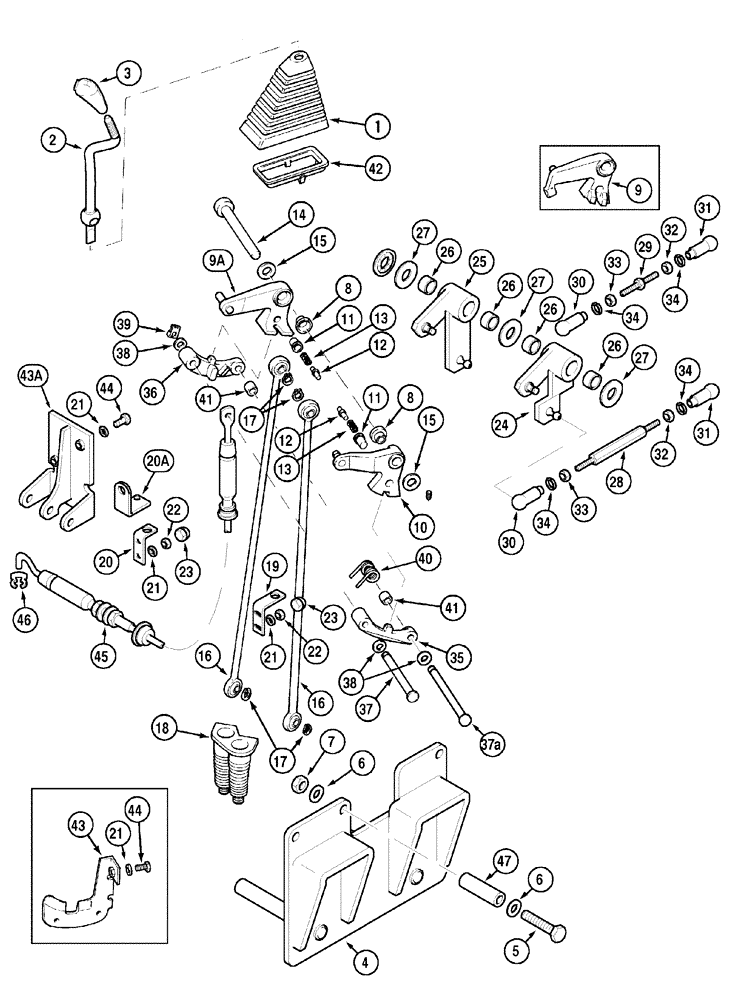

Схема запчастей Case IH MX120 - (06-16) - GEAR SHIFT CONTROLS (06) - POWER TRAIN
22
35
20a
19
41
39
15
47
7
41
12
30
36
37a
12
1
11
32
21
15
5
45
28
44
26
2
17
32
26
29
17
46
14
38
18
22
21
26
10
8
40
30
9
23
34
3
21
43a
31
13
27
9a
34
34
13
6
33
31
4
44
11
34
38
25
20
8
16
33
42
23
6
24
27
16
21
43
26
37
27

Артикул

Название

Примечание

Количество

Synchromesh

1шт.

1

1533271C1

BOOT

1шт.

2

237761A1

LEVER

Build Date 4-27-1999, Serial Range: -JJA0101628

1шт.

2

314138A1

LEVER

Build Date 4-27-1999, Start Serial: JJA0101628

1шт.

3

1958950C3

HANDLE GRIP

1шт.

4

251556A1

SUPPORT ASSY.

1шт.

5

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

3шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

7

829-1412

NUT,M12, Cl 10.9

3шт.

8

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

2шт.

9

238726A1

ARM

Right, Includes 1534651C1

1шт.

9a

311736A1

ARM ASSY.

Right, Includes 1534651C1

1шт.

10

238725A1

ARM

Left, Includes 1534651C1

1шт.

10a

311737A1

ARM ASSY.

Left, Includes 1534651C1

1шт.

1534651C1

RING ASSY.

Consists of 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Bushing

2шт.

12

NSS

NOT SOLD SEPARAT

Pin

2шт.

13

NSS

NOT SOLD SEPARAT

Spring

2шт.

14

234408A2

PIN,M27 x 1.5 x 3"

1шт.

15

T102056

WASHER

2шт.

16

238922A1

STEM

2шт.

17

1535283C1

CIRCLIP

M8

4шт.

17

800-437

CIRCLIP,M7

4шт.

18

276599A1

BELLOWS

1шт.

18

223191A1

BELLOWS

N.A. Only, Serial No. JJA0077014, Build Date 4-22-1997

1шт.

19

245752A1

SUPPORT

Interlock

1шт.

20

245554A1

SUPPORT

Magnetic

1шт.

20a

339980A1

SUPPORT

Actuator

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

22

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

23

3221725R1

CAP

6 mm

2шт.

24

199478A2

LEVER ASSY.

1st and 2nd Speed, Includes 26

1шт.

25

199480A2

LEVER ASSY.

3rd and 4th Speed, Includes 26

1шт.

26

1533538C1

PLASTIC RING

2шт.

27

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

3шт.

28

223278A2

STEM

1st and 2nd Speed

1шт.

29

223279A2

STEM

3rd and 4th Speed

1шт.

30

T103566

BALL JOINT

2шт.

31

T103567

BALL SOCKET,M8

LH Thread

2шт.

32

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

2шт.

33

933618R1

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

34

3233348R1

CLIP

4шт.

35

120188A2

PAWL

Right

1шт.

36

120189A1

PAWL

Left

1шт.

37

120190A1

HEADED PIN

6 x 45 mm

2шт.

37a

309399A1

HEADED PIN

6 x 54 mm

2шт.

38

933907R1

WAVE WASHER,M6.4 ID x 12 OD x .5 Thk

4шт.

39

T102674

CLIP

2шт.

40

131688A2

SPRING

1шт.

41

120191A2

SPACER

2шт.

42

241536A1

SUPPORT

1шт.

43

199453A1

SUPPORT

1шт.

43a

309397A1

SUPPORT ASSY.

1шт.

44

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

45

245844A2

CABLE ASSY.

1шт.

46

800-436

CIRCLIP,M6

1шт.

47

321772A1

SPACER

3шт.

Выбрано товаров: 57
