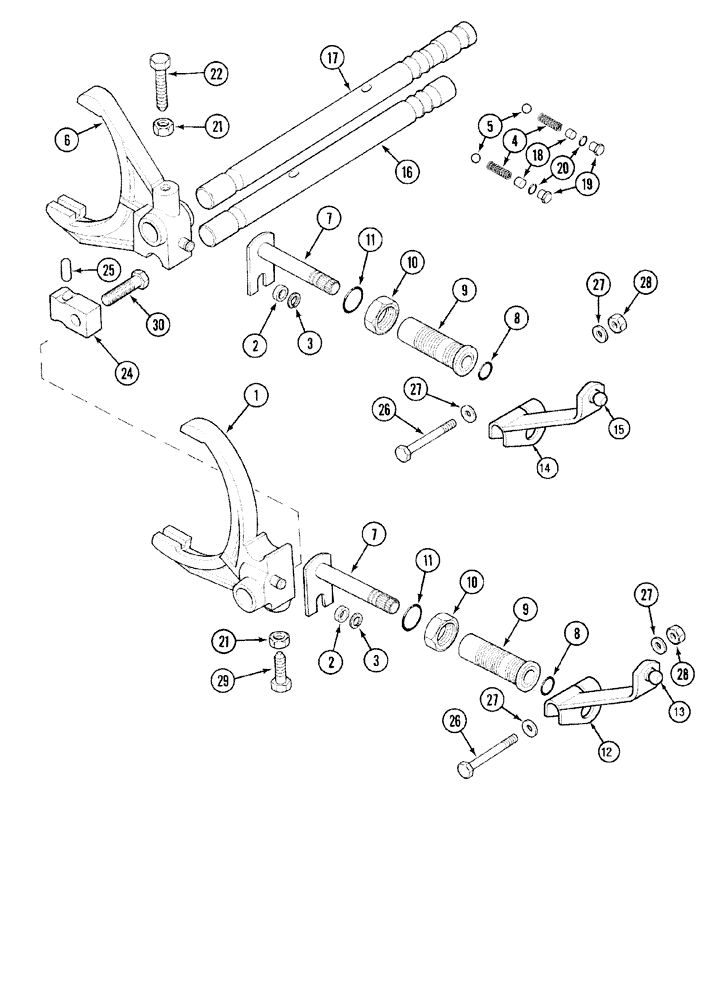

Запчасти Case IH MX120 (06-15) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A188235

FORK

1st and 2nd Gear

1шт.

2

A178954

SLEEVE

2шт.

3

100-3344

SNAP RING,#X43, .438" Dia, E-Type

2шт.

4

A175972

SPRING

2шт.

5

211-1014

BALL,7/16" Dia

24,CRS

2шт.

6

A188237

FORK

3rd and 4th Gear

1шт.

7

1341113C1

LEVER

2шт.

8

638-52150

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

2шт.

9

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

2шт.

10

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

222343A1

LEVER ASSY.

1st and 2nd Gear, Incl. 13

1шт.

315497A1

LEVER ASSY.

1st and 2nd Gear, Incl. 13

1шт.

13

3234708R1

BALL STUD

BALL PIN

1шт.

14

222346A2

LEVER ASSY.

3rd and 4th Gear, Incl. 15

1шт.

315499A1

LEVER ASSY.

3rd and 4th Gear, Incl. 15

1шт.

15

3234708R1

BALL STUD

BALL PIN

1шт.

16

1995079C1

SLIPPER

1шт.

17

1995078C1

SLIPPER

If So Equipped

1шт.

18

A186518

SPACER

2шт.

19

129998

PLUG,1/2" - 20 ORB

Incl. 20

2шт.

20

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

21

829-1310

NUT,M10, Cl 10

2шт.

22

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

24

1995497C1

SUPPORT

1шт.

25

A186962

PIN,10.1mm OD x 23.53mm L

1шт.

26

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

27

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

28

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

29

1345714C1

BOLT,Hex, M10 x 30mm, Cone Pt

M10 x 30

1шт.

30

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
