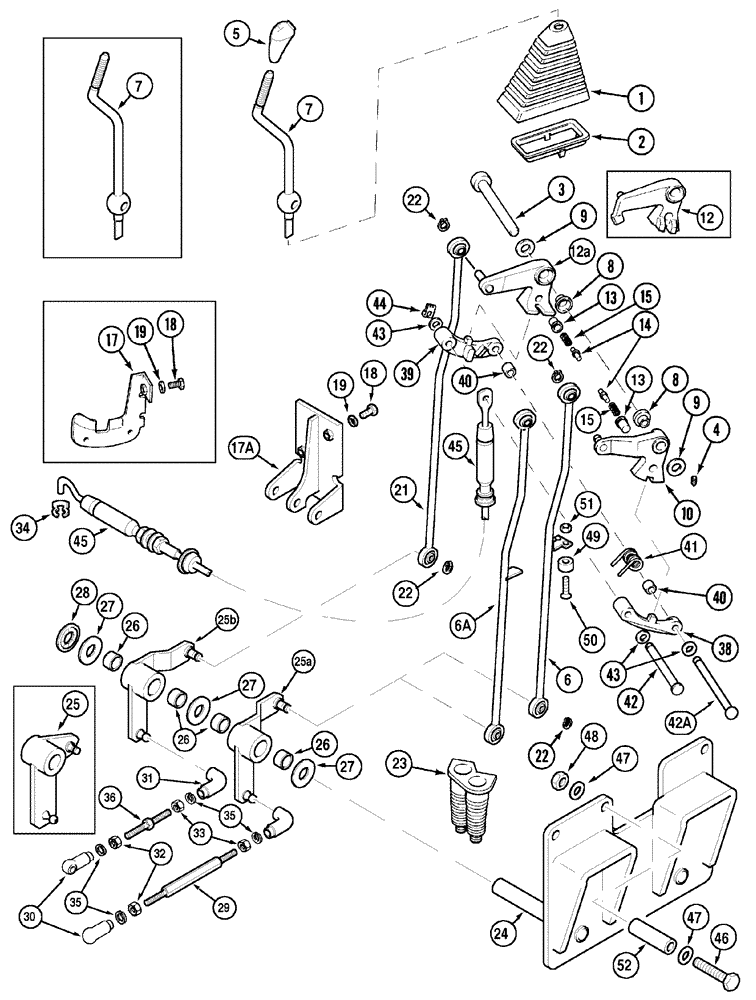

Запчасти Case IH MX120 (06-14) - RANGE SHIFT CONTROLS - SYNCHROMESH (06) - POWER TRAIN

1

1533271C1

BOOT

1шт.

2

241536A1

SUPPORT

1шт.

3

234408A2

PIN,M27 x 1.5 x 3"

1шт.

4

878-2068

SET SCREW,Hex Skt, M6 x 6mm, Cone Pt

6 x 8 mm

1шт.

5

1958951C3

BALL KNOB

1шт.

6

247382A2

TRUSS ROD

Magnetic

1шт.

6a

347402A1

STEM

Actuator

1шт.

7

237760A2

LEVER

1шт.

7

314139A1

LEVER

1шт.

8

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

2шт.

9

T102056

WASHER

2шт.

10

239151A1

ARM

Right, Includes 1534651C1

1шт.

10a

310683A1

ARM ASSY.

Right, Includes 1534651C1

1шт.

12

239148A1

ARM

Left, Includes 1534651C1

1шт.

12a

310684A1

ARM ASSY.

Left, Includes 1534651C1

1шт.

1534651C1

RING ASSY.

Consists Of 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Bushing

2шт.

14

NSS

NOT SOLD SEPARAT

Pin

2шт.

15

NSS

NOT SOLD SEPARAT

Spring

2шт.

17

199453A1

SUPPORT

2шт.

17a

309397A1

SUPPORT ASSY.

1шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

238923A1

STEM

1шт.

22

1535283C1

CIRCLIP

M8

4шт.

22

800-437

CIRCLIP,M7

4шт.

23

276599A1

BELLOWS

1шт.

23

223191A1

BELLOWS

N.A. Only, Serial No. JJA0077014, Build Date 4-22-1997

1шт.

24

251556A1

SUPPORT ASSY.

1шт.

25

237071A1

LEVER ASSY.

1st and 2nd Gear, Includes 26

2шт.

25a

318482A1

LEVER ASSY.

1st and 2nd Gear, Includes 26

2шт.

25

237072A1

LEVER ASSY.

3rd and 4th Gear, Includes 26

2шт.

25b

318483A1

LEVER ASSY.

3rd and 4th Gear, Includes 26

2шт.

26

1533538C1

PLASTIC RING

2шт.

27

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

3шт.

28

1533658C1

CLAMP,19.4mm ID x 36.5mm OD x 3mm Thk

1шт.

29

199481A2

STEM

1st and 2nd Gear, 294mm (11.57") long

1шт.

30

T103566

BALL JOINT

2шт.

31

T103567

BALL SOCKET,M8

LH Thread

2шт.

32

933618R1

THIN NUT,Thin, M8 x 1.25, Cl 04

LH Thread

2шт.

33

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

2шт.

34

229667A1

CLIP,ELECTRICAL

1шт.

34

800-436

CIRCLIP,M6

1шт.

35

3233348R1

CLIP

4шт.

36

199482A2

STEM

3rd and 4th Gear

1шт.

38

120188A2

PAWL

Right

1шт.

39

120189A1

PAWL

Left

1шт.

40

120191A2

SPACER

2шт.

41

131688A2

SPRING

1шт.

42

120190A1

HEADED PIN

6 x 45 mm

2шт.

42a

309399A1

HEADED PIN

6 x 54 mm

2шт.

43

933907R1

WAVE WASHER,M6.4 ID x 12 OD x .5 Thk

4шт.

44

T102674

CLIP

1шт.

45

245844A2

CABLE ASSY.

1шт.

46

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

3шт.

47

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

48

829-1412

NUT,M12, Cl 10.9

3шт.

49

140699A1

FITTING

2шт.

50

140700A2

SCREW,Phil Flat Hd, Csk, M4 x 40mm, Brass

4 x 40 mm

2шт.

50

295278A1

SCREW

4 x 25 mm

2шт.

51

824-1404

NUT,M4, Cl 5

2шт.

52

321772A1

SPACER

3шт.
