Запчасти Case IH MX120 (06-11) - TRANSMISSION DIFFERENTIAL (06) - POWER TRAIN

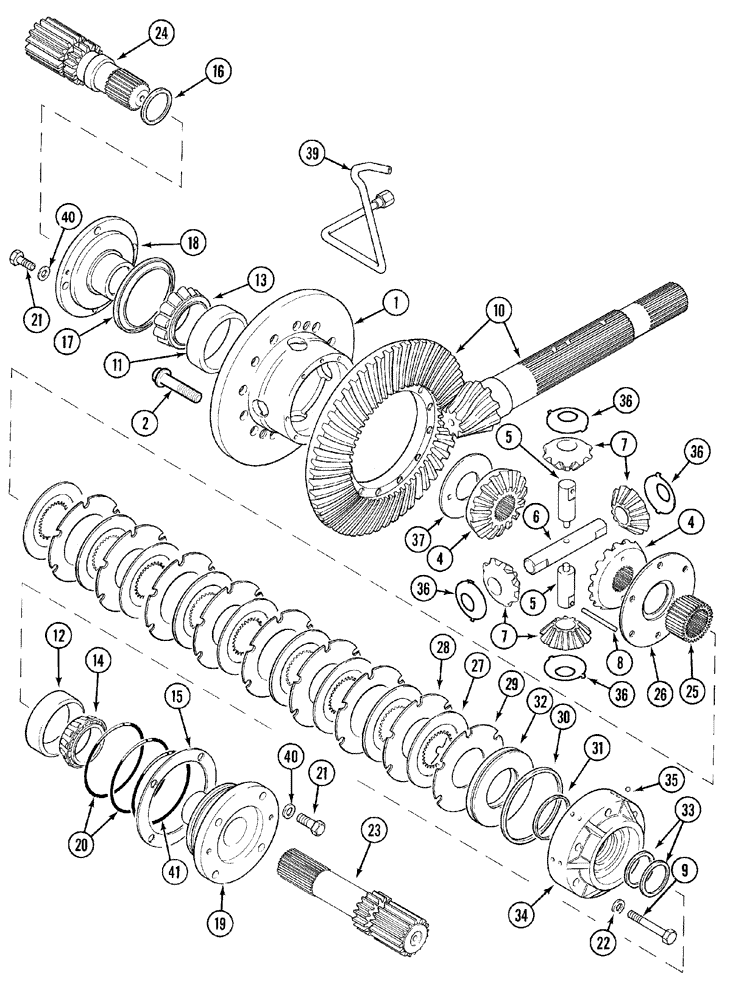

Схема запчастей Case IH MX120 - (06-11) - TRANSMISSION DIFFERENTIAL (06) - POWER TRAIN
36
34
1
2
14
15
19
4
32
9
13
36
7
29
40
37
20
12
23
33
25
41
39
24
40
17
21
4
6
10
31
27
30
7
5
22
18
21
5
28
11
35
8
16
26
36
36

Артикул

Название

Примечание

Количество

1

298932A1

FLANGE

NOTE: The three tabs on the upper portion of the latest design of this flange may interfere with the mating parts in some applications. The dealer has the option of having the three tabs machined to eliminate the interference.

1шт.

2

854-16045

BOLT,Hvy Hex, M16 x 40mm, Cl 10.9

12шт.

1345842C2

SERVICE KIT

Differential, Consists of 4 - 8,26,36,37

1шт.

4

NSS

NOT SOLD SEPARAT

Gear

2шт.

5

NSS

NOT SOLD SEPARAT

Pin

2шт.

6

NSS

NOT SOLD SEPARAT

Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Gear

4шт.

8

38-11652

LOCK PIN,6.35mm OD x 82.55mm L, Slotted

2шт.

9

868-12090

12 PT SCREW,M12 x 90mm, Cl 12.9

6шт.

10

1341189C4

GEAR, BEVEL

BEVEL GEAR , 9/55T

1шт.

11

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

1шт.

12

928330C1

BEARING CUP,110mm OD x 17.46mm W

1шт.

13

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

1шт.

14

928331C91

ROLLER BEARING,69.98mm ID x 25mm W

1шт.

15

A175236

SHIM,0.08mm Thk

1шт.

15

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

1шт.

15

A175238

SHIM,0.25mm Thk

1шт.

15

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

1шт.

16

A188495

SEALING RING,48.37mm ID x 55.93mm OD x 2.95mm Thk

SEALRING

1шт.

17

A188501

SEAL,118.02mm ID x 134.07mm OD x 9mm Thk

1шт.

18

1341074C1

FLANGE

1шт.

19

1345919C1

BALL RACE

1шт.

20

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

2шт.

21

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

22

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

23

A190141

SHAFT

16T

1шт.

24

A188873

SHAFT

16T

1шт.

25

1341293C1

HUB

1шт.

26

1345662C1

DISC

1шт.

27

A188853

DISC,68.4mm ID x 136mm OD x 2.13mm Thk

9шт.

28

1345663C1

DISC

8шт.

29

1345661C1

DISC

1шт.

30

A188856

SEALING RING,127.75mm ID x 134.11mm OD x 3.18mm Thk

1шт.

31

A188861

SEAL,78.98mm ID x 83.7mm OD x 3.18mm Thk

1шт.

32

A188851

PISTON

1шт.

33

1345877C1

SEALING RING

2шт.

34

1995292C1

CAGE

Includes 35

1шт.

35

211-1308

BALL,1/4" Dia

1шт.

36

124869A1

THRUST WASHER,29mm ID x 65.54mm OD x 2.3mm Thk

4шт.

37

1345640C1

THRUST WASHER,47.5mm ID x 109mm OD x 3.2mm Thk

1шт.

39

A188692

HYD TUBE

1шт.

40

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

10 mm

8шт.

41

A188778

SEAL ASSY.

With O-Ring

1шт.

Выбрано товаров: 43
