Запчасти Case IH MX120 (06-05) - SPEED TRANSMISSION - DROP SHAFT - SYNCHROMESH (06) - POWER TRAIN

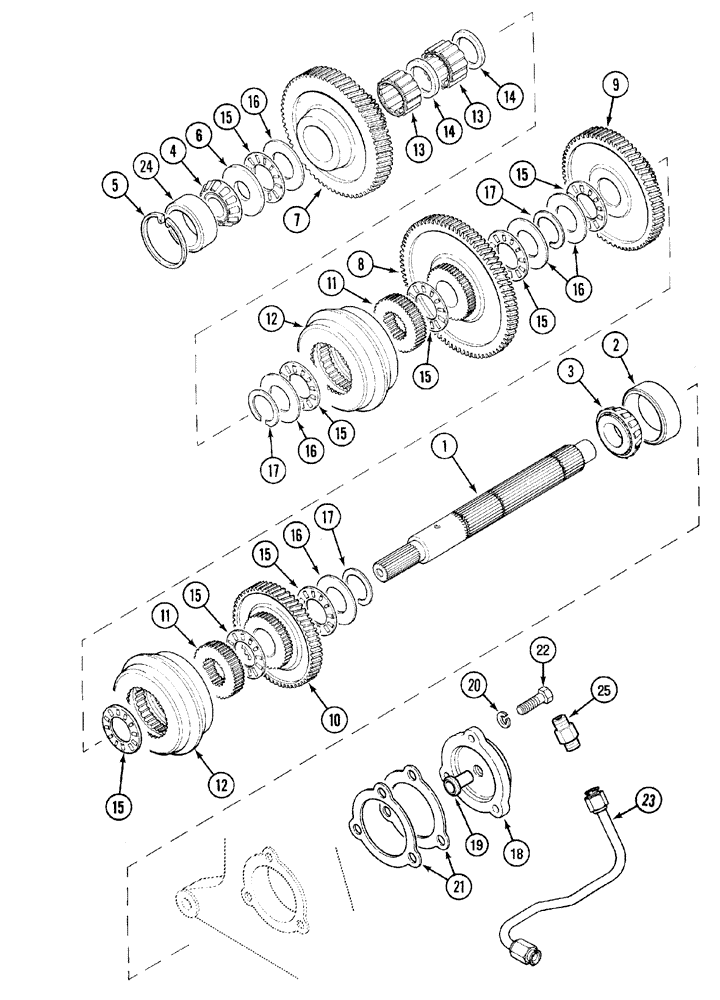

Схема запчастей Case IH MX120 - (06-05) - SPEED TRANSMISSION - DROP SHAFT - SYNCHROMESH (06) - POWER TRAIN
12
16
16
15
15
5
2
18
22
8
21
9
15
15
15
15
11
17
24
23
6
12
25
1
14
16
7
10
13
19
4
16
17
14
15
3
15
17
11
13
20

Артикул

Название

Примечание

Количество

1

1345831C1

SHAFT

1шт.

2

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

1шт.

3

206214R91

CONE,36.49mm ID x 25.65mm W

1шт.

4

1345711C1

ROLLER BEARING,38.11mm ID x 25.57mm W

1шт.

5

103-21300

SNAP RING,3.00", Int, #300

1шт.

6

A188478

WASHER, THRUST,38.33mm ID x 65mm OD x 4.5mm Thk

1шт.

7

1345821C1

PINION

68T, Driven, 2nd Speed

1шт.

8

1345820C1

PINION

86T, Driven, 1st Speed

1шт.

9

1345822C1

PINION

73T, Driven, 3rd Speed

1шт.

10

1345823C1

PINION

56T, Driven, 4th Speed

1шт.

11

1345829C1

SYNCHRO BODY

2шт.

12

1345824C1

SYNCHRONIZER

2шт.

13

A188474

NEEDLE BEARING,44.39mm ID x 57.14mm OD x 26.57mm W

2шт.

14

A188492

SPACER

2шт.

15

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

8шт.

16

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

5шт.

17

100-16175

SNAP RING,#175, Ext

3шт.

18

1995160C1

COVER

Includes 19

1шт.

19

NSS

NOT SOLD SEPARAT

Tube

1шт.

20

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

21

A183645

SHIM,77.5mm ID x 94mm OD x 0.09mm Thk

1шт.

21

A183646

SHIM,77.5mm ID x 100mm OD x 0.14mm Thk

1шт.

21

A183647

SHIM,77.5mm ID x 100mm OD x 0.28mm Thk

1шт.

21

A183648

SHIM,77.5mm ID x 94mm OD x 0.69mm Thk

1шт.

22

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

23

1995158C1

PIPE

1шт.

24

1345712C1

BEARING, CUP,76.21mm OD x 18.95mm W

1шт.

25

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

Выбрано товаров: 28
