Запчасти Case IH MX120 (06-03) - SPEED TRANSMISSION - INPUT SHAFT - SYNCHROMESH (06) - POWER TRAIN

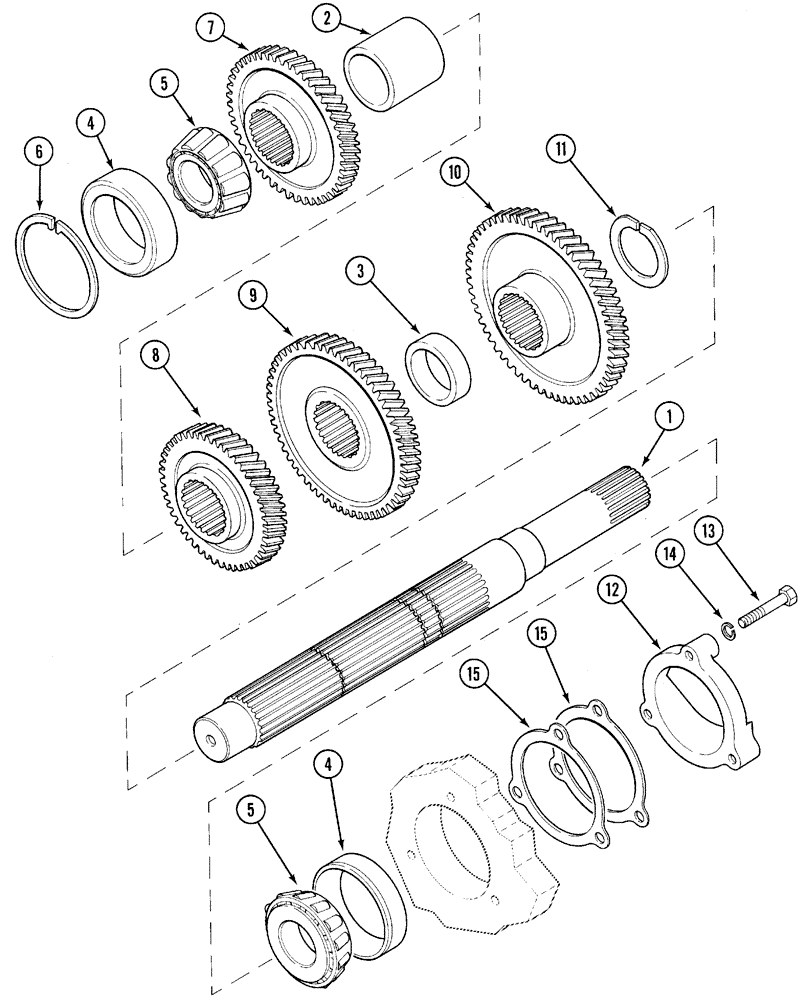

Схема запчастей Case IH MX120 - (06-03) - SPEED TRANSMISSION - INPUT SHAFT - SYNCHROMESH (06) - POWER TRAIN
1
5
5
12
15
11
13
11
14
1
15
8
1
10
2
7
1
4

Артикул

Название

Примечание

Количество

1

A183905

DRIVE SHAFT

1шт.

2

A175597

SPACER

1st and 2nd Gear

1шт.

3

A186339

SPACER

3rd and 4th Gear

1шт.

4

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

2шт.

5

206214R91

CONE,36.49mm ID x 25.65mm W

2шт.

6

103-21300

SNAP RING,3.00", Int, #300

1шт.

7

A183833

PINION

46T, Drive, 2nd Speed

1шт.

8

A183837

PINION

48T, Drive, 1st Speed

1шт.

9

A183841

PINION

61T, Drive, 3rd Speed

1шт.

10

A188697

PINION

58T, Drive, 4th Speed

1шт.

11

100-16175

SNAP RING,#175, Ext

1шт.

12

A183632

RETAINER

1шт.

13

826-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

14

892-11010

LOCK WASHER,M10

3шт.

15

A183645

SHIM,77.5mm ID x 94mm OD x 0.09mm Thk

1шт.

15

A183646

SHIM,77.5mm ID x 100mm OD x 0.14mm Thk

1шт.

15

A183647

SHIM,77.5mm ID x 100mm OD x 0.28mm Thk

1шт.

15

A183648

SHIM,77.5mm ID x 94mm OD x 0.69mm Thk

1шт.

Выбрано товаров: 18
