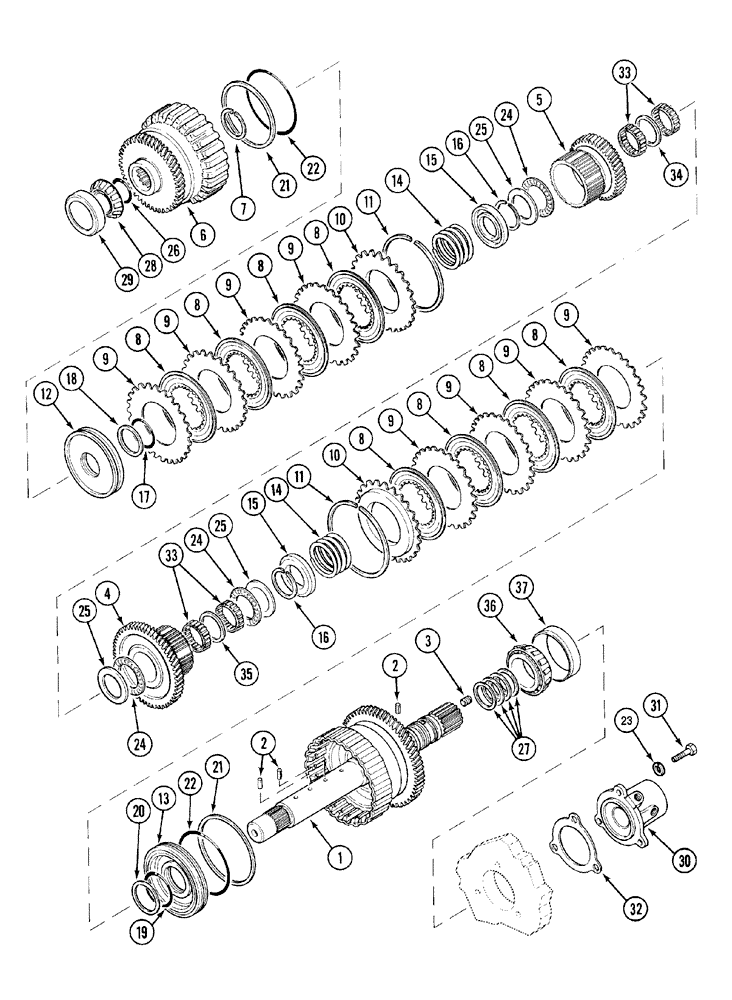

Запчасти Case IH MX120 (06-02) - SPEED TRANSMISSION - INPUT SHAFT - POWERSHIFT (06) - POWER TRAIN

-

A : Trans No. - JKA0127945

1шт.

-

B : Trans No. JKA0127946 -

1шт.

1a

113555A1

SHAFT ASSY.

447.2mm, Includes 2,3

1шт.

Verify Shaft Lenght before Ordering

1шт.

1b

228791A1

SHAFT ASSY.

465.3mm, Includes 2,3

1шт.

Verify Shaft Lenght before Ordering

1шт.

2

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

3шт.

3

1342851C1

PLUG

10 mm

3шт.

3

1345887C1

PLUG

9 mm

3шт.

4a

1995342C2

SPROCKET ASSY.

51T, Drive, 3rd Speed

1шт.

4b

228777A1

PINION

51T, Drive, 3rd Speed

1шт.

5a

1995348C1

SPROCKET ASSY.

41T, Drive, 1st Speed

1шт.

5b

228778A1

GEAR

41T, Drive, 1st Speed

1шт.

6a

1995346C1

SPROCKET ASSY.

46T, Drive, 2nd Speed

1шт.

6b

246450A1

SPROCKET ASSY.

46T, Drive, 2nd Speed

1шт.

7

100-11175

SNAP RING,#175, Ext

1шт.

8

245297A1

NOTCHED DISK

Hardened, 3rd Speed C3

4шт.

8

1997129C1

NOTCHED DISK

2nd Speed C2, 4th Speed C4

8шт.

8

1997129C1

NOTCHED DISK

1st Speed C1

4шт.

9

A175806

PLATE

8шт.

10

1997122C1

PLATE

2шт.

11a

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

2шт.

11b

A158227

CIRCLIP

2шт.

12

A159239

PISTON

1шт.

13

A159292

PISTON

121.8 x 20.65 mm

1шт.

14

A188080

SPRING

2шт.

15

A188044

RETAINER

2шт.

16

100-16175

SNAP RING,#175, Ext

2шт.

17

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32

1шт.

18

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

1шт.

19

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

19

238-7137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

(Replaces 238-5137)

1шт.

20

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING , Inner

1шт.

21

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

Outer

2шт.

22

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

2шт.

22

238-7156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 7, 75 Duro

(Replaces 238-5156)

2шт.

23

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

24

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

3шт.

25

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

3шт.

26

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

2nd Gear

1шт.

27

1995100C1

SEAL,41.66mm ID x 44.98mm OD x 2.38mm Thk

4шт.

28

206214R91

CONE,36.49mm ID x 25.65mm W

1шт.

29

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

1шт.

30

1995099C1

HUB

1шт.

31

866-10035

12 PT SCREW,Flg, M10 x 35mm, Cl 12.9

3шт.

32

A188648

SHIM,83.7mm ID x 119.5mm OD x 0.09mm Thk

1шт.

32

A188649

SHIM,83.7mm ID x 119.5mm OD x 0.14mm Thk

1шт.

32

A188650

SHIM,83.7mm ID x 119.5mm OD x 0.28mm Thk

1шт.

32

A188651

SHIM,83.7mm ID x 119.5mm OD x 0.69mm Thk

1шт.

33

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

4шт.

34a

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

1шт.

34b

228800A1

SPACER

1шт.

35a

A178469

RING,46.25mm ID x 49.8mm OD x 2.29mm Thk

1шт.

35b

228801A1

SPACER

1шт.

36

1995417C1

BEARING ASSY,46.04mm ID x 25.48mm W

1шт.

37

130503H

BEARING CUP

3-17/64

1шт.
