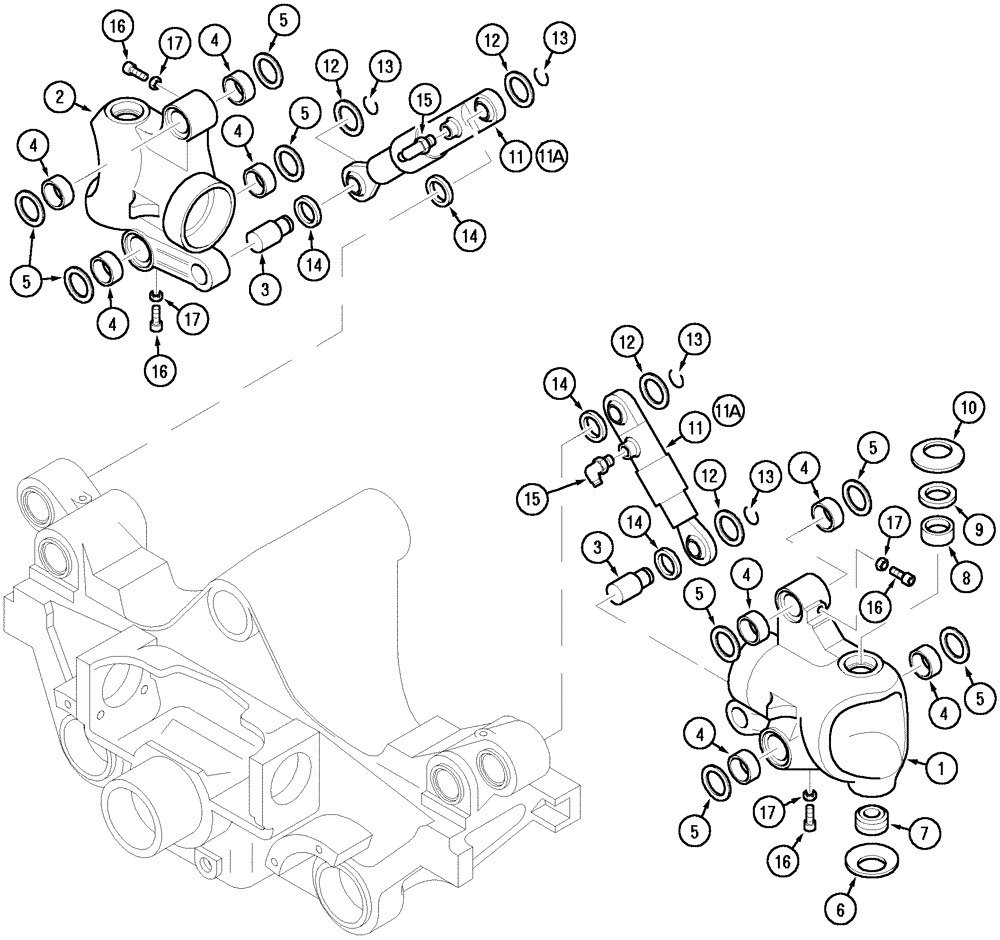

Запчасти Case IH MX120 (05-13) - FRONT AXLE SUSPENSION (05) - STEERING

Axle 20:25S

1шт.

1

340505A1

FINAL DRIVE HOUSING

RH, Includes 3,4,5

1шт.

2

340504A1

FINAL DRIVE HOUSING

LH, Includes 3,4,5

1шт.

3

NSS

NOT SOLD SEPARAT

PIN, Pivot

1шт.

4

365704A1

BUSHING

4шт.

5

340444A1

WASHER

4шт.

6

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

2шт.

7

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

8

N14372

BUSHING

2шт.

9

144611A1

SHIM

2шт.

10

122262A1

BELLEVILLE WASHER

2шт.

11

340403A1

HYDRAULIC CYLINDER

2шт.

11a

1-33-741-087

SEAL KIT

1шт.

12

340445A1

THRUST WASHER

4шт.

13

800-5125

CIRCLIP,M25, External

4шт.

14

340446A1

WASHER

4шт.

15

340449A1

HYD CONNECTOR

2шт.

16

340412A1

BOLT

M12 x 40

4шт.

17

340415A1

NUT

M12

4шт.
