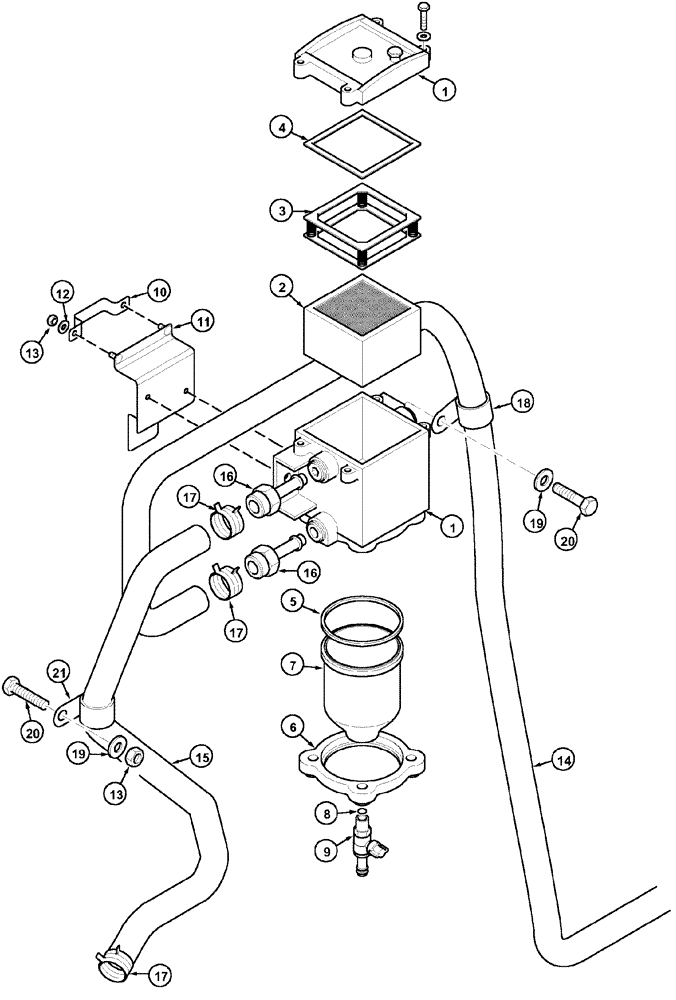

Запчасти Case IH MX110 (03-06) - FUEL LINES AND FILTER SYSTEM (03) - FUEL SYSTEM

UZBEKISTAN

1шт.

1

336429A2

FUEL FILTER

Consists of 2-9

1шт.

2

336430A1

FUEL FILTER

1шт.

3

336431A1

FRAME

1шт.

4

336432A1

GASKET

1шт.

5

336433A1

SEAL,70mm ID x 78mm OD x 3mm Thk

1шт.

6

369841A1

RETAINER

1шт.

7

369842A1

FILTER BOWL

1шт.

8

369843A1

O-RING,2.5mm Thk x 10.5mm ID

1шт.

9

369844A1

DRAINCOCK/TAP SUPPLY

1шт.

10

359860A1

MOUNTING CLIP

1шт.

11

368334A1

SUPPORT

1шт.

12

892-11008

LOCK WASHER,8mm ID

2шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

361516A1

HOSE

Cut from 194882A1

1шт.

15

359993A2

HOSE

Cut from 194882A1

1шт.

16

366844A1

FITTING

2шт.

17

1348264C1

HOSE CLAMP

3/8 ID

1шт.

18

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.
