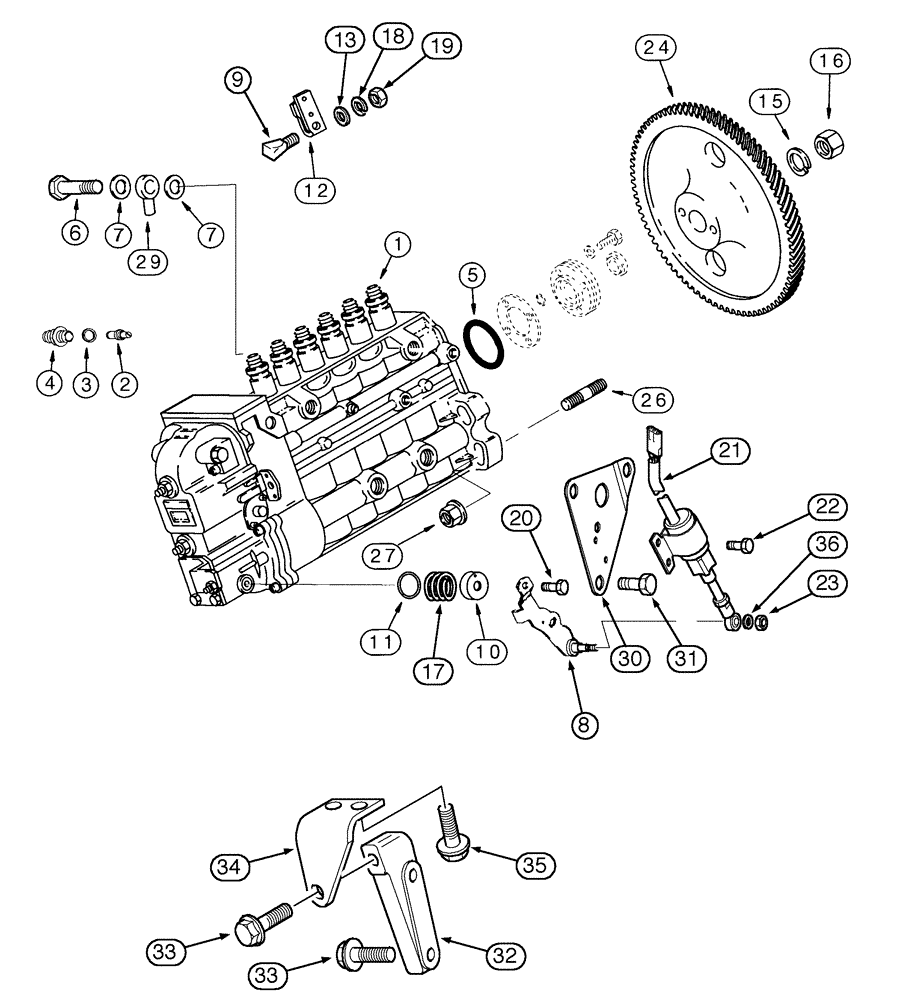

Запчасти Case IH MX110 (03-03) - FUEL INJECTION PUMP - MX100, MX110 (03) - FUEL SYSTEM

1

J932476

PUMP, FUEL INJECTION

PUMP, INJECTION , MX100, Includes 2 - 19

1шт.

1

JR932476

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - MX100

1шт.

1

JC932476

CORE-INJECTION PUMP

Return Number, INJECTION PUMP - MX100

1шт.

1

J932477

PUMP, FUEL INJECTION

PUMP, INJECTION , MX110, Includes 2 - 19

1шт.

1

JR932477

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - MX110

1шт.

1

JC932477

CORE-INJECTION PUMP

Return Number, INJECTION PUMP - MX110

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J935032

SEAL

1шт.

6

J912886

VALVE

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

J802998

PACKAGE,SERVICE

Includes 8,23,36

1шт.

8

NSS

NOT SOLD SEPARAT

Lever

1шт.

9

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

10

691292C1

RETAINER

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

12

1808728C1

LEVER

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

A77775

LOCK WASHER

1шт.

16

A41852

LOCK NUT

1шт.

17

J912890

SPRING

1шт.

18

892-11006

LOCK WASHER,M6

1шт.

19

829-1306

NUT,M6, Cl 10

1шт.

20

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

21

J932529

SOLENOID

1шт.

22

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

23

832-41306

NUT,M6 x 1, Cl 10

1шт.

24

J934636

PINION

1шт.

26

J915036

STUD

55 mm (2-5/32 in)

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

29

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

30

J930589

SUPPORT

1шт.

31

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

3шт.

32

J863312

BRACE

1шт.

33

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

3шт.

34

J863311

BRACE

1шт.

35

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

36

J934022

WASHER

1шт.

37

12736D

ELECTRICAL WIRE

WIRE , If So Equipped, Not Illustrated

1шт.
