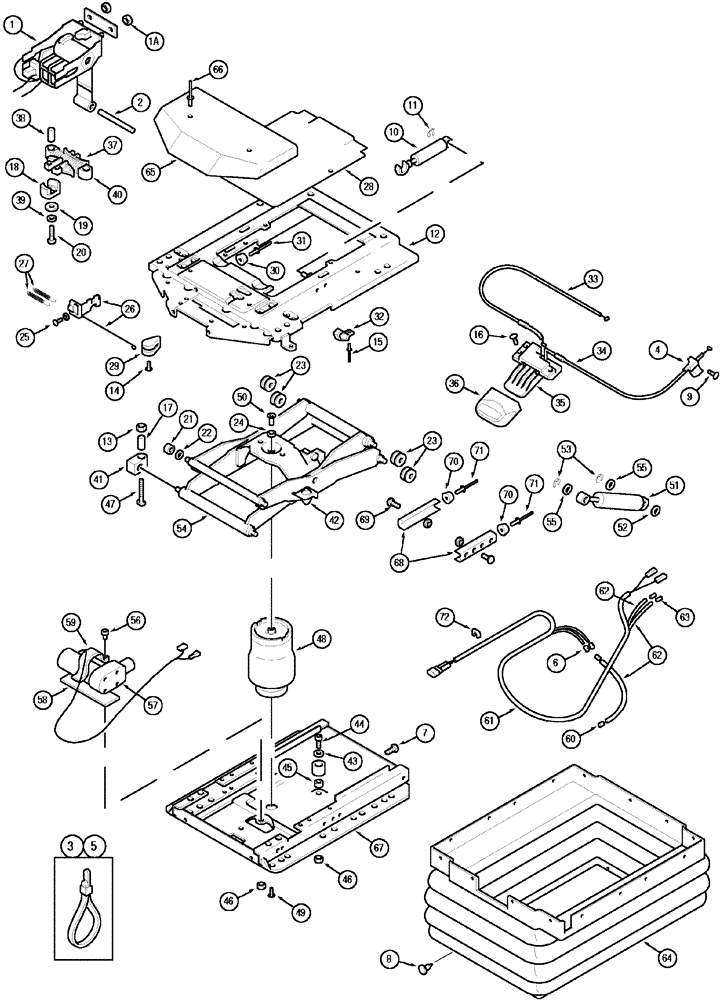

Запчасти Case IH MX110 (09-52) - AIR SUSPENSION GRAMMER (09) - CHASSIS/ATTACHMENTS

De-Luxe

1шт.

Europe Only

1шт.

254762A1

SUSPENSION

Consists Of 1 - 72

1шт.

254763A2

LEVER ASSY.

Height Control, Consists Of 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Controller, With Nuts 1A

1шт.

1b

60-4845T1

NUT

M8

2шт.

2

NSS

NOT SOLD SEPARAT

Bolt

1шт.

3

NSS

NOT SOLD SEPARAT

Strap

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

NSS

NOT SOLD SEPARAT

Strap

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting

2шт.

7

NSS

NOT SOLD SEPARAT

Screw

1шт.

8

3225292R1

PLUG

1шт.

9

NSS

NOT SOLD SEPARAT

Screw

1шт.

254764A1

SHOCK ABSORBER

Shock Absorber, Consists Of 8,10,11

1шт.

10

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

254765A1

PLATE ASSY.

Housing, Consists Of 8,11 - 29

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

12

NSS

NOT SOLD SEPARAT

Housing, Upper

1шт.

13

60-4845T1

NUT

M8

2шт.

14

NSS

NOT SOLD SEPARAT

Screw

1шт.

15

NSS

NOT SOLD SEPARAT

Rivet

2шт.

16

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

3шт.

17

NSS

NOT SOLD SEPARAT

Tube

2шт.

18

NSS

NOT SOLD SEPARAT

Bumper

1шт.

19

NSS

NOT SOLD SEPARAT

Washer

2шт.

20

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

21

60-4879T1

NEEDLE BEARING

2шт.

22

NSS

NOT SOLD SEPARAT

Ring, Felt

2шт.

23

NSS

NOT SOLD SEPARAT

Roller

4шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

NSS

NOT SOLD SEPARAT

Screw

1шт.

26

NSS

NOT SOLD SEPARAT

Lever

1шт.

27

B508406

SPRING

2шт.

254766A1

COVER

Cover, Consists Of 8,28

1шт.

28

NSS

NOT SOLD SEPARAT

Cover

1шт.

254767A1

HANDLE GRIP

Handle, Consists Of 14,29

1шт.

29

NSS

NOT SOLD SEPARAT

Handle

1шт.

254768A1

SERVICE KIT

Rubber, Consists Of 30,31

1шт.

30

NSS

NOT SOLD SEPARAT

Bumper

1шт.

31

3223480R1

RIVET

1шт.

254769A1

SERVICE KIT

Stop, Consists Of 8,15,32

1шт.

32

NSS

NOT SOLD SEPARAT

Stop

1шт.

254770A1

CABLE

Cable, Consists Of 8,16,33

1шт.

33

NSS

NOT SOLD SEPARAT

Cable

1шт.

254771A1

CABLE

Cable, Consists Of 4,8,16,34

1шт.

34

NSS

NOT SOLD SEPARAT

Cable

1шт.

254773A1

SET OF PARTS

Height Control, Consists Of 8,9,16,35,36

1шт.

35

NSS

NOT SOLD SEPARAT

Controller, Height Adjustment

1шт.

36

254774A1

GRIP

1шт.

254775A1

ISOLATOR

Isolator, Consists Of 8,15,18 - 22,30,31,37 - 40

1шт.

37

NSS

NOT SOLD SEPARAT

Isolator

1шт.

38

NSS

NOT SOLD SEPARAT

Tube

2шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

40

NSS

NOT SOLD SEPARAT

Bushing

2шт.

254776A1

REPAIR KIT

Service, Consists Of 8,17,18,21,22,23,30,31,41 - 46

1шт.

41

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

42

3134835R1

BUMPER

2шт.

43

3402565R1

WASHER

1шт.

44

NSS

NOT SOLD SEPARAT

Bolt

1шт.

45

NSS

NOT SOLD SEPARAT

Spacer

1шт.

46

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

47

NSS

NOT SOLD SEPARAT

Screw

2шт.

254777A1

SPRING

Spring, Consists Of 8,24,48,49,50

1шт.

48

NSS

NOT SOLD SEPARAT

Spring Assy

1шт.

49

NSS

NOT SOLD SEPARAT

Screw

2шт.

50

NSS

NOT SOLD SEPARAT

Fitting

4шт.

254778A1

SHOCK ABSORBER

Shock Absorber, Consists Of 51 - 53

1шт.

51

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

52

3402553R1

WASHER,M13

3шт.

53

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

254779A1

DIPPER

Swing Arm, Consists Of 1A,3,5,7,8,15,18 - 21,23,30,38,39,41,47,49,52,54 - 56

1шт.

54

NSS

NOT SOLD SEPARAT

Arm

1шт.

55

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

56

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

1шт.

254780A1

AIR COMPRESSOR

Compressor, Consists Of 3,5,8,56 - 60

1шт.

57

NSS

NOT SOLD SEPARAT

Compressor

1шт.

58

NSS

NOT SOLD SEPARAT

Plate

1шт.

59

NSS

NOT SOLD SEPARAT

Bracket

1шт.

60

60-4895T1

CLAMP

2шт.

254781A1

CONNECTOR, ELEC

CONNECTOR , Cable, Consists Of 3,5,8,61

1шт.

61

NSS

NOT SOLD SEPARAT

Cable

1шт.

254782A1

KIT

Hose Assy, Consists Of 3,5,8,60,62,63

1шт.

62

NSS

NOT SOLD SEPARAT

Hose

1шт.

63

NSS

NOT SOLD SEPARAT

Fitting

2шт.

254783A1

BELLOWS

Bellows, Consists Of 8,64

1шт.

64

NSS

NOT SOLD SEPARAT

Shroud

1шт.

254784A1

COVER ASSY

Cover, Consists Of 65,66

1шт.

65

NSS

NOT SOLD SEPARAT

Cover

1шт.

66

NSS

NOT SOLD SEPARAT

Rivet

2шт.

254785A1

SUSPENSION

Suspension, Lower, Includes 1A,3,5,7,8,23,38,41,46,47,49,56,67 - 70

1шт.

67

NSS

NOT SOLD SEPARAT

Housing, Lower

1шт.

254786A1

STOP

Stop, Includes 68 - 71

1шт.

68

NSS

NOT SOLD SEPARAT

Stop Assy

2шт.

69

60-4843T1

SCREW

2шт.

70

3223486R1

BUMPER

2шт.

71

NSS

NOT SOLD SEPARAT

Rivet

2шт.

72

254787A1

MOUNTING CLIP

The Following Parts Are Not Illustrated

1шт.

73c

300520A1

SHOCK ABSORBER

Shock Absorber

1шт.

74c

300523A1

SUSPENSION

Upper

1шт.

75c

300522A1

KIT

Swing Arm

1шт.

76c

300521A1

REPAIR KIT

Service

1шт.
