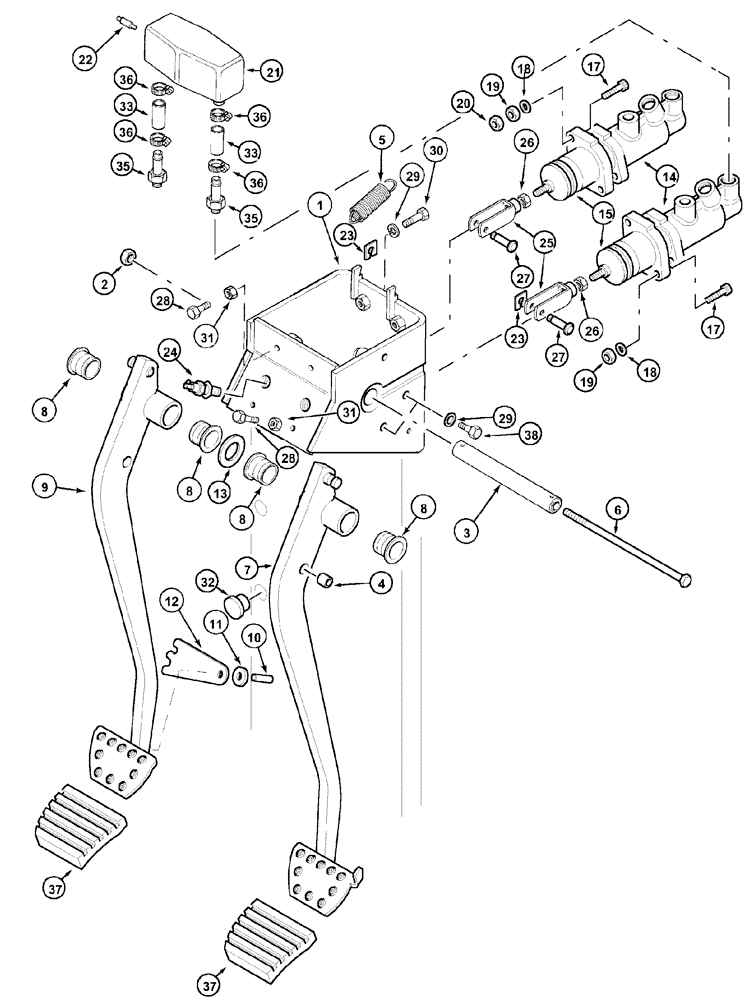

Запчасти Case IH MX110 (07-07) - BRAKE PEDALS AND MASTER CYLINDERS (07) - BRAKES

Without Booster

1шт.

282779A1

PEDAL ASSY.

Consists of 1 - 13

1шт.

284992A1

SPARE PART SET

Consists of 5,8

1шт.

1

NSS

NOT SOLD SEPARAT

Support Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Spacer

1шт.

4

NSS

NOT SOLD SEPARAT

Bushing

2шт.

5

NSS

NOT SOLD SEPARAT

Spring

2шт.

6

NSS

NOT SOLD SEPARAT

Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

Pedal, Right

1шт.

8

NSS

NOT SOLD SEPARAT

Bushing

4шт.

9

NSS

NOT SOLD SEPARAT

Pedal, Left

1шт.

10

NSS

NOT SOLD SEPARAT

Pin, Roll

1шт.

11

NSS

NOT SOLD SEPARAT

Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Lever

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

226301A1

MASTER CYLINDER

CYLINDER,MASTER , Includes 15,16

2шт.

15

277640A1

PROTECTIVE COVER

1шт.

16

1288229C1

KIT

Not Illustrated

1шт.

17

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

4шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

21

184627A1

RESERVOIR

1шт.

22

537518R1

SCREEN

1шт.

23

193182A1

CLIP

2шт.

24

177499A2

LIMIT SWITCH

Plunger

2шт.

25

236323A1

CLEVIS

2шт.

26

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

27

192869A1

CLEVIS PIN

2шт.

28

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

30

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

32

128209A1

PLUG

2шт.

33

414365C2

HOSE,7.94mm ID x 7620mm L, SAE 30R7

2шт.

35

251371A1

CONNECTOR, ELEC

CONNECTOR

2шт.

36

A171099

HOSE CLAMP,13.2mm - 15.4mm

4шт.

37

282803A1

PAD

2шт.

38

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.
