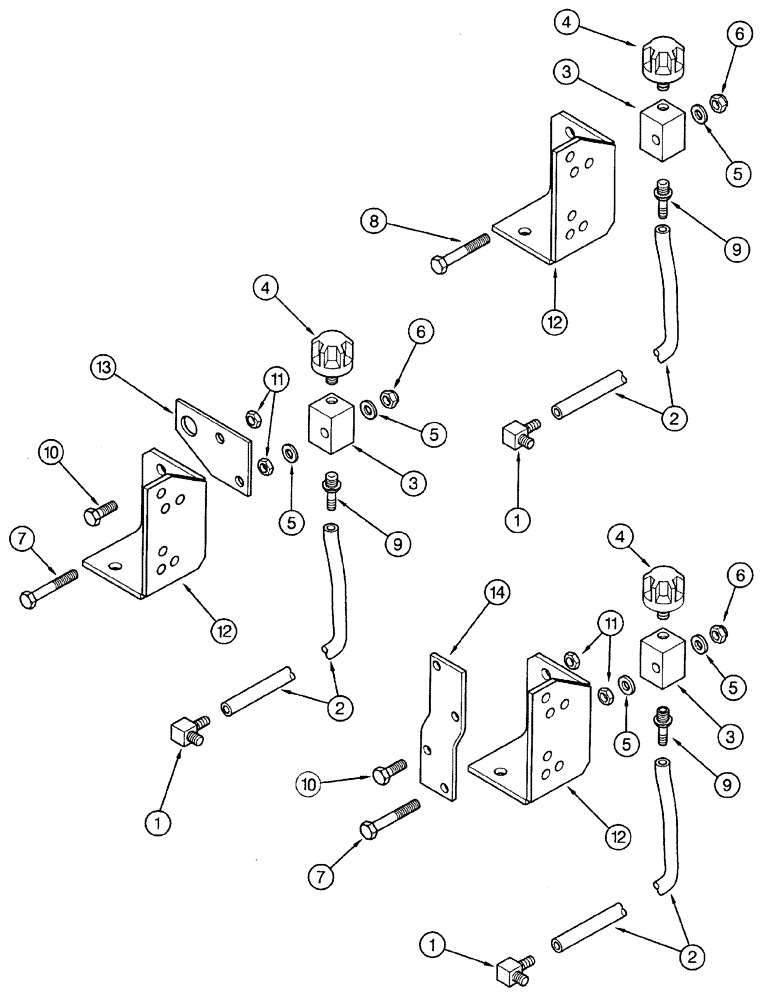

Запчасти Case IH MX110 (06-25) - BREATHER ASSY (06) - POWER TRAIN

1

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

1шт.

2

132908A1

HOSE,6.35mm ID x 275mm L, SAE 30R6 or 30R7

275 mm (10-7/8 in)

1шт.

3

132093A2

BLOCK

1шт.

4

1971726C1

BREATHER,1/4" - 18

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

With Trailer Brake

2шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Without Trailer Brake

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

Without Trailer Brake

1шт.

9

220-502

COUPLING, BREAK AWAY

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

With Trailer Brake

1шт.

11

825-1410

NUT,M10, Cl 8

With Trailer Brake

2шт.

12

1533276C1

SUPPORT

1шт.

13

1533270C1

SUPPORT

With Trailer Brake, Europe Only

1шт.

14

1533133C1

PLATE

With Pneumatic Trailer Brake, Europe Only

1шт.
