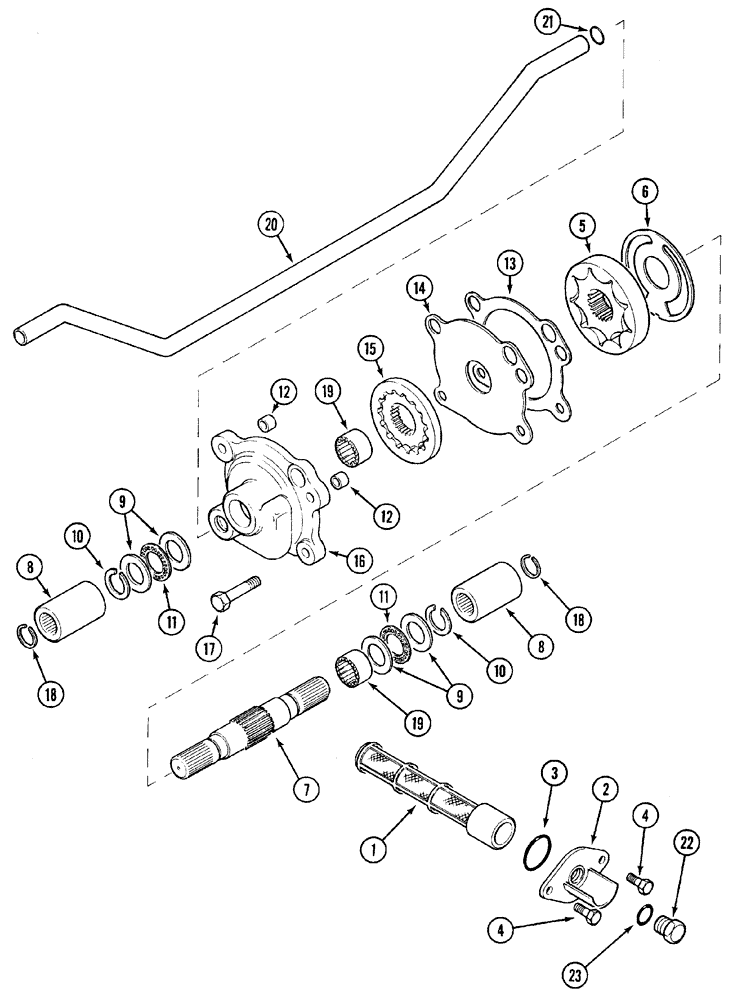

Запчасти Case IH MX110 (06-24) - OIL PUMP AND FILTER (06) - POWER TRAIN

1

A186988

SCREEN

1шт.

2

1995071C2

COVER ASSY

1шт.

3

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

4

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

5

115463A1

ROTOR

1шт.

6

233253A1

LARGE PLATE

PLATE, LARGE

1шт.

7

1341087C1

SHAFT

1шт.

8

1341089C1

SPLINED COUPLING

2шт.

9

A146625

WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk

4шт.

10

100-16112

SNAP RING,#112, Ext

2шт.

11

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

2шт.

12

A188710

BUSHING

SLEEVE

2шт.

13

A188103

SHIM,116mm ID x 138mm OD x 0.05mm Thk

Red

1шт.

13

A188104

SHIM,116mm ID x 140mm OD x 0.13mm Thk

Blue

1шт.

14

A188691

PLATE

1шт.

15

A188035

ROTOR

1шт.

16

1345684C1

HOUSING

1шт.

17

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

18

100-21106

SNAP RING,1.06", Int, #106

2шт.

19

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

2шт.

20

A188079

TUBE

1шт.

21

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

22

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

Plug, 5/8

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
