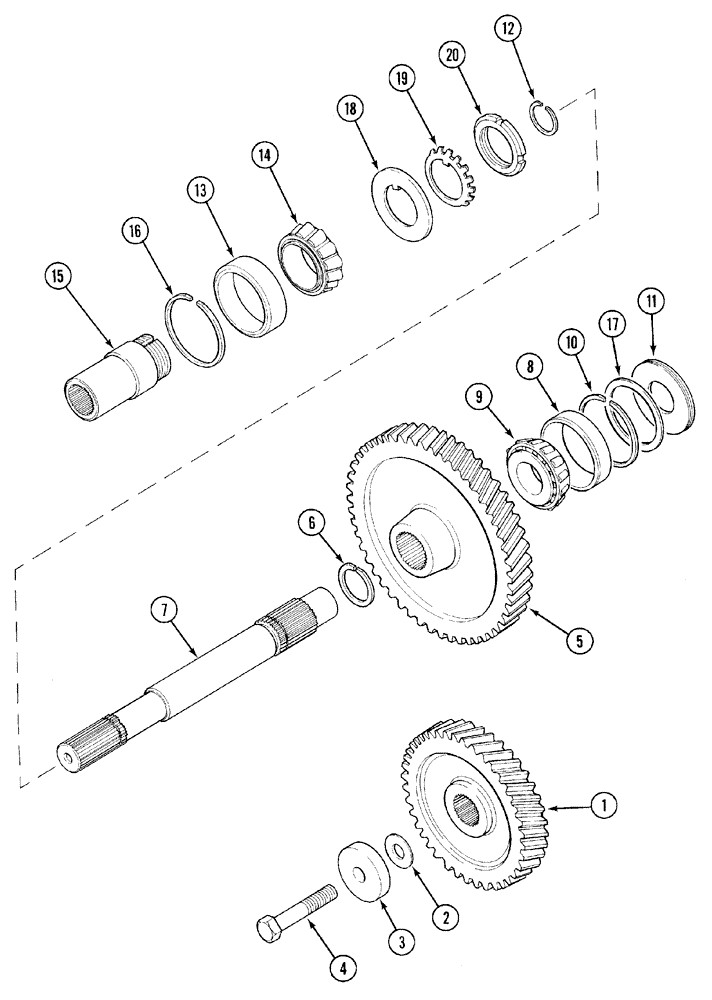

Запчасти Case IH MX110 (06-07) - TRANSMISSION - MAIN SHAFT - WITHOUT CREEP SPEED (06) - POWER TRAIN

1

328547A1

PINION

44T, 40 km/h

1шт.

1a

1995338C1

PINION

44T, 40 km/h

1шт.

A : Trans No. - JKA0127945

1шт.

1b

328547A1

PINION

44T, 40 km/h

1шт.

B : Trans No. - JKA0127946

1шт.

2

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

1шт.

2

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

1шт.

3

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

1шт.

4

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

5

244627A1

PINION

53T, 30 km/h

1шт.

5

1995339C1

PINION

47T, 40 km/h

1шт.

6

100-11162

SNAP RING,#162, Ext

1шт.

7

A188775

SHAFT

1шт.

8

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

1шт.

9

206214R91

CONE,36.49mm ID x 25.65mm W

1шт.

10

100-21300

SNAP RING,3.00", Int, #300

1шт.

11

1341140C1

DEFLECTOR

1шт.

12

800-5135

SNAP RING,M35, Ext, Hvy

1шт.

13

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

Use with 1345906C1

1шт.

13

625743C1

BEARING CUP,90mm OD x 18.5mm W

3-35/64, Use with 299339A1

1шт.

13

A60166

BEARING, CUP

Use with 299339A1, Optional

1шт.

14

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

Use with 1345906C1

1шт.

14

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16 in ID, Use with 299339A1

1шт.

14

A60167

ROLLER BEARING

Use with 299339A1

1шт.

15

1345906C1

SPLINED COUPLING,21T

dia 50,79 mm

1шт.

15

299339A1

SPLINED COUPLING,21T

dia 54,97 mm

1шт.

16

100-21325

SNAP RING,3.25", Int, #325

Use with 1345906C1

1шт.

16

800-2190

SNAP RING,M90, Int

Use with 299339A1

1шт.

17

A188877

SHIM,63mm ID x 75mm OD x 0.1mm Thk

1шт.

17

A188878

SHIM,63mm ID x 75mm OD x 0.36mm Thk

1шт.

17

A188879

SHIM,0.500mm Thk

1шт.

18

A186366

WASHER, THRUST

1шт.

19

55-2010

LOCK WASHER,Type TW-110

1шт.

20

54-2010

BEARING LOCK NUT,Bearing, 1.9685" Bore

1шт.
