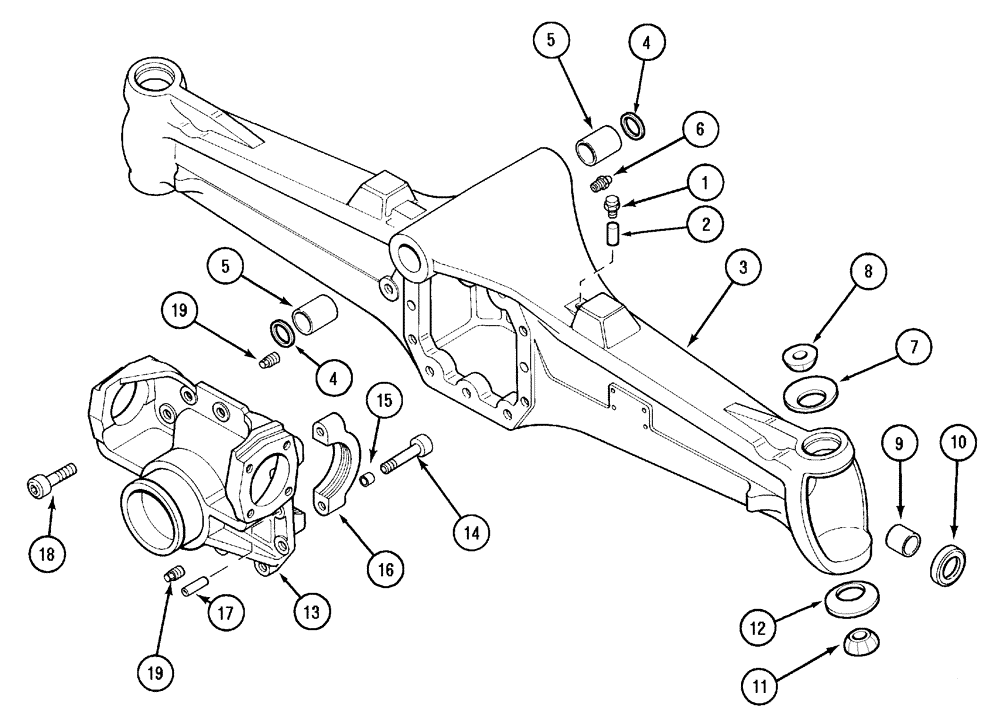

Запчасти Case IH MX110 (05-09) - FRONT AXLE HOUSING (05) - STEERING

*

Axle 20:19, 20:22

1шт.

1

1966149C2

BREATHER

1шт.

2

S302037

ADAPTER

1шт.

3

247513A1

HOUSING

1шт.

4

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

5

D149725

BUSHING,59.75 OD x 54mm L

Rear

2шт.

6

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

7

122262A1

BELLEVILLE WASHER

Upper

2шт.

8

247503A1

BUSHING,34mm ID x 56mm OD x 22mm L

2шт.

9

D142950

BUSHING

2шт.

10

247514A1

OIL SEAL,39mm ID x 60mm OD x 25mm Thk

2шт.

Per QA note 247513A1 Housing was Changed from 60mm sealing bore to 55mm bore. If 55mm Seal is Needed Please order 47476255.

1шт.

11

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

12

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

Lower

2шт.

*

247515A1

SUPPORT ASSY.

20:19 Axle, Differential, Consists of 13 - 16

1шт.

*

247558A1

SUPPORT

20:22 Axle, Differential, Consists of 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

15

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

Center

4шт.

16

NSS

NOT SOLD SEPARAT

Cap

2шт.

17

1966138C1

DOWEL

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

10шт.

19

110782A1

PLUG, DRAIN

2шт.
