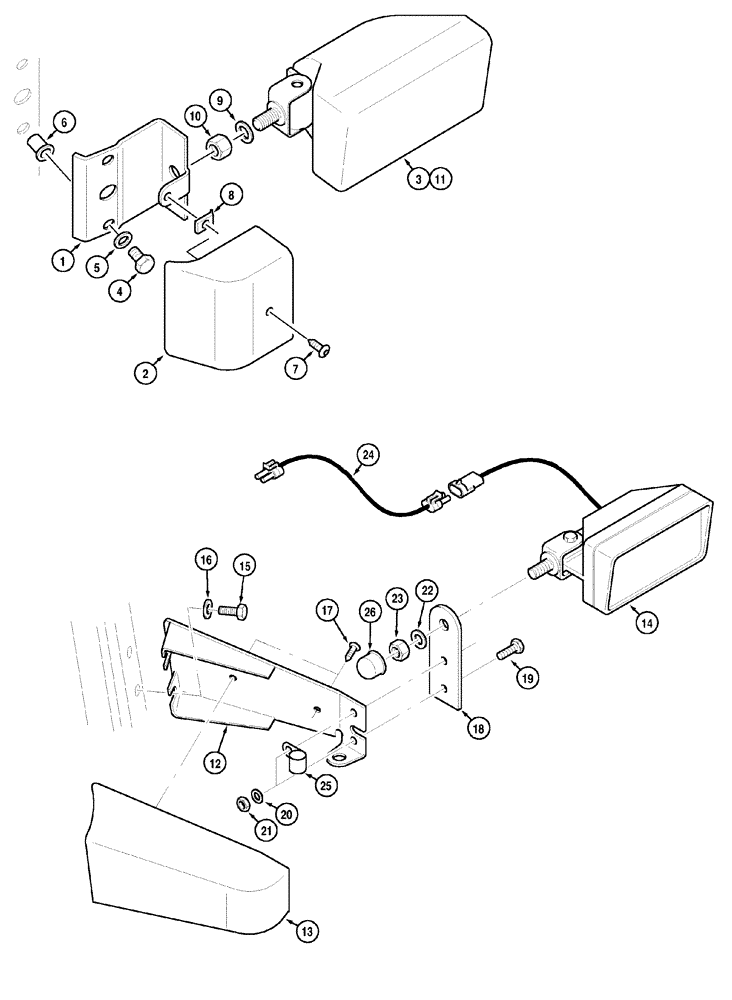

Запчасти Case IH MX100 (04-29) - WORK LIGHTS (04) - ELECTRICAL SYSTEMS

With Cab

1шт.

N.A. Only

1шт.

Standard

1шт.

1

222247A1

LARGE PLATE

PLATE, LARGE

1шт.

2

222248A2

COVER

1шт.

3

275334A1

LAMP, WORK

LIGHT, WORK , Left

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

F35448

RIVET,8mm OD x 18mm L

8 mm

4шт.

7

760-10419

SELF-TAP SCREW,Pan Hd, M4.8 x 19

2шт.

7

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

8

131-606

SPRING NUT,Tinn, U, #10

2шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

275333A1

LAMP, WORK

LIGHT, WORK , Right

1шт.

Optional

1шт.

12

238907A3

SUPPORT ASSY.

Left

1шт.

12

238909A3

SUPPORT ASSY.

Right

1шт.

13

238908A2

COVER

Left

1шт.

13

238910A1

COVER

Right

1шт.

14

275334A1

LAMP, WORK

LIGHT, WORK

2шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

4шт.

18

303685A1

BRACKET

2шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

20

892-11006

LOCK WASHER,M6

4шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

22

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

24

304332A1

HARNESS

Adaptor, Use with 238909A3

1шт.

25

516-2148

CLAMP,J, 1/4" Insul, 1/4" Bolt

Use with 238907A3

1шт.

26

3221520R1

CAP

2шт.
