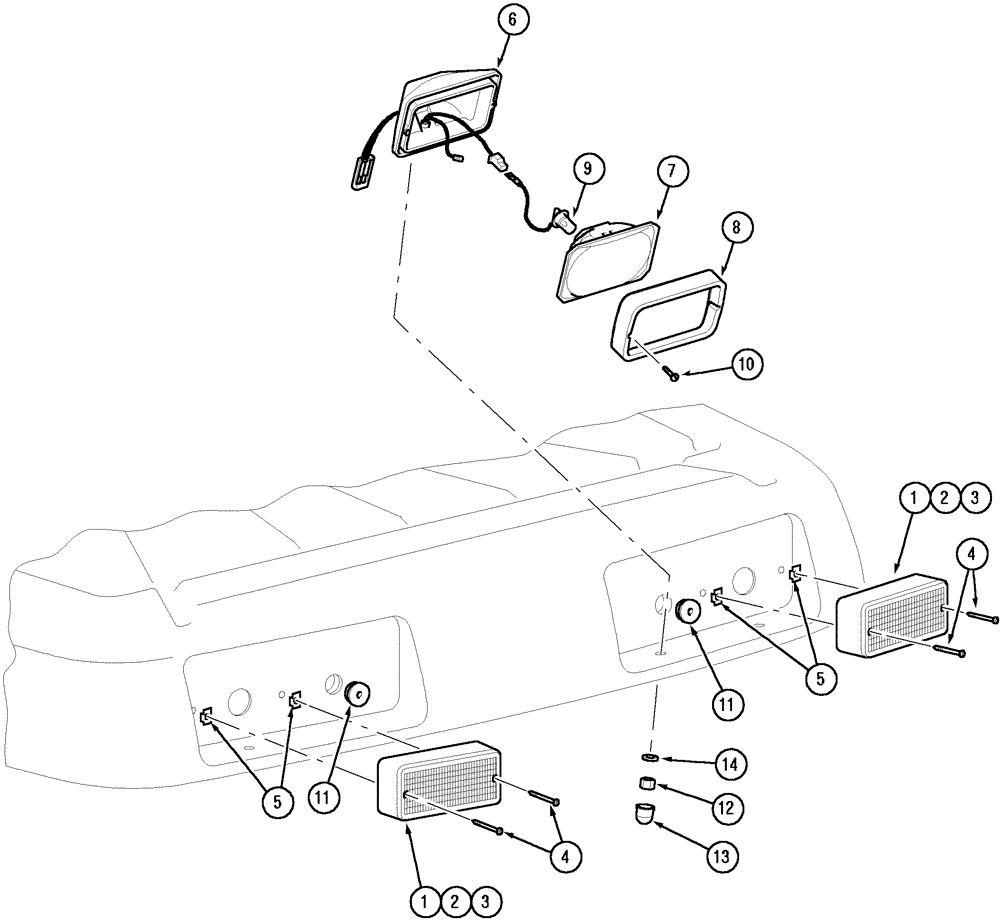

Запчасти Case IH MX100 (04-25) - FRONT WORKLIGHTS - CAB ROOF - N.A. ONLY (04) - ELECTRICAL SYSTEMS

92185C1

LIGHT ASSY.

Amber, Consists of 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

Base

1шт.

2

130883C1

LENS

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

1276059C1

SELF-TAP SCREW,Pan HD, #10 - 16 x 3"

4шт.

5

228004A1

NUT

4шт.

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Optional, Consists of 6 - 10

2шт.

6

NSS

NOT SOLD SEPARAT

Base

1шт.

7

276498A1

LENS

1шт.

8

1964806C1

BEZEL

1шт.

9

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

10

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

11

96901C1

GROMMET

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

3221520R1

CAP

2шт.

Without Worklights

1шт.

353-411

PLUG,Dome, 1.000" hole, Nylon

Not Illustrated

4шт.

353-425

PLUG,0.437 Hole OD

7/16 in, Not Illustrated

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
