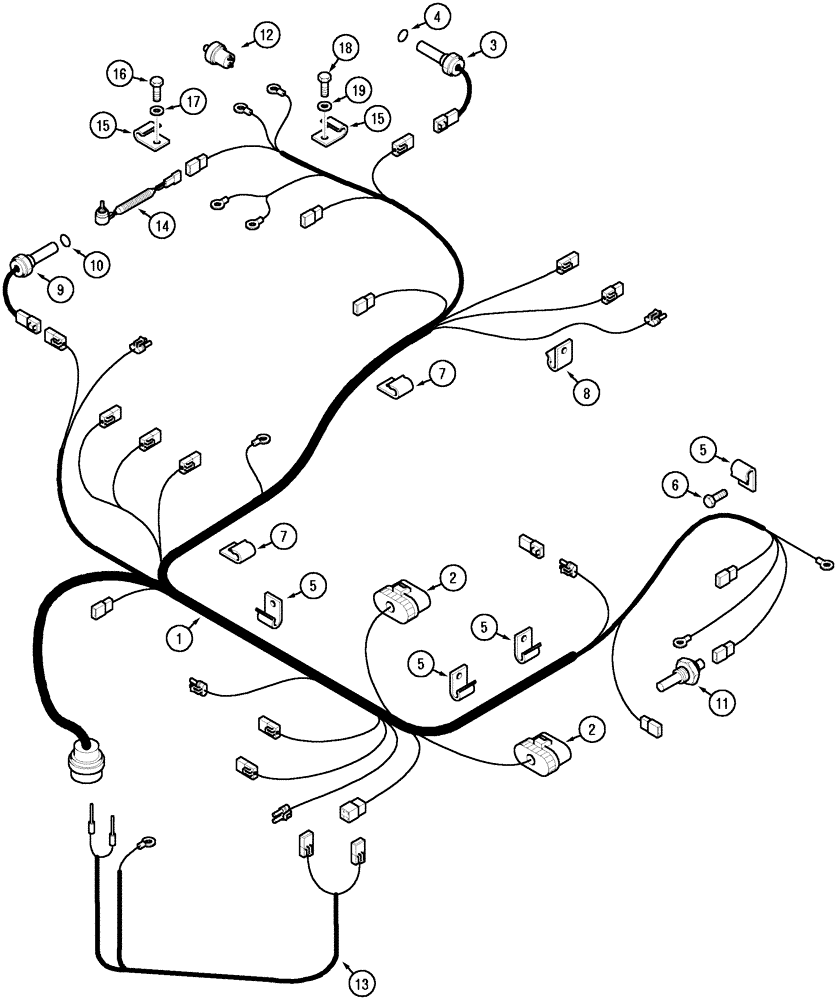

Запчасти Case IH MX100 (04-01) - HARNESS TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

280466A2

HARNESS

Europe Only, Includes 2, Not Illustrated

1шт.

1

328289A1

HARNESS

Used with, Oil Temperature, Sender, Europe Only, Includes 2

1шт.

1

245984A3

HARNESS

N.A. Only, Not Illustrated, Includes 2, Build Date 6-15-2000, Serial Range: -JJA0108301

1шт.

1

393298A1

HARNESS

Used with, Oil Temperature, Sender, N.A. Only, Not Illustrated, Includes 2, Build Date 6-15-2000, Start Serial: JJA0108301

1шт.

1

300542A3

HARNESS

Fourth Remote, Europe Only, Includes 2

1шт.

2

187308A1

CAP

2шт.

3

198957A1

SENSOR

Wheel Speed, Build Date 6-15-2000, Serial Range: -JJA0108301

1шт.

3

392215A1

SENSOR

Wheel Speed, Build Date 6-15-2000, Start Serial: JJA0108301

1шт.

4

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.

5

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

1/2 x 5/8

4шт.

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

Use with 5, Not Illustrated

4шт.

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Use with 5; Not Illustrated

4шт.

6

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

7

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

2шт.

8

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

(7.9 mm)

1шт.

9

220119A1

SENSOR

P.T.O., Speed

1шт.

10

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.

11

REF

INSTRUCTION

Sender, Oil Temperature, See Fig. 8-05

1шт.

12

A160237

SWITCH

Pressure, 2 Pin

1шт.

13

307399A1

HARNESS

Adaptor, Fourth Remote

1шт.

13

246905A2

HARNESS

Adaptor, Fourth Remote, Use with 300542A3,300541A3, Not Illustrated

1шт.

14

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Hitch, Position

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

16

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
