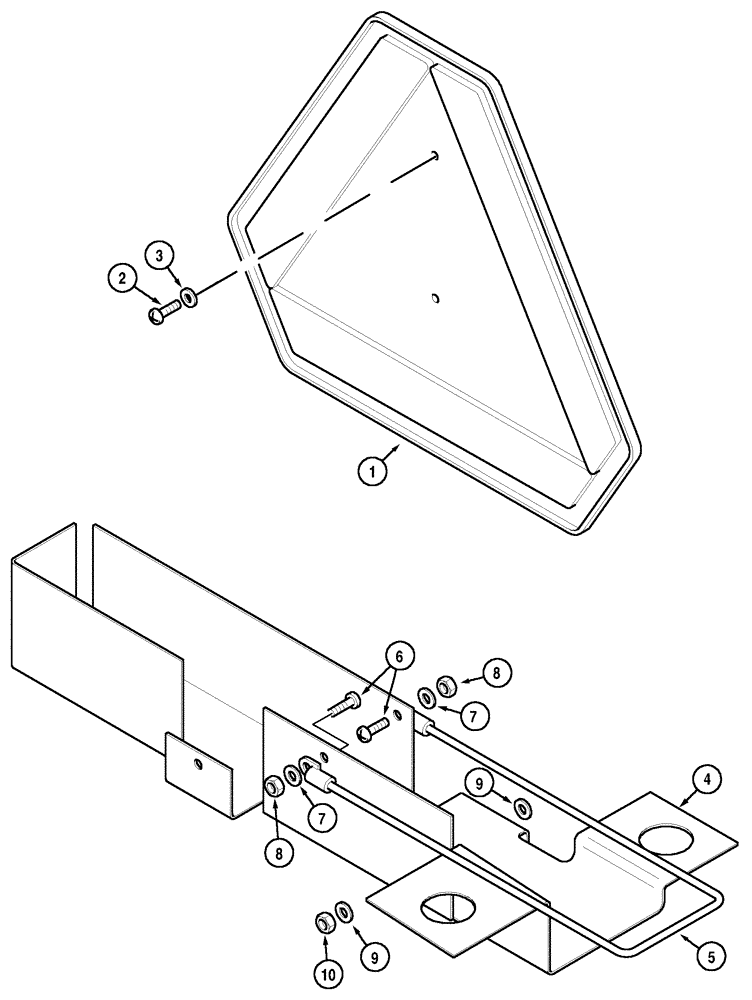

Запчасти Case IH MX100 (09-84) - WARNING TRIANGLE SLOW MOVING VEHICLE (09) - CHASSIS/ATTACHMENTS

1

133273A1

TRAFFIC SIGN

Scandinavian

1шт.

1

202013C2

TRAFFIC SIGN

N.A. Only

1шт.

1

311860A1

EMBLEM

Consists Of 311858A1,311859A1

1шт.

311859A1

TRAFFIC SIGN

1шт.

311858A1

DECAL

1шт.

2

760-14416

SELF-TAP SCREW,Pan Hd, M4.8 x 16

4 x 16 mm, Scandinavian

2шт.

2

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

N.A. Only

2шт.

3

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

278150A2

SUPPORT

Scandinavian, Consists Of 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

Support

1шт.

5

278155A3

STRAP

1шт.

6

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

8

832-10405

NUT,M5 x .8, Cl 8

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
