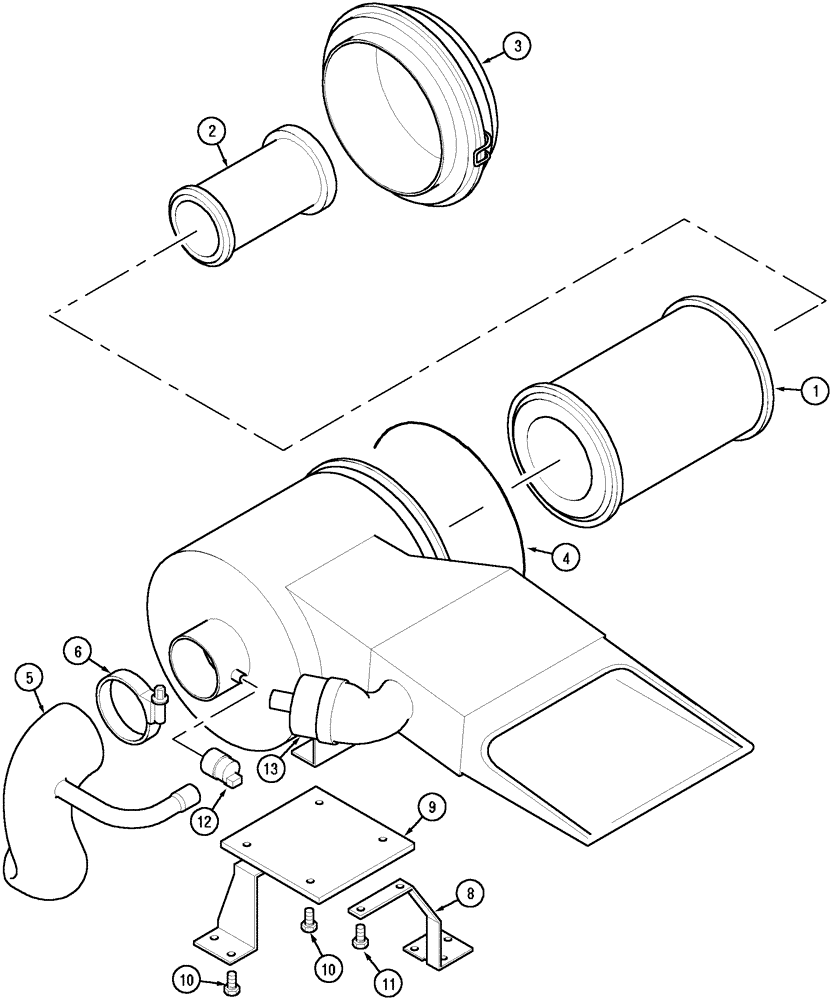

Запчасти Case IH MX100 (02-12) - AIR CLEANER - WITH ASPIRATOR (02) - ENGINE

141568A5

FILTER ASSY

Consists of 1 - 4,12,13

1шт.

1

187471A1

ELEMENT

1шт.

2

187472A1

AIR FILTER

1шт.

3

225267A1

COVER

1шт.

4

251827A1

O-RING

1шт.

5

139822A1

LARGE HOSE

HOSE,LARGE , Without Air Brake

1шт.

5

227993A2

LARGE HOSE

HOSE,LARGE , With Air Brake, Europe Only

1шт.

6

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

8

187473A1

SUPPORT ASSY.

1шт.

9

142223A1

SUPPORT ASSY.

1шт.

10

905-10020

BOLT,Hex Flg, M10 x 20mm

6шт.

11

905-10025

BOLT,Hex Flg, M10 x 25mm

2шт.

12

REF

INSTRUCTION

Switch, See Fig. 4-02, 4-03

1шт.

13

R37128

DUST VALVE

1шт.
