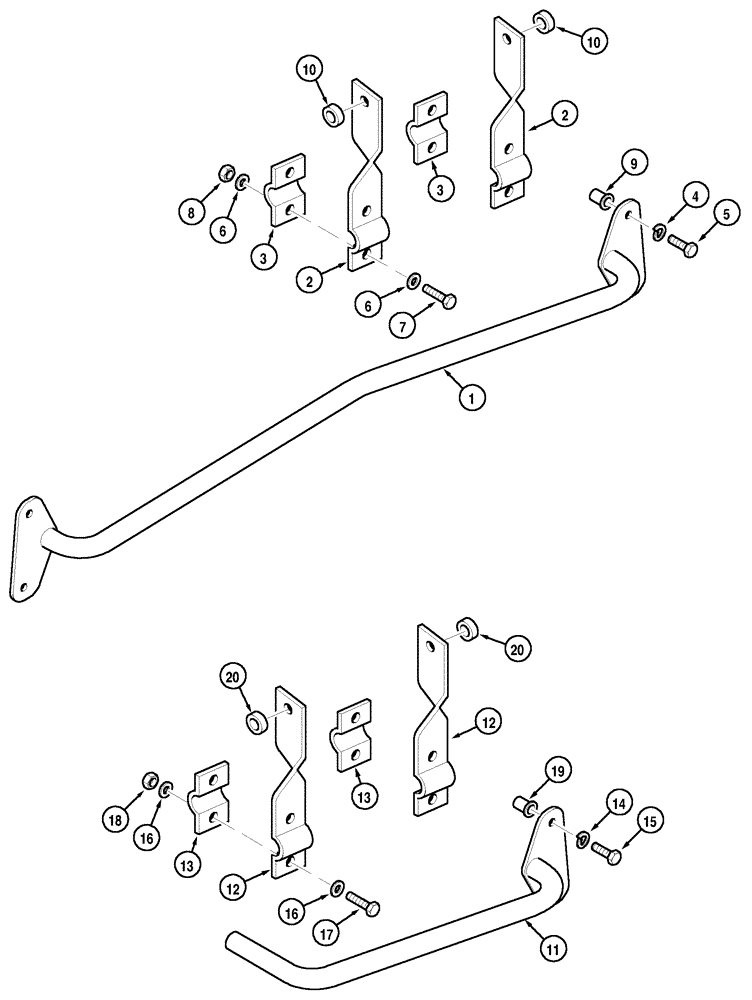

Запчасти Case IH MX100 (09-19) - MONITOR MOUNTING (09) - CHASSIS/ATTACHMENTS

N.A. Only

1шт.

1

225943A2

SUPPORT ASSY.

1шт.

2

280149A1

SUPPORT

2шт.

3

280150A1

SUPPORT

2шт.

4

892-12008

LOCK WASHER,M8.2

8 mm

4шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

6

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm

8шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

9

F35448

RIVET,8mm OD x 18mm L

8 mm

4шт.

10

293234A1

PLASTIC RING

Europe Only

2шт.

11

225944A2

SUPPORT ASSY.

2 Door

1шт.

12

280149A1

SUPPORT

2шт.

13

280150A1

SUPPORT

2шт.

14

892-12008

LOCK WASHER,M8.2

8 mm

2шт.

15

615-8020

BOLT,Hex, M8 x 20, 8.8, Full Thd

2шт.

16

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm

8шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

F35448

RIVET,8mm OD x 18mm L

8 mm

2шт.

20

293234A1

PLASTIC RING

2шт.
