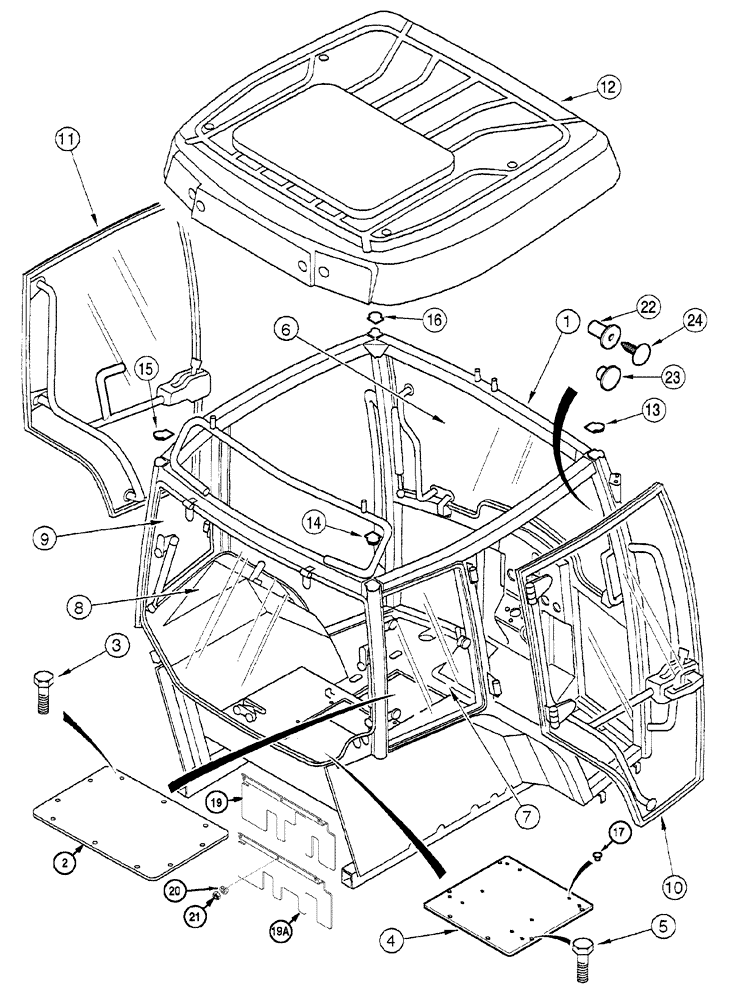

Запчасти Case IH MX100 (09-18) - CAB (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
182746A1
CAB
Europe Only, With Hatch
1шт.
199292A2
CAB
Europe Only, With Hatch, Opening Windshield
1шт.
199291A2
CAB
Europe Only, With Heater
1шт.
199293A2
CAB
Europe Only, Opening Windshield
1шт.
178361A1
CAB
N.A. Only, Standard
1шт.
308650A1
CAB
N.A. Only, Service, Complete
1шт.
308654A1
CAB
N.A. Only, Service
1шт.
225931A2
SUNSHADE
Not Illustrated
1шт.
780-14625
SELF-TAP SCREW,Hex Hd, M6.3 x 25
3 x 25 mm, Not Illustrated
2шт.
1
NSS
NOT SOLD SEPARAT
Frame Assy
1шт.
2
242924A2
PANEL ASSY.
1шт.
3
781-24820
SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm
10шт.
4
177602A3
FLAP
Serial No. JJE0957959, Build Date 10-9-1998
1шт.
4
322182A2
PANEL
Serial No. JJE0957960, Build Date 10-9-1998
1шт.
5
781-24830
SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 30mm
6шт.
6
REF
INSTRUCTION
Windshield, See Fig.(s) 09-22, 09-23
1шт.
7
192002A2
GLASS,CAB
Right, See Fig. 09-22
1шт.
8
REF
INSTRUCTION
Glass, Rear, See Fig. 09-24
1шт.
9
192001A2
GLASS,CAB
Left, See Fig. 09-22
1шт.
10
REF
INSTRUCTION
Door Assy, Right, Europe Only, See Fig. 09-25
1шт.
11
REF
INSTRUCTION
Door Assy, Left, See Fig. 09-26
1шт.
12
REF
INSTRUCTION
Roof Assy, With Hatch, See Fig. 09-31
1шт.
12
REF
INSTRUCTION
Roof Assy, Without Hatch, See Fig. 09-30
1шт.
13
233413A1
GROMMET
A Post, Right
1шт.
14
233416A1
GROMMET
C Post, Right
1шт.
15
233415A1
GROMMET
C Post, Left
1шт.
16
233414A1
GROMMET
A Post, Left
1шт.
19
253208A3
LARGE PLATE
PLATE, LARGE
1шт.
19b
356007A1
LARGE PLATE
PLATE, LARGE
1шт.
20
892-11008
LOCK WASHER,8mm ID
3шт.
21
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
3шт.
22
F35448
RIVET,8mm OD x 18mm L
8 mm
4шт.
23
292675A1
PLUG
N.A. Only, Use with 178361A1
2шт.
24
716493R2
PLUG
8.6 mm dia, N.A. Only, Not Illustrated, Use with 178361A1,257520A1
4шт.
25
3401908R3
PLUG
19 mm, A Post, Drain, Not Illustrated
2шт.
26
353-3
PLUG,Cap, .302" OD
Europe Only 322182A1, Use with
6шт.
26
353-62
PLUG,Cap, .302" OD
Optional
6шт.
Выбрано товаров: 38
