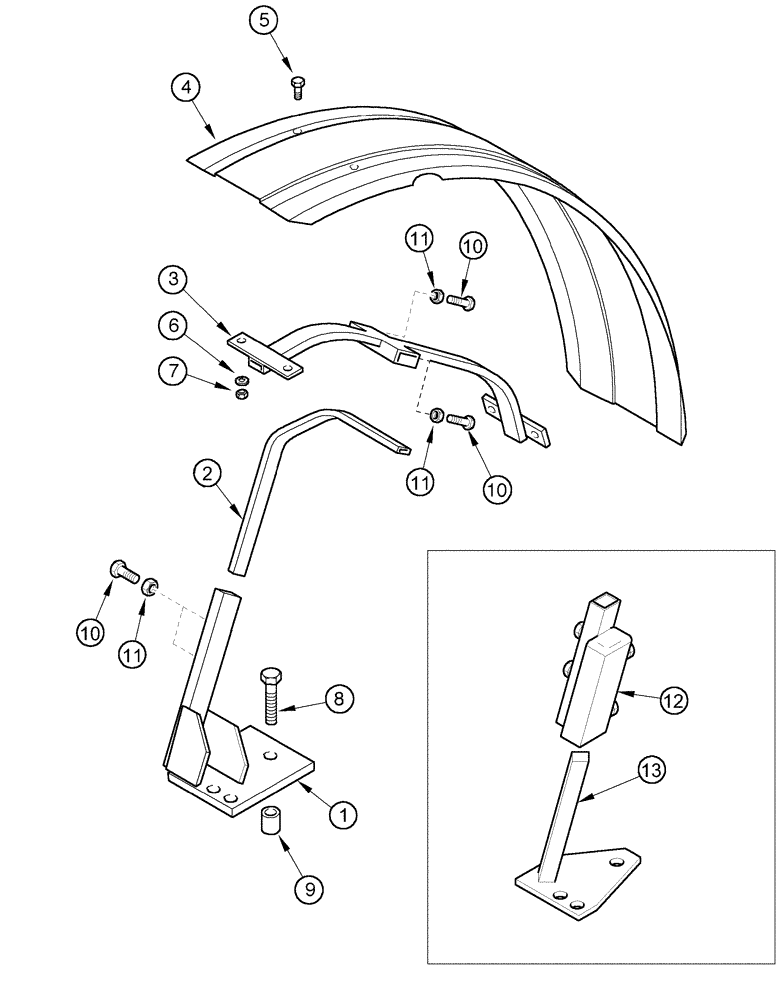

Запчасти Case IH MX100 (09-10) - FENDERS FRONT WHEEL (09) - CHASSIS/ATTACHMENTS

Motoseal

1шт.

1

348982A2

SUPPORT

380/440, Left

1шт.

1

348983A2

SUPPORT

380/440, Right

1шт.

1

348991A2

SUPPORT

480/600, Left

1шт.

1

348992A2

SUPPORT

480/600, Right

1шт.

2

348984A1

SUPPORT

380/440

2шт.

2

348990A1

SUPPORT

480/600

2шт.

3

348985A1

SUPPORT

2шт.

4

136425A2

FENDER ASSY.

440/1450, Left

1шт.

4

136426A2

FENDER ASSY.

440/1450, Right

1шт.

4

348986A1

MUD DEFLECTOR

550/1500, Left

1шт.

4

348987A1

MUD DEFLECTOR

550/1500, Right

1шт.

4

348988A1

MUD DEFLECTOR

600/1500, Left

1шт.

4

348989A1

MUD DEFLECTOR

600/1500, Right

1шт.

5

611-6016

CARRIAGE BOLT,M6 x 16mm, Class 4.6

8шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

8

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

Use with 348991/2A2

6шт.

8

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

Use with 348982/3A2

6шт.

9

337429A1

SPACER

76.75 mm, Use with 348982/3A2

6шт.

9

363641A1

SPACER

100 mm, Use with 348991/2A2

6шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

11

829-1412

NUT,M12, Cl 10.9

6шт.

12

387847A1

SUPPORT ASSY.

Left

1шт.

12

387848A1

SUPPORT ASSY.

Right

1шт.

13

388414A1

SUPPORT

Left

1шт.

13

388415A1

SUPPORT

Right

1шт.
