Запчасти Case IH MX100 (08-34) - INTERIOR REMOTE FLOW CONTROLS (08) - HYDRAULICS

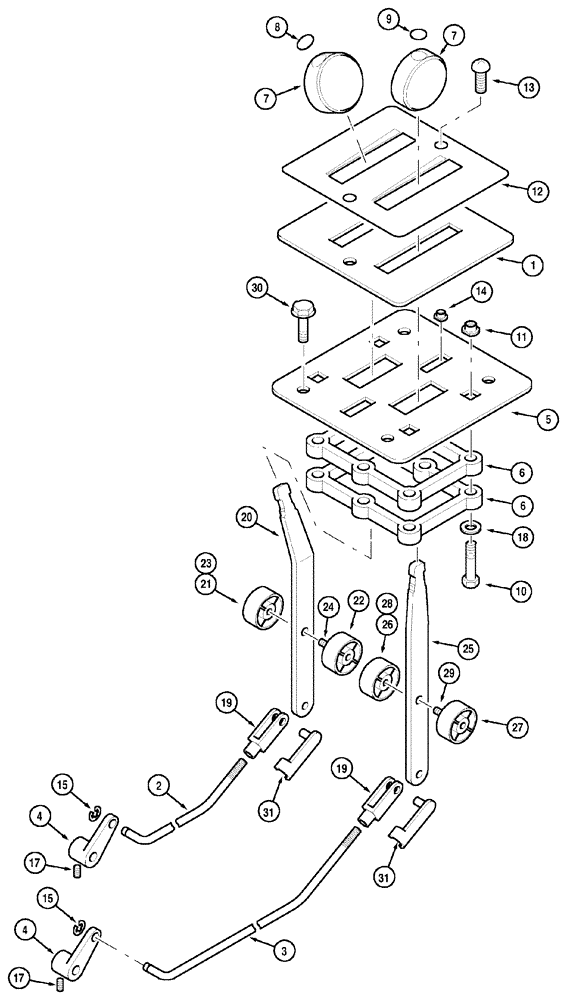

Схема запчастей Case IH MX100 - (08-34) - INTERIOR REMOTE FLOW CONTROLS (08) - HYDRAULICS
15
7
8
18
20
27
24
19
11
17
5
13
31
26
14
2
1
21
3
6
12
4
7
22
29
28
23
31
9
10
4
25
17
30
19
15
6

Артикул

Название

Примечание

Количество

JJE0958941, Build Date 2-1-1999, (Transmission S/N JKA0123556)

1шт.

1

313039A1

COVER

1шт.

2

327420A1

ROD

Serial No. JJE0958941, Build Date 2-1-1999 - JJE0959655, Build Date 4-16-1999 (Transmission S/N JKA0123556 - JKA0125239) First Remote

1шт.

2

355488A1

ROD

Serial No. JJE0959656, Build Date 4-16-1999 (Transmission S/N JKA0123814 -), First Remote

1шт.

3

327421A1

ROD

Serial No. JJE0958941, Build Date 2-1-1999 - JJE0959655, Build Date 4-16-1999 (Transmission S/N JKA0123556 - JKA0125239), Second Remote

1шт.

3

355489A1

ROD

Serial No. JJE0959656, Build Date 4-16-1999 (Transmission S/N JKA0123814 -), Second Remote

1шт.

4

313058A2

LEVER

2шт.

5

313038A1

PLATE

1шт.

6

T102996

BEARING HOUSING

Bearing

2шт.

1974838C1

BUTTON

No.1, Consists of 7,8

1шт.

7

NSS

NOT SOLD SEPARAT

Knob

1шт.

8

1974797C1

DECAL

1шт.

1974839C1

BUTTON

No.2, Consists of 7,9

1шт.

9

1974798C1

DECAL

1шт.

10

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

6шт.

11

1999424C1

NUT

M6

6шт.

12

313872A1

DECAL

See Page(s) 9-253

1шт.

13

840-1550

SCREW,Pan, M5 x 50mm, Cl 4.8

2шт.

14

1999423C1

NUT

M5

2шт.

15

800-436

CIRCLIP,M6

2шт.

17

878-2056

SET SCREW,M5 x 6mm

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

19

713-126

CLEVIS

M6 x 24

2шт.

314439A3

LEVER ASSY.

First Remote, Consists of 20 - 24

1шт.

20

313041A3

LEVER

1шт.

21

1531280C1

ROLLER

1шт.

22

1531277C1

ROLLER

1шт.

23

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

24

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

314440A3

LEVER ASSY.

Second Remote, Consists of 25 - 29

1шт.

25

313040A3

LEVER

1шт.

26

1531280C1

ROLLER

1шт.

27

1531277C1

ROLLER

1шт.

28

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

29

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

30

781-24620

SELF-TAP SCREW,Hex Flg Hd, M6 x 20

4шт.

31

3234936R1

CLEVIS PIN

2шт.

Выбрано товаров: 37
