Запчасти Case IH MX100 (08-14) - HYDRAULIC PIPING FRONT P.T.O. (08) - HYDRAULICS

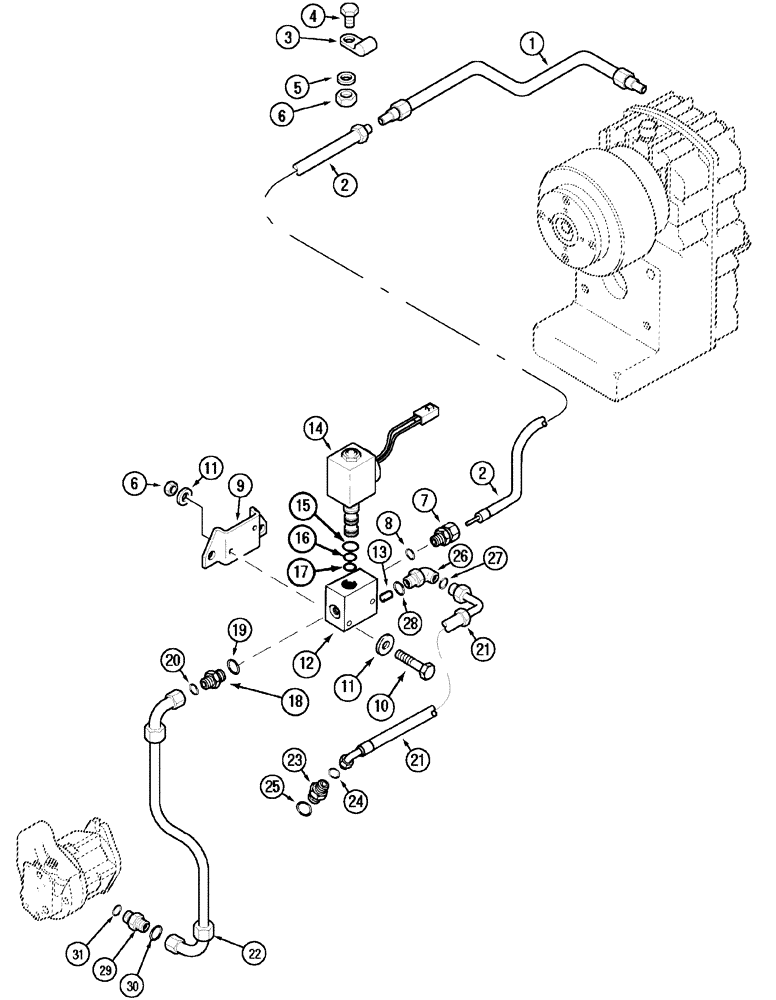

Схема запчастей Case IH MX100 - (08-14) - HYDRAULIC PIPING FRONT P.T.O. (08) - HYDRAULICS
3
20
21
26
9
14
13
21
31
27
8
1
6
11
28
4
12
25
5
30
24
7
11
2
18
16
6
10
15
2
17
23
29
22
19

Артикул

Название

Примечание

Количество

Europe Only

1шт.

1

231524A1

PIPE,6 mm OD

1шт.

2

244107A1

HOSE

1шт.

3

515-2148

CLAMP,3/16", Insul, 1/4" Bolt

1шт.

4

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

5

892-11006

LOCK WASHER,M6

1шт.

6

829-1306

NUT,M6, Cl 10

3шт.

7

1533078C1

UNION

1шт.

8

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

9

243158A1

SUPPORT

1шт.

10

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

1534318C2

VALVE

Includes 13,14

1шт.

13

1530702C1

SET SCREW

Orifice

1шт.

14

118872A1

VALVE

Includes 15 - 17

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

17

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

18

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 19,20

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

244113A2

HOSE,10.00 mm ID x 930.00 mm, SAE 100R3 Class 5

1шт.

21

275259A2

HOSE

1000 mm

1шт.

22

244122A2

HOSE,10.00 mm ID x 491.00 mm, ISO 12151

Includes 20,30

1шт.

23

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 24, 25

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes 27,28

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 30,31

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 33
