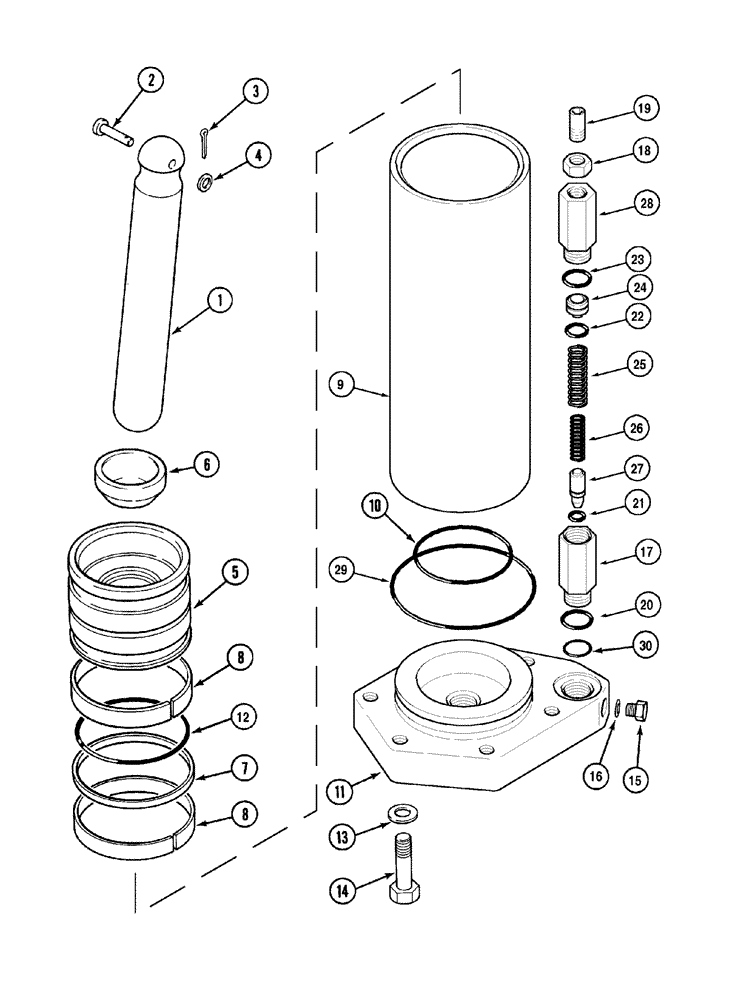

Запчасти Case IH MX100 (08-09) - HITCH CYLINDER ASSEMBLY (08) - HYDRAULICS

1

220862A1

PISTON ROD

1шт.

2

A186816

PIN

1шт.

3

732-2512

COTTER PIN,M2.5 x 12

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

221493A1

PISTON ASSY.

Consists of 5,6

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

NSS

NOT SOLD SEPARAT

Seat

1шт.

7

A186826

SEAL

1шт.

8

A186324

RING,Split, 98.64mm ID x 105mm OD x 15.88mm Thk

2шт.

9

221491A1

SLEEVE CYLINDER

1шт.

10

638-65095

O-RING,5.3mm Thk x 95mm ID, Cl 6, 90 Duro

1шт.

11

220929A1

CAP

1шт.

12

239-5342

O-RING,Square, 0.188" Thk x 3.625" ID, -342

1шт.

13

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

14

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

6шт.

15

220064A1

PLUG,M14 x 1.5, ORB

Incl. 16

1шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

221470A1

VALVE

Consists of 17 - 28

1шт.

17

NSS

NOT SOLD SEPARAT

Body

1шт.

18

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

19

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

1шт.

20

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

21

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

NSS

NOT SOLD SEPARAT

Piston

1шт.

25

NSS

NOT SOLD SEPARAT

Spring, Outer

1шт.

26

NSS

NOT SOLD SEPARAT

Spring, Inner

1шт.

27

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

28

NSS

NOT SOLD SEPARAT

Cap

1шт.

29

638-54122

O-RING,3.55mm Thk x 122mm ID, Cl 5, 75 Duro

1шт.

30

238-5029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 5, 75 Duro

1шт.
